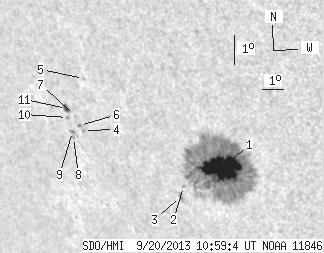

SDO HMI 2013-09-20 10:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.47 | 363.11 | 45.09 | 275.40 | -17.63 | 58.51 | -42.93 | 120.80 | 0.7578 | 609.0 | 221.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-20 10:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.75 | 345.73 | 41.94 | 260.94 | -17.66 | 58.81 | -42.63 | 120.99 | 0.7551 | 916.1 | 254.4 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -18.46 | 56.89 | -44.55 | 120.86 | 0.7774 | 382.0 | 286.0 | |
| 0.00 | 2.39 | 0.00 | 1.89 | -18.81 | 56.64 | -44.80 | 121.13 | 0.7815 | -594.0 | -550.3 | |
| 0.00 | 1.42 | 0.00 | 1.19 | -17.01 | 52.77 | -48.67 | 117.14 | 0.8092 | -677.0 | -624.5 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -15.27 | 53.34 | -48.10 | 115.39 | 0.7970 | -430.0 | -439.9 | |
| 0.53 | 1.60 | 0.45 | 1.34 | -16.86 | 52.63 | -48.81 | 116.91 | 0.8099 | -726.3 | -625.8 | |
| 0.00 | 0.89 | 0.00 | 0.74 | -16.54 | 52.50 | -48.94 | 116.49 | 0.8098 | -544.0 | -446.0 | |
| 0.00 | 1.24 | 0.00 | 1.06 | -17.29 | 52.18 | -49.26 | 117.21 | 0.8156 | -344.0 | -343.7 | |
| 0.44 | 2.04 | 0.38 | 1.73 | -17.09 | 52.21 | -49.23 | 116.99 | 0.8146 | -577.2 | -459.6 | |
| 0.00 | 1.33 | 0.00 | 1.13 | -16.65 | 52.12 | -49.31 | 116.44 | 0.8136 | -248.0 | -283.7 | |
| 2.75 | 4.70 | 2.32 | 3.97 | -16.35 | 52.18 | -49.26 | 116.13 | 0.8120 | -506.2 | -422.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
