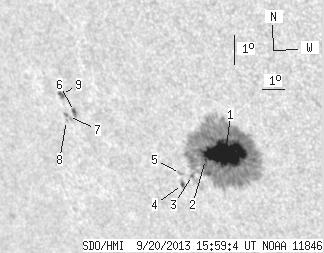

SDO HMI 2013-09-20 15:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.26 | 390.55 | 47.36 | 283.08 | -17.67 | 58.48 | -40.21 | 122.46 | 0.7311 | 801.2 | 255.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-20 15:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.15 | 372.73 | 42.60 | 269.11 | -17.66 | 58.78 | -39.91 | 122.62 | 0.7281 | 1038.8 | 285.0 | |
| 0.71 | -1.00 | 0.52 | -1.00 | -17.93 | 57.87 | -40.81 | 122.38 | 0.7387 | 317.5 | 999999 | |
| 0.53 | -1.00 | 0.40 | -1.00 | -18.52 | 57.15 | -41.53 | 122.65 | 0.7490 | 267.5 | 999999 | |
| 1.06 | 3.28 | 0.80 | 2.47 | -18.87 | 56.62 | -42.07 | 122.73 | 0.7560 | -683.4 | -513.8 | |
| 0.00 | 2.57 | 0.00 | 1.93 | -18.50 | 56.65 | -42.04 | 122.32 | 0.7538 | 192.0 | 124.0 | |
| 1.77 | 3.90 | 1.41 | 3.11 | -16.84 | 52.48 | -46.20 | 118.12 | 0.7856 | -729.2 | -608.2 | |
| 0.00 | 3.28 | 0.00 | 2.63 | -17.03 | 52.15 | -46.54 | 118.18 | 0.7896 | -730.0 | -500.2 | |
| 0.00 | 0.89 | 0.00 | 0.71 | -17.18 | 52.01 | -46.68 | 118.28 | 0.7915 | -384.0 | -335.3 | |
| 2.04 | 3.90 | 1.63 | 3.12 | -16.33 | 52.05 | -46.64 | 117.31 | 0.7875 | -703.7 | -527.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
