SDO HMI 2013-09-20 18:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.69 | 378.49 | 51.43 | 267.54 | -17.64 | 58.51 | -38.52 | 123.52 | 0.7139 | 946.9 | 279.5 | |
|
previous
or next observation for the same group /

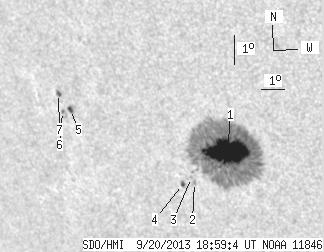

back to the solar disc SDO HMI 2013-09-20 18:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.02 | 361.49 | 47.10 | 254.60 | -17.65 | 58.76 | -38.27 | 123.68 | 0.7115 | 1176.2 | 307.3 | |
| 0.00 | 1.86 | 0.00 | 1.35 | -18.81 | 57.10 | -39.93 | 123.99 | 0.7351 | -150.0 | -72.6 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -18.65 | 57.02 | -40.01 | 123.75 | 0.7349 | 221.0 | 115.9 | |
| 1.42 | 2.83 | 1.04 | 2.08 | -18.92 | 56.56 | -40.47 | 123.78 | 0.7409 | -651.2 | -496.9 | |
| 2.21 | 4.69 | 1.71 | 3.63 | -16.82 | 52.37 | -44.66 | 118.89 | 0.7707 | -839.6 | -492.7 | |
| 0.53 | 3.90 | 0.41 | 3.04 | -16.92 | 51.98 | -45.05 | 118.80 | 0.7750 | -642.2 | -490.9 | |
| 1.51 | 2.83 | 1.17 | 2.20 | -16.33 | 51.98 | -45.05 | 118.11 | 0.7723 | -777.1 | -578.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
