SDO HMI 2013-09-20 19:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.14 | 389.55 | 48.53 | 273.24 | -17.64 | 58.49 | -37.99 | 123.87 | 0.7087 | 990.4 | 289.9 | |
|
previous
or next observation for the same group /

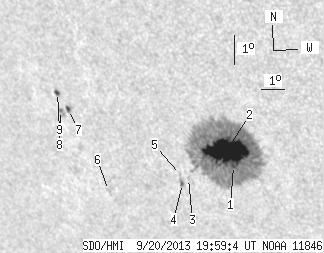

back to the solar disc SDO HMI 2013-09-20 19:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 371.67 | 0.68 | 259.71 | -18.12 | 58.90 | -37.58 | 124.72 | 0.7075 | 596.7 | 322.5 | |
| 63.30 | -1.00 | 44.14 | -1.00 | -17.64 | 58.74 | -37.74 | 124.02 | 0.7061 | 1212.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.83 | -18.71 | 56.91 | -39.57 | 124.10 | 0.7310 | 247.0 | 153.2 | |
| 0.80 | 3.36 | 0.58 | 2.45 | -18.90 | 56.60 | -39.87 | 124.13 | 0.7351 | -664.2 | -490.7 | |
| 0.00 | 1.15 | 0.00 | 0.84 | -18.61 | 56.61 | -39.87 | 123.78 | 0.7333 | 83.0 | 13.5 | |
| 0.00 | 1.51 | 0.00 | 1.16 | -19.42 | 53.28 | -43.20 | 122.73 | 0.7697 | -566.0 | -564.1 | |
| 1.77 | 3.10 | 1.36 | 2.38 | -16.84 | 52.34 | -44.14 | 119.18 | 0.7657 | -835.3 | -676.2 | |
| 0.71 | 4.78 | 0.55 | 3.69 | -16.90 | 51.97 | -44.51 | 119.06 | 0.7697 | -606.8 | -483.5 | |
| 1.59 | 2.83 | 1.22 | 2.18 | -16.31 | 52.01 | -44.47 | 118.39 | 0.7665 | -659.4 | -540.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
