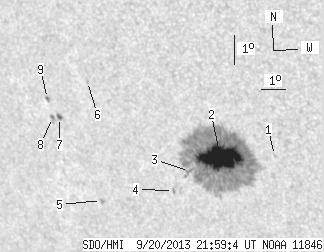

SDO HMI 2013-09-20 21:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.44 | 387.82 | 47.22 | 267.70 | -17.65 | 58.50 | -36.88 | 124.65 | 0.6973 | 940.1 | 297.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-20 21:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.71 | -17.42 | 60.89 | -34.48 | 126.13 | 0.6711 | -459.0 | -361.4 | |
| 64.90 | 373.31 | 44.58 | 256.92 | -17.65 | 58.74 | -36.64 | 124.81 | 0.6949 | 1216.7 | 331.2 | |
| 0.53 | -2.00 | 0.37 | -2.00 | -18.22 | 57.36 | -38.01 | 124.55 | 0.7125 | 428.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.14 | -18.92 | 56.52 | -38.85 | 124.82 | 0.7252 | -690.0 | -561.4 | |
| 0.00 | 1.77 | 0.00 | 1.34 | -19.52 | 53.31 | -42.06 | 123.51 | 0.7595 | -722.0 | -665.7 | |
| 0.00 | 1.24 | 0.00 | 0.90 | -15.57 | 53.85 | -41.52 | 119.10 | 0.7332 | -494.0 | -426.5 | |
| 1.77 | 3.28 | 1.33 | 2.47 | -16.87 | 52.31 | -43.06 | 119.81 | 0.7554 | -853.7 | -613.6 | |
| 0.71 | 3.36 | 0.54 | 2.55 | -16.90 | 52.00 | -43.37 | 119.67 | 0.7586 | -710.2 | -526.7 | |
| 0.53 | 2.21 | 0.40 | 1.67 | -16.28 | 51.96 | -43.42 | 118.91 | 0.7559 | -651.8 | -624.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
