SDO HMI 2013-09-21 01:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.15 | 401.13 | 49.77 | 269.33 | -17.66 | 58.35 | -34.82 | 126.19 | 0.6762 | 945.0 | 313.8 | |
|
previous
or next observation for the same group /

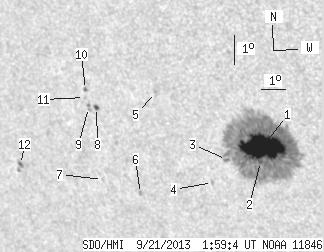

back to the solar disc SDO HMI 2013-09-21 01:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.65 | 383.58 | 45.81 | 256.36 | -17.63 | 58.71 | -34.46 | 126.40 | 0.6723 | 1239.2 | 344.5 | |
| 1.24 | -1.00 | 0.83 | -1.00 | -18.14 | 58.52 | -34.65 | 126.88 | 0.6778 | 589.9 | 999999 | |
| 0.71 | -1.00 | 0.48 | -1.00 | -18.17 | 57.19 | -35.98 | 125.92 | 0.6916 | 413.6 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.99 | -18.99 | 56.43 | -36.74 | 126.37 | 0.7048 | -664.0 | -568.6 | |
| 0.00 | 2.13 | 0.00 | 1.48 | -16.15 | 54.85 | -38.32 | 121.79 | 0.7030 | -741.0 | -558.6 | |
| 0.00 | 2.04 | 0.00 | 1.49 | -19.61 | 53.32 | -39.85 | 124.98 | 0.7390 | -734.0 | -651.8 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -19.27 | 51.82 | -41.35 | 123.64 | 0.7514 | -395.0 | -427.4 | |
| 1.51 | 3.01 | 1.09 | 2.19 | -16.85 | 52.27 | -40.90 | 121.03 | 0.7337 | -815.9 | -652.6 | |
| 0.00 | 1.51 | 0.00 | 1.10 | -16.88 | 51.92 | -41.25 | 120.87 | 0.7373 | -531.0 | -459.6 | |
| 0.71 | 1.86 | 0.51 | 1.35 | -16.29 | 51.95 | -41.22 | 120.17 | 0.7338 | -786.0 | -616.3 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -16.56 | 51.84 | -41.33 | 120.43 | 0.7364 | -547.0 | -444.7 | |
| 1.33 | 4.43 | 1.05 | 3.52 | -19.08 | 48.29 | -44.88 | 121.40 | 0.7835 | 649.1 | 512.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
