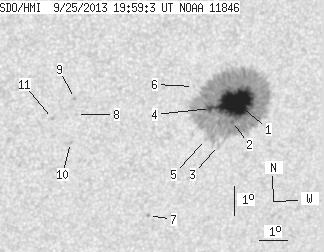

SDO HMI 2013-09-25 19:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.84 | 393.71 | 39.55 | 243.58 | -17.98 | 57.99 | 27.50 | 227.08 | 0.6020 | 1042.0 | 392.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-25 19:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.13 | 383.28 | 37.26 | 237.24 | -17.94 | 58.11 | 27.62 | 227.26 | 0.6028 | 1339.5 | 414.3 | |
| 0.97 | -1.00 | 0.61 | -1.00 | -18.57 | 58.11 | 27.62 | 226.47 | 0.6085 | 538.1 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.44 | -19.35 | 57.74 | 27.26 | 225.13 | 0.6120 | -184.0 | -134.6 | |
| 2.74 | -1.00 | 1.68 | -1.00 | -18.09 | 57.24 | 26.76 | 226.18 | 0.5954 | 1117.2 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -19.12 | 57.24 | 26.75 | 224.89 | 0.6050 | 420.0 | 240.3 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -17.32 | 56.52 | 26.04 | 226.39 | 0.5809 | 614.0 | 502.7 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -21.59 | 55.65 | 25.16 | 220.26 | 0.6141 | -706.0 | -613.5 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -18.03 | 52.57 | 22.09 | 220.84 | 0.5490 | -612.0 | -423.5 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -17.50 | 52.44 | 21.95 | 221.34 | 0.5420 | -830.0 | -706.3 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -18.96 | 52.49 | 22.01 | 219.60 | 0.5582 | -502.0 | -525.4 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -18.13 | 51.77 | 21.29 | 219.68 | 0.5424 | -767.0 | -618.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
