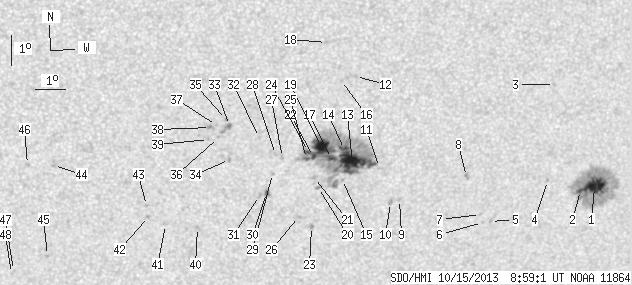

SDO HMI 2013-10-15 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.06 | 419.67 | 53.45 | 247.64 | -21.90 | 150.22 | 17.57 | 210.74 | 0.5436 | 184.0 | 57.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-15 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.66 | 132.75 | 12.17 | 82.20 | -22.71 | 156.46 | 23.81 | 218.40 | 0.6017 | 1166.8 | 356.5 | |
| 2.10 | -1.00 | 1.29 | -1.00 | -22.82 | 155.99 | 23.33 | 217.73 | 0.5988 | 935.2 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -19.22 | 154.51 | 21.85 | 220.16 | 0.5471 | 715.0 | 559.9 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -22.43 | 154.76 | 22.10 | 216.70 | 0.5842 | 636.0 | 470.3 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -23.76 | 152.99 | 20.33 | 213.09 | 0.5847 | 739.0 | 639.8 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -23.78 | 152.72 | 20.06 | 212.72 | 0.5828 | 556.0 | 420.0 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -23.50 | 152.60 | 19.94 | 212.86 | 0.5788 | 546.0 | 415.7 | |
| 0.00 | 2.01 | 0.00 | 1.20 | -22.18 | 151.92 | 19.26 | 213.34 | 0.5581 | 785.0 | 724.4 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -22.89 | 149.73 | 17.08 | 209.59 | 0.5500 | 666.0 | 531.5 | |
| 0.00 | 2.45 | 0.00 | 1.45 | -22.98 | 149.44 | 16.78 | 209.08 | 0.5490 | 846.0 | 700.2 | |
| 0.00 | 2.45 | 0.00 | 1.43 | -21.78 | 148.92 | 16.26 | 209.50 | 0.5302 | 72.0 | -42.3 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -18.72 | 147.81 | 15.15 | 211.00 | 0.4827 | -601.0 | -512.6 | |
| 36.35 | 221.80 | 21.07 | 127.93 | -21.61 | 148.00 | 15.34 | 208.26 | 0.5215 | 883.0 | -90.8 | |
| 5.33 | -13.00 | 3.07 | -13.00 | -21.13 | 147.68 | 15.03 | 208.24 | 0.5131 | -872.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -22.15 | 147.72 | 15.07 | 207.33 | 0.5265 | 477.0 | 436.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -18.83 | 147.36 | 14.71 | 210.12 | 0.4808 | -678.0 | -632.0 | |
| 4.72 | -13.00 | 2.72 | -13.00 | -21.42 | 147.28 | 14.62 | 207.32 | 0.5141 | 445.5 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -17.57 | 146.77 | 14.11 | 210.52 | 0.4596 | -751.0 | -536.0 | |
| 15.47 | -13.00 | 8.87 | -13.00 | -21.01 | 146.91 | 14.25 | 207.12 | 0.5061 | -1070.6 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.37 | -22.39 | 146.95 | 14.29 | 205.90 | 0.5246 | -232.0 | -256.5 | |
| 0.00 | 2.53 | 0.00 | 1.47 | -22.05 | 146.78 | 14.12 | 205.94 | 0.5190 | 200.0 | 168.9 | |
| 2.10 | -13.00 | 1.21 | -13.00 | -21.34 | 146.68 | 14.02 | 206.43 | 0.5089 | 702.2 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.18 | -23.72 | 146.86 | 14.20 | 204.60 | 0.5415 | 847.0 | 678.7 | |
| 1.14 | -13.00 | 0.65 | -13.00 | -21.17 | 146.49 | 13.84 | 206.30 | 0.5054 | -411.5 | 999999 | |
| 1.57 | -13.00 | 0.90 | -13.00 | -21.40 | 146.45 | 13.79 | 206.01 | 0.5082 | 685.6 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -23.37 | 146.38 | 13.72 | 204.17 | 0.5339 | 649.0 | 539.0 | |
| 0.00 | 2.01 | 0.00 | 1.15 | -21.35 | 145.65 | 13.00 | 204.75 | 0.5023 | 705.0 | 542.0 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -21.24 | 145.41 | 12.76 | 204.44 | 0.4993 | 834.0 | 664.6 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -21.88 | 145.37 | 12.71 | 203.82 | 0.5078 | 775.0 | 654.2 | |
| 1.75 | 3.23 | 1.01 | 1.87 | -22.52 | 145.23 | 12.57 | 203.05 | 0.5157 | -845.4 | -655.8 | |
| 0.00 | 2.01 | 0.00 | 1.16 | -22.62 | 145.01 | 12.35 | 202.61 | 0.5157 | -780.0 | -644.1 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -20.66 | 144.84 | 12.18 | 203.98 | 0.4878 | -749.0 | -553.7 | |
| 0.87 | 6.82 | 0.49 | 3.84 | -20.23 | 143.83 | 11.17 | 202.56 | 0.4758 | -916.4 | -733.9 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -21.37 | 143.91 | 11.26 | 201.76 | 0.4923 | -841.0 | -728.2 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -20.03 | 143.72 | 11.06 | 202.53 | 0.4723 | -924.0 | -773.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -20.63 | 143.50 | 10.84 | 201.64 | 0.4794 | -811.0 | -662.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -20.22 | 143.41 | 10.75 | 201.80 | 0.4732 | -845.0 | -622.0 | |
| 0.00 | 3.23 | 0.00 | 1.82 | -20.29 | 143.22 | 10.56 | 201.40 | 0.4730 | -1069.0 | -833.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -20.69 | 143.18 | 10.52 | 201.01 | 0.4785 | -672.0 | -565.8 | |
| 0.00 | 1.92 | 0.00 | 1.11 | -23.66 | 143.04 | 10.38 | 198.59 | 0.5199 | -885.0 | -589.6 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -23.54 | 141.97 | 9.31 | 196.87 | 0.5133 | -665.0 | -577.8 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -23.26 | 141.39 | 8.73 | 196.04 | 0.5067 | -881.0 | -644.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -22.88 | 141.30 | 8.64 | 196.11 | 0.5009 | -765.0 | -652.8 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -21.48 | 138.20 | 5.55 | 191.10 | 0.4690 | -757.0 | -650.9 | |
| 0.00 | 1.49 | 0.00 | 0.86 | -24.55 | 138.13 | 5.47 | 189.74 | 0.5148 | -573.0 | -561.4 | |
| 0.00 | 1.57 | 0.00 | 0.88 | -21.43 | 137.36 | 4.71 | 189.47 | 0.4660 | -687.0 | -536.8 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -25.06 | 137.03 | 4.37 | 187.66 | 0.5198 | -530.0 | -639.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -25.17 | 136.96 | 4.31 | 187.52 | 0.5213 | -552.0 | -473.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
