SDO HMI 2013-10-15 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.89 | 406.46 | 48.09 | 242.11 | -21.88 | 150.10 | 19.09 | 212.92 | 0.5548 | 146.8 | 76.2 | |
|
previous
or next observation for the same group /

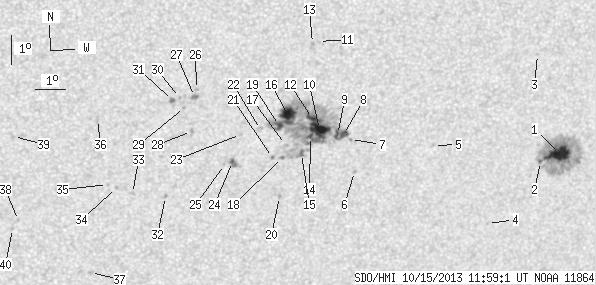

back to the solar disc SDO HMI 2013-10-15 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.19 | 123.95 | 13.92 | 77.81 | -22.66 | 156.48 | 25.47 | 220.31 | 0.6157 | 1129.3 | 343.1 | |
| 0.87 | -1.00 | 0.55 | -1.00 | -22.90 | 155.85 | 24.84 | 219.35 | 0.6125 | 775.5 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -19.29 | 155.11 | 24.10 | 222.81 | 0.5692 | 682.0 | 539.6 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -24.96 | 154.36 | 23.34 | 215.47 | 0.6214 | 442.0 | 391.1 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -22.19 | 151.96 | 20.95 | 215.54 | 0.5717 | 823.0 | 691.1 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -22.97 | 149.36 | 18.35 | 211.28 | 0.5602 | 771.0 | 678.9 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -21.88 | 149.08 | 18.06 | 212.01 | 0.5448 | -410.0 | -358.0 | |
| 4.89 | 235.24 | 2.88 | 136.95 | -21.70 | 148.82 | 17.80 | 211.83 | 0.5407 | 862.1 | 5.2 | |
| 3.76 | -8.00 | 2.21 | -8.00 | -21.69 | 148.61 | 17.60 | 211.55 | 0.5390 | 790.1 | 999999 | |
| 17.56 | -8.00 | 10.25 | -8.00 | -21.50 | 147.98 | 16.97 | 210.83 | 0.5319 | 1010.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -18.57 | 147.63 | 16.61 | 213.53 | 0.4926 | -817.0 | -660.7 | |
| 3.76 | -8.00 | 2.18 | -8.00 | -21.13 | 147.70 | 16.69 | 210.81 | 0.5251 | -767.5 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -18.63 | 147.44 | 16.42 | 213.16 | 0.4918 | -961.0 | -765.3 | |
| 1.57 | -8.00 | 0.92 | -8.00 | -21.73 | 147.71 | 16.69 | 210.19 | 0.5327 | 755.2 | 999999 | |
| 1.75 | -8.00 | 1.02 | -8.00 | -22.30 | 147.47 | 16.46 | 209.28 | 0.5380 | 675.6 | 999999 | |
| 17.21 | -8.00 | 9.94 | -8.00 | -21.00 | 146.89 | 15.87 | 209.70 | 0.5174 | -1028.4 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -21.97 | 146.90 | 15.88 | 208.74 | 0.5298 | 305.0 | 281.6 | |
| 0.52 | -8.00 | 0.31 | -8.00 | -22.41 | 146.85 | 15.83 | 208.24 | 0.5351 | -592.2 | 999999 | |
| 3.14 | -8.00 | 1.82 | -8.00 | -21.33 | 146.62 | 15.61 | 208.97 | 0.5196 | 643.4 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -23.75 | 146.91 | 15.89 | 207.09 | 0.5524 | 817.0 | 718.1 | |
| 0.35 | 1.31 | 0.20 | 0.77 | -22.40 | 146.51 | 15.49 | 207.75 | 0.5326 | -625.2 | -527.5 | |
| 0.00 | 2.88 | 0.00 | 1.67 | -21.44 | 146.00 | 14.99 | 207.89 | 0.5167 | 465.0 | 382.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -21.59 | 145.35 | 14.34 | 206.72 | 0.5142 | 642.0 | 556.1 | |
| 1.40 | 6.29 | 0.81 | 3.66 | -22.50 | 145.18 | 14.17 | 205.62 | 0.5250 | -891.1 | -617.0 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -22.59 | 144.92 | 13.91 | 205.13 | 0.5247 | -700.0 | -510.5 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -20.05 | 143.77 | 12.75 | 205.54 | 0.4829 | -897.0 | -756.9 | |
| 0.87 | 3.23 | 0.49 | 1.83 | -20.28 | 143.72 | 12.70 | 205.24 | 0.4857 | -929.3 | -709.0 | |
| 0.00 | 2.80 | 0.00 | 1.60 | -21.45 | 143.72 | 12.71 | 204.18 | 0.5017 | -921.0 | -731.7 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -20.64 | 143.42 | 12.41 | 204.40 | 0.4888 | -706.0 | -556.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -20.30 | 143.23 | 12.22 | 204.37 | 0.4829 | -783.0 | -738.0 | |
| 1.05 | 2.36 | 0.59 | 1.33 | -20.39 | 143.01 | 12.00 | 203.90 | 0.4828 | -943.2 | -695.4 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -23.64 | 143.06 | 12.04 | 201.32 | 0.5278 | -818.0 | -671.1 | |
| 0.00 | 1.83 | 0.00 | 1.06 | -23.51 | 141.95 | 10.93 | 199.61 | 0.5203 | -776.0 | -598.9 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -23.29 | 141.40 | 10.38 | 198.85 | 0.5146 | -812.0 | -654.6 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -23.19 | 141.09 | 10.08 | 198.40 | 0.5116 | -615.0 | -501.1 | |
| 0.00 | 2.71 | 0.00 | 1.53 | -20.98 | 140.61 | 9.60 | 199.10 | 0.4776 | -793.0 | -631.2 | |
| 0.00 | 1.48 | 0.00 | 0.88 | -26.24 | 140.77 | 9.75 | 196.01 | 0.5530 | 787.0 | 621.2 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -24.37 | 138.23 | 7.22 | 192.83 | 0.5171 | -663.0 | -578.5 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -21.50 | 137.92 | 6.90 | 193.71 | 0.4737 | -421.0 | -470.2 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -24.65 | 138.05 | 7.03 | 192.39 | 0.5205 | -673.0 | -540.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
