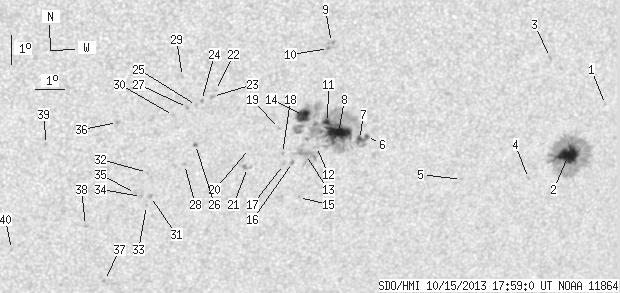

SDO HMI 2013-10-15 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.03 | 392.56 | 38.54 | 239.95 | -21.84 | 150.47 | 22.76 | 217.70 | 0.5845 | 133.7 | 95.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-15 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.39 | -20.99 | 157.52 | 29.81 | 226.63 | 0.6407 | 635.0 | 531.6 | |
| 21.04 | 127.71 | 13.61 | 82.71 | -22.61 | 156.51 | 28.80 | 223.75 | 0.6454 | 1114.9 | 321.6 | |
| 0.00 | 1.66 | 0.00 | 1.03 | -19.31 | 155.18 | 27.47 | 226.45 | 0.6029 | 803.0 | 666.9 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -23.36 | 155.21 | 27.50 | 221.62 | 0.6404 | 741.0 | 584.8 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -23.27 | 152.76 | 25.04 | 219.16 | 0.6180 | 675.0 | 563.8 | |
| 1.13 | 200.60 | 0.68 | 119.26 | -21.66 | 149.12 | 21.41 | 216.72 | 0.5697 | 791.6 | 5.4 | |
| 2.36 | -6.00 | 1.42 | -6.00 | -21.75 | 148.89 | 21.18 | 216.33 | 0.5687 | 864.4 | 999999 | |
| 21.91 | -6.00 | 13.07 | -6.00 | -21.48 | 148.13 | 20.42 | 215.64 | 0.5593 | 1050.1 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.57 | -18.48 | 147.50 | 19.78 | 218.35 | 0.5195 | -844.0 | -698.3 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -18.67 | 147.42 | 19.71 | 218.00 | 0.5210 | -773.0 | -731.9 | |
| 3.67 | -6.00 | 2.17 | -6.00 | -21.13 | 147.71 | 19.99 | 215.47 | 0.5517 | -845.0 | 999999 | |
| 0.00 | 3.49 | 0.00 | 2.08 | -21.93 | 147.44 | 19.73 | 214.24 | 0.5587 | 607.0 | 453.8 | |
| 0.00 | 20.78 | 0.00 | 12.39 | -22.19 | 147.10 | 19.39 | 213.51 | 0.5589 | 162.0 | 304.7 | |
| 12.40 | -6.00 | 7.29 | -6.00 | -20.87 | 146.85 | 19.14 | 214.62 | 0.5415 | -1124.4 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -23.65 | 147.08 | 19.37 | 211.97 | 0.5759 | 772.0 | 633.9 | |
| 0.00 | 1.48 | 0.00 | 0.88 | -22.44 | 146.69 | 18.98 | 212.69 | 0.5587 | -717.0 | -602.5 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -22.50 | 146.39 | 18.68 | 212.23 | 0.5571 | -734.0 | -579.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -22.12 | 146.31 | 18.60 | 212.50 | 0.5519 | -494.0 | -429.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -21.27 | 146.09 | 18.38 | 213.11 | 0.5401 | 646.0 | 471.7 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -21.92 | 145.16 | 17.45 | 211.11 | 0.5406 | 647.0 | 485.3 | |
| 0.00 | 3.58 | 0.00 | 2.12 | -22.56 | 145.18 | 17.46 | 210.48 | 0.5486 | -520.0 | -603.2 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -19.93 | 143.80 | 16.09 | 211.16 | 0.5054 | -586.0 | -489.7 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -20.13 | 143.72 | 16.01 | 210.83 | 0.5073 | -870.0 | -705.6 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -20.25 | 143.37 | 15.65 | 210.15 | 0.5061 | -620.0 | -657.8 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -20.41 | 143.22 | 15.51 | 209.74 | 0.5071 | -757.0 | -573.2 | |
| 0.52 | 1.66 | 0.30 | 0.96 | -21.72 | 143.32 | 15.61 | 208.58 | 0.5247 | -763.8 | -617.8 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -20.47 | 142.93 | 15.21 | 209.22 | 0.5057 | -827.0 | -727.8 | |
| 0.00 | 1.48 | 0.00 | 0.87 | -22.39 | 143.03 | 15.32 | 207.50 | 0.5312 | -678.0 | -501.5 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -19.43 | 142.66 | 14.95 | 209.88 | 0.4903 | -799.0 | -630.0 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -20.72 | 142.49 | 14.78 | 208.26 | 0.5058 | -774.0 | -595.8 | |
| 0.00 | 1.75 | 0.00 | 1.02 | -23.45 | 142.01 | 14.29 | 204.99 | 0.5383 | -709.0 | -626.0 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -22.62 | 141.82 | 14.11 | 205.41 | 0.5263 | -601.0 | -564.2 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -23.75 | 141.91 | 14.19 | 204.58 | 0.5417 | -667.0 | -557.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -23.44 | 141.70 | 13.99 | 204.53 | 0.5363 | -837.0 | -650.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -23.33 | 141.49 | 13.78 | 204.30 | 0.5336 | -657.0 | -512.1 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -20.91 | 140.66 | 12.95 | 205.08 | 0.4959 | -858.0 | -678.2 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -26.34 | 140.77 | 13.06 | 200.92 | 0.5694 | 780.0 | 640.8 | |
| 0.00 | 1.48 | 0.00 | 0.87 | -24.39 | 139.92 | 12.21 | 201.02 | 0.5389 | -498.0 | -509.7 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -21.59 | 138.39 | 10.68 | 200.58 | 0.4920 | -854.0 | -705.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -25.17 | 137.51 | 9.80 | 196.69 | 0.5383 | -735.0 | -623.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
