SDO HMI 2013-10-15 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.62 | 344.39 | 42.32 | 213.97 | -21.78 | 150.86 | 24.81 | 220.16 | 0.6014 | 152.7 | 97.8 | |
|
previous
or next observation for the same group /

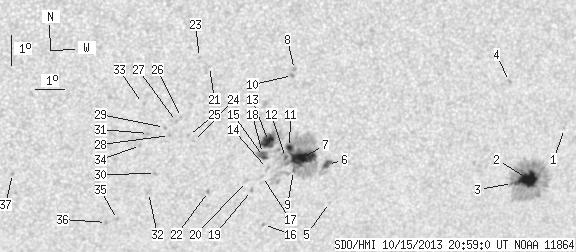

back to the solar disc SDO HMI 2013-10-15 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.69 | -20.95 | 157.49 | 31.44 | 228.14 | 0.6563 | 685.0 | 523.2 | |
| 18.86 | 123.88 | 12.41 | 81.59 | -22.60 | 156.53 | 30.48 | 225.32 | 0.6608 | 1087.5 | 330.4 | |
| 0.52 | -2.00 | 0.34 | -2.00 | -22.71 | 155.96 | 29.90 | 224.68 | 0.6564 | 817.3 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.32 | -19.26 | 155.10 | 29.05 | 228.06 | 0.6184 | 805.0 | 656.8 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -23.03 | 149.37 | 23.32 | 217.50 | 0.6007 | 592.0 | 560.3 | |
| 3.84 | 10.74 | 2.34 | 6.55 | -21.73 | 149.08 | 23.02 | 218.61 | 0.5844 | 796.8 | 268.0 | |
| 21.91 | 176.25 | 13.23 | 105.92 | -21.45 | 148.16 | 22.11 | 217.82 | 0.5734 | 1020.4 | -15.3 | |
| 0.00 | 1.48 | 0.00 | 0.87 | -18.51 | 147.46 | 21.40 | 220.49 | 0.5350 | -934.0 | -792.5 | |
| 0.61 | -7.00 | 0.37 | -7.00 | -21.88 | 147.92 | 21.86 | 217.03 | 0.5759 | 573.4 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -18.70 | 147.42 | 21.36 | 220.19 | 0.5368 | -741.0 | -662.1 | |
| 3.49 | -7.00 | 2.09 | -7.00 | -21.10 | 147.65 | 21.60 | 217.60 | 0.5651 | -860.2 | 999999 | |
| 1.31 | -7.00 | 0.79 | -7.00 | -21.43 | 147.57 | 21.51 | 217.11 | 0.5680 | 737.5 | 999999 | |
| 13.36 | -7.00 | 7.94 | -7.00 | -20.87 | 146.90 | 20.84 | 216.90 | 0.5559 | -1101.5 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.26 | -21.77 | 147.00 | 20.94 | 216.00 | 0.5670 | 845.0 | 637.6 | |
| 3.32 | -7.00 | 1.98 | -7.00 | -21.36 | 146.80 | 20.75 | 216.20 | 0.5607 | 494.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -23.68 | 147.17 | 21.11 | 214.16 | 0.5898 | 729.0 | 637.8 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -22.04 | 146.87 | 20.81 | 215.54 | 0.5688 | 636.0 | 511.7 | |
| 1.40 | -7.00 | 0.83 | -7.00 | -21.26 | 146.75 | 20.70 | 216.25 | 0.5591 | -362.0 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.00 | -22.50 | 146.56 | 20.50 | 214.64 | 0.5715 | -608.0 | -516.2 | |
| 0.00 | 2.01 | 0.00 | 1.20 | -22.19 | 146.34 | 20.28 | 214.69 | 0.5662 | -506.0 | -363.4 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -18.30 | 144.58 | 18.53 | 216.78 | 0.5060 | -641.0 | -629.4 | |
| 0.00 | 1.57 | 0.00 | 0.94 | -22.48 | 145.08 | 19.02 | 212.71 | 0.5594 | -762.0 | -623.8 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -17.99 | 144.22 | 18.16 | 216.62 | 0.4991 | -687.0 | -535.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -20.77 | 144.34 | 18.28 | 213.53 | 0.5332 | -642.0 | -456.7 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -20.56 | 144.15 | 18.09 | 213.48 | 0.5292 | -758.0 | -581.9 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -19.95 | 143.84 | 17.78 | 213.72 | 0.5193 | -721.0 | -532.7 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -20.08 | 143.69 | 17.63 | 213.35 | 0.5196 | -749.0 | -650.8 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -20.54 | 143.51 | 17.45 | 212.57 | 0.5237 | -802.0 | -622.1 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -20.27 | 143.31 | 17.25 | 212.58 | 0.5188 | -685.0 | -606.2 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -21.80 | 143.19 | 17.13 | 210.77 | 0.5368 | -827.0 | -589.2 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -20.45 | 142.79 | 16.74 | 211.61 | 0.5170 | -741.0 | -581.9 | |
| 0.00 | 1.92 | 0.00 | 1.13 | -22.44 | 143.03 | 16.98 | 209.90 | 0.5435 | -614.0 | -546.4 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -19.45 | 142.49 | 16.43 | 212.24 | 0.5020 | -439.0 | -563.5 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -20.84 | 142.57 | 16.52 | 210.85 | 0.5202 | -750.0 | -643.4 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -23.33 | 142.09 | 16.04 | 207.69 | 0.5481 | -756.0 | -638.8 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -23.42 | 141.73 | 15.68 | 207.08 | 0.5468 | -748.0 | -593.5 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -21.67 | 138.41 | 12.36 | 203.41 | 0.5025 | -752.0 | -654.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
