SDO HMI 2013-10-15 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.69 | 325.53 | 41.38 | 203.27 | -21.88 | 150.90 | 25.40 | 220.70 | 0.6078 | 119.6 | 124.0 | |
|
previous
or next observation for the same group /

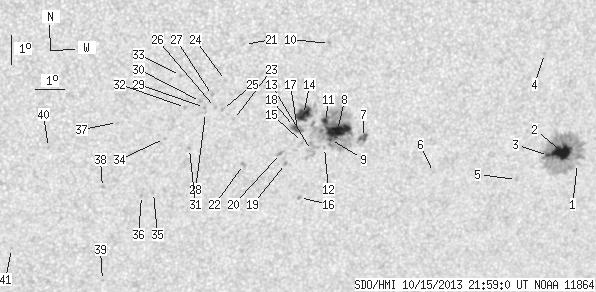

back to the solar disc SDO HMI 2013-10-15 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.82 | -23.02 | 157.23 | 31.72 | 225.94 | 0.6758 | -153.0 | -152.4 | |
| 17.72 | 116.20 | 11.73 | 77.00 | -22.60 | 156.55 | 31.05 | 225.83 | 0.6661 | 1049.0 | 343.3 | |
| 2.10 | -2.00 | 1.38 | -2.00 | -22.68 | 156.04 | 30.54 | 225.29 | 0.6620 | 1003.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -19.23 | 155.13 | 29.62 | 228.65 | 0.6240 | 734.0 | 623.0 | |
| 0.00 | 1.83 | 0.00 | 1.20 | -23.44 | 155.02 | 29.52 | 223.49 | 0.6592 | 585.0 | 392.0 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -23.03 | 151.87 | 26.37 | 220.84 | 0.6273 | 564.0 | 396.8 | |
| 3.40 | 9.17 | 2.08 | 5.61 | -21.72 | 149.12 | 23.62 | 219.32 | 0.5896 | 786.9 | 467.5 | |
| 21.04 | 118.38 | 12.75 | 71.65 | -21.44 | 148.16 | 22.66 | 218.51 | 0.5782 | 1003.3 | 55.5 | |
| 0.79 | -8.00 | 0.48 | -8.00 | -21.74 | 147.97 | 22.47 | 217.93 | 0.5796 | 693.8 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.23 | -18.53 | 147.46 | 21.95 | 221.17 | 0.5406 | -840.0 | -678.0 | |
| 3.40 | -8.00 | 2.05 | -8.00 | -21.12 | 147.70 | 22.19 | 218.31 | 0.5706 | -855.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -22.00 | 147.80 | 22.30 | 217.43 | 0.5810 | 580.0 | 477.6 | |
| 0.00 | 11.26 | 0.00 | 6.82 | -22.08 | 147.36 | 21.86 | 216.80 | 0.5782 | 241.0 | 362.0 | |
| 14.14 | 25.14 | 8.45 | 15.01 | -20.86 | 146.90 | 21.39 | 217.62 | 0.5606 | -1061.7 | -526.7 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -21.80 | 147.01 | 21.50 | 216.68 | 0.5720 | 713.0 | 517.5 | |
| 0.00 | 1.48 | 0.00 | 0.91 | -23.68 | 147.21 | 21.71 | 214.89 | 0.5944 | 824.0 | 635.0 | |
| 2.53 | 8.38 | 1.52 | 5.02 | -21.35 | 146.76 | 21.26 | 216.88 | 0.5650 | 464.3 | 125.1 | |
| 1.57 | -17.00 | 0.94 | -17.00 | -21.25 | 146.64 | 21.14 | 216.85 | 0.5628 | -356.1 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.95 | -22.49 | 146.53 | 21.02 | 215.31 | 0.5756 | -654.0 | -528.5 | |
| 0.00 | 2.71 | 0.00 | 1.63 | -22.14 | 146.30 | 20.80 | 215.40 | 0.5698 | -402.0 | -256.5 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -18.45 | 144.58 | 19.08 | 217.39 | 0.5127 | -627.0 | -512.1 | |
| 0.00 | 2.79 | 0.00 | 1.67 | -22.47 | 145.07 | 19.57 | 213.46 | 0.5636 | -789.0 | -552.4 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -20.93 | 144.52 | 19.02 | 214.37 | 0.5411 | 493.0 | 382.7 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -19.62 | 144.08 | 18.58 | 215.26 | 0.5220 | -693.0 | -507.9 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -20.58 | 144.10 | 18.60 | 214.18 | 0.5336 | -810.0 | -642.6 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -20.51 | 143.86 | 18.35 | 213.92 | 0.5306 | -619.0 | -525.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -20.10 | 143.71 | 18.20 | 214.16 | 0.5246 | -778.0 | -601.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -20.66 | 143.54 | 18.04 | 213.29 | 0.5299 | -618.0 | -521.6 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -20.50 | 143.49 | 17.98 | 213.40 | 0.5274 | -666.0 | -591.7 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -20.29 | 143.33 | 17.82 | 213.40 | 0.5237 | -783.0 | -606.0 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -21.86 | 143.15 | 17.65 | 211.45 | 0.5413 | -767.0 | -595.3 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -20.47 | 142.85 | 17.34 | 212.49 | 0.5220 | -717.0 | -571.1 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -19.40 | 142.56 | 17.06 | 213.26 | 0.5065 | -772.0 | -606.5 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -21.49 | 142.26 | 16.76 | 210.54 | 0.5301 | -600.0 | -512.3 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -23.32 | 142.12 | 16.61 | 208.53 | 0.5518 | -643.0 | -533.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -23.41 | 141.72 | 16.22 | 207.88 | 0.5502 | -683.0 | -558.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -20.90 | 140.63 | 15.13 | 208.64 | 0.5106 | -619.0 | -605.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -23.09 | 140.36 | 14.86 | 206.16 | 0.5372 | -676.0 | -535.5 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -26.33 | 140.76 | 15.26 | 204.04 | 0.5813 | 709.0 | 607.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -21.68 | 138.42 | 12.92 | 204.34 | 0.5062 | -760.0 | -654.2 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -25.12 | 137.51 | 12.01 | 200.20 | 0.5478 | -670.0 | -571.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
