SDO HMI 2013-10-15 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.90 | 304.04 | 45.59 | 192.44 | -21.87 | 151.28 | 26.88 | 222.30 | 0.6210 | 207.3 | 126.4 | |
|
previous
or next observation for the same group /

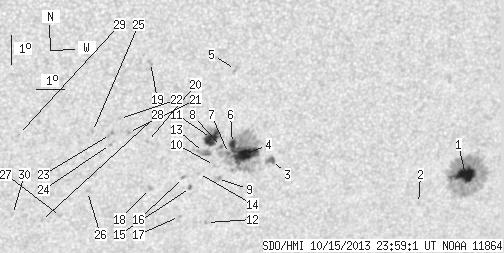

back to the solar disc SDO HMI 2013-10-15 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.47 | 121.99 | 13.05 | 81.85 | -22.57 | 156.51 | 32.11 | 226.79 | 0.6757 | 1017.8 | 323.5 | |
| 0.00 | 1.48 | 0.00 | 0.99 | -23.47 | 154.95 | 30.55 | 224.40 | 0.6687 | 383.0 | 374.9 | |
| 2.79 | 5.59 | 1.73 | 3.45 | -21.72 | 149.18 | 24.78 | 220.66 | 0.6000 | 791.9 | 610.3 | |
| 29.95 | 109.85 | 18.31 | 67.06 | -21.47 | 148.18 | 23.79 | 219.81 | 0.5884 | 889.1 | 48.5 | |
| 0.00 | 2.71 | 0.00 | 1.61 | -18.62 | 147.42 | 23.02 | 222.40 | 0.5518 | -700.0 | -612.2 | |
| 4.89 | -4.00 | 2.97 | -4.00 | -21.08 | 147.70 | 23.30 | 219.70 | 0.5800 | -785.1 | 999999 | |
| 0.96 | -4.00 | 0.58 | -4.00 | -21.41 | 147.61 | 23.21 | 219.21 | 0.5827 | 797.2 | 999999 | |
| 0.52 | -4.00 | 0.32 | -4.00 | -21.16 | 147.33 | 22.93 | 219.16 | 0.5775 | -576.8 | 999999 | |
| 0.00 | 4.28 | 0.00 | 2.62 | -22.24 | 147.37 | 22.97 | 217.97 | 0.5893 | 550.0 | 424.6 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -21.79 | 147.19 | 22.79 | 218.26 | 0.5830 | 608.0 | 467.6 | |
| 13.71 | 23.75 | 8.26 | 14.30 | -20.88 | 146.94 | 22.54 | 219.02 | 0.5710 | -961.5 | -538.4 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -23.73 | 147.25 | 22.85 | 216.20 | 0.6042 | 805.0 | 628.3 | |
| 0.00 | 8.56 | 0.00 | 5.17 | -21.34 | 146.73 | 22.33 | 218.23 | 0.5741 | 313.0 | 173.6 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -22.04 | 146.67 | 22.27 | 217.36 | 0.5811 | 556.0 | 482.1 | |
| 0.61 | 1.57 | 0.37 | 0.96 | -22.51 | 146.47 | 22.07 | 216.60 | 0.5845 | -650.1 | -545.1 | |
| 0.00 | 1.57 | 0.00 | 0.95 | -22.16 | 146.17 | 21.77 | 216.61 | 0.5781 | -634.0 | -399.6 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -23.49 | 146.25 | 21.85 | 215.27 | 0.5934 | 748.0 | 616.1 | |
| 0.00 | 2.53 | 0.00 | 1.53 | -22.48 | 145.07 | 20.68 | 214.88 | 0.5726 | -765.0 | -607.7 | |
| 0.00 | 2.45 | 0.00 | 1.42 | -18.27 | 144.49 | 20.10 | 219.05 | 0.5199 | -798.0 | -650.4 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -20.89 | 144.74 | 20.34 | 216.21 | 0.5517 | 738.0 | 444.1 | |
| 0.00 | 1.57 | 0.00 | 0.93 | -20.56 | 144.04 | 19.64 | 215.66 | 0.5420 | -862.0 | -699.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -20.08 | 143.68 | 19.28 | 215.71 | 0.5333 | -692.0 | -519.4 | |
| 0.00 | 2.71 | 0.00 | 1.59 | -20.61 | 143.44 | 19.04 | 214.78 | 0.5375 | -654.0 | -620.1 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -20.94 | 143.48 | 19.08 | 214.46 | 0.5418 | -702.0 | -594.6 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -20.49 | 142.82 | 18.42 | 214.04 | 0.5308 | -762.0 | -542.6 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -22.50 | 142.91 | 18.51 | 212.00 | 0.5557 | -770.0 | -642.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -23.33 | 142.10 | 17.70 | 210.06 | 0.5596 | -615.0 | -542.1 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -23.44 | 141.47 | 17.07 | 209.07 | 0.5565 | -390.0 | -330.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -20.50 | 140.35 | 15.95 | 210.35 | 0.5115 | -629.0 | -568.1 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -23.21 | 140.46 | 16.06 | 207.84 | 0.5465 | -768.0 | -677.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
