SDO HMI 2013-10-16 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.10 | 309.62 | 45.89 | 196.71 | -21.88 | 151.15 | 27.30 | 222.75 | 0.6249 | 229.8 | 149.6 | |
|
previous
or next observation for the same group /

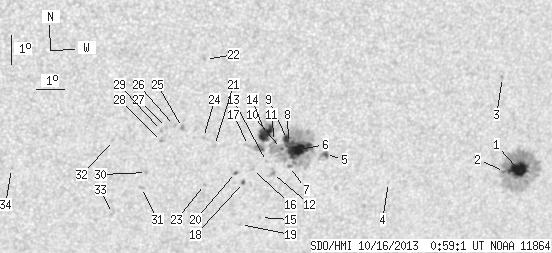

back to the solar disc SDO HMI 2013-10-16 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.60 | 118.60 | 12.55 | 80.10 | -22.58 | 156.54 | 32.69 | 227.28 | 0.6811 | 1011.2 | 315.7 | |
| 0.44 | -1.00 | 0.29 | -1.00 | -22.61 | 156.01 | 32.16 | 226.79 | 0.6765 | 799.8 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.13 | -19.43 | 155.18 | 31.33 | 229.93 | 0.6430 | 658.0 | 546.6 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -22.75 | 151.69 | 27.84 | 222.68 | 0.6377 | 669.0 | 510.6 | |
| 2.10 | 7.07 | 1.30 | 4.39 | -21.68 | 149.20 | 25.35 | 221.33 | 0.6047 | 770.4 | 532.5 | |
| 28.64 | 119.47 | 17.59 | 73.25 | -21.46 | 148.20 | 24.35 | 220.47 | 0.5935 | 908.6 | 58.2 | |
| 0.61 | -6.00 | 0.38 | -6.00 | -22.03 | 147.98 | 24.13 | 219.57 | 0.5972 | 543.9 | 999999 | |
| 0.79 | -6.00 | 0.48 | -6.00 | -21.25 | 147.81 | 23.96 | 220.28 | 0.5877 | 564.0 | 999999 | |
| 4.98 | -6.00 | 3.04 | -6.00 | -21.11 | 147.75 | 23.90 | 220.37 | 0.5857 | -730.4 | 999999 | |
| 0.87 | -6.00 | 0.53 | -6.00 | -21.40 | 147.59 | 23.74 | 219.84 | 0.5873 | 719.0 | 999999 | |
| 0.44 | -6.00 | 0.27 | -6.00 | -21.16 | 147.30 | 23.45 | 219.80 | 0.5821 | -589.4 | 999999 | |
| 0.00 | 3.93 | 0.00 | 2.42 | -22.24 | 147.42 | 23.57 | 218.68 | 0.5945 | 631.0 | 451.9 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -21.82 | 147.14 | 23.29 | 218.83 | 0.5876 | 720.0 | 577.8 | |
| 14.32 | 28.91 | 8.66 | 17.50 | -20.87 | 146.94 | 23.09 | 219.70 | 0.5759 | -959.0 | -141.1 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -23.73 | 147.27 | 23.42 | 216.86 | 0.6088 | 781.0 | 654.6 | |
| 0.00 | 1.66 | 0.00 | 1.01 | -22.07 | 146.69 | 22.84 | 218.01 | 0.5863 | 727.0 | 534.8 | |
| 0.00 | 2.62 | 0.00 | 1.58 | -21.25 | 146.41 | 22.56 | 218.62 | 0.5751 | -441.0 | -191.9 | |
| 0.79 | 1.83 | 0.48 | 1.12 | -22.50 | 146.45 | 22.60 | 217.24 | 0.5888 | -542.2 | -374.3 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -23.94 | 146.60 | 22.75 | 215.86 | 0.6055 | 541.0 | 452.7 | |
| 0.52 | 1.31 | 0.32 | 0.80 | -22.15 | 146.11 | 22.26 | 217.23 | 0.5821 | -476.2 | -450.6 | |
| 0.00 | 1.75 | 0.00 | 1.05 | -21.20 | 145.23 | 21.38 | 217.21 | 0.5642 | 602.0 | 472.9 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -18.33 | 144.53 | 20.68 | 219.77 | 0.5260 | -726.0 | -599.8 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -22.51 | 145.09 | 21.24 | 215.57 | 0.5775 | -715.0 | -629.7 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -20.92 | 144.81 | 20.96 | 217.00 | 0.5574 | 747.0 | 575.7 | |
| 0.00 | 2.10 | 0.00 | 1.24 | -20.55 | 144.04 | 20.19 | 216.41 | 0.5466 | -833.0 | -667.3 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -20.48 | 143.76 | 19.91 | 216.12 | 0.5433 | -668.0 | -589.6 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -20.53 | 143.49 | 19.64 | 215.70 | 0.5416 | -806.0 | -637.0 | |
| 0.00 | 1.57 | 0.00 | 0.93 | -21.00 | 143.38 | 19.54 | 215.02 | 0.5461 | -692.0 | -525.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -20.63 | 143.34 | 19.49 | 215.38 | 0.5414 | -806.0 | -651.0 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -22.02 | 143.02 | 19.17 | 213.40 | 0.5551 | -723.0 | -639.7 | |
| 0.00 | 1.75 | 0.00 | 1.04 | -22.53 | 142.92 | 19.07 | 212.73 | 0.5602 | -792.0 | -651.6 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -20.90 | 141.75 | 17.90 | 212.84 | 0.5316 | -742.0 | -526.6 | |
| 0.00 | 2.45 | 0.00 | 1.46 | -23.38 | 142.04 | 18.19 | 210.68 | 0.5638 | -444.0 | -472.3 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -21.74 | 138.43 | 14.58 | 206.98 | 0.5176 | -678.0 | -578.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
