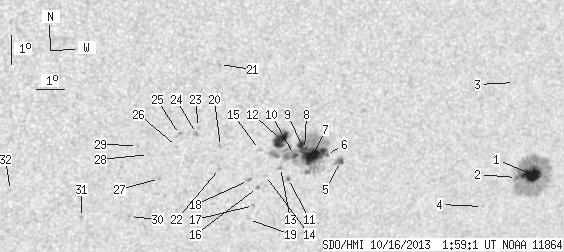

SDO HMI 2013-10-16 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.52 | 289.51 | 43.79 | 185.26 | -21.86 | 151.33 | 28.03 | 223.51 | 0.6313 | 228.7 | 160.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-16 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.68 | 118.43 | 11.32 | 80.45 | -22.55 | 156.52 | 33.22 | 227.75 | 0.6859 | 1046.7 | 345.8 | |
| 0.70 | -1.00 | 0.47 | -1.00 | -22.62 | 155.96 | 32.66 | 227.21 | 0.6811 | 835.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -19.40 | 155.10 | 31.81 | 230.39 | 0.6476 | 615.0 | 599.6 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -23.54 | 154.90 | 31.60 | 225.25 | 0.6788 | 543.0 | 467.1 | |
| 1.83 | 6.11 | 1.14 | 3.81 | -21.72 | 149.22 | 25.93 | 221.91 | 0.6103 | 731.8 | 618.1 | |
| 0.52 | 134.33 | 0.32 | 82.47 | -21.45 | 148.68 | 25.38 | 221.63 | 0.6027 | 625.8 | 16.6 | |
| 26.20 | -6.00 | 16.16 | -6.00 | -21.46 | 148.18 | 24.88 | 221.07 | 0.5983 | 925.6 | 999999 | |
| 1.31 | -6.00 | 0.80 | -6.00 | -21.25 | 147.86 | 24.56 | 220.96 | 0.5931 | 565.9 | 999999 | |
| 4.98 | -6.00 | 3.05 | -6.00 | -21.11 | 147.76 | 24.46 | 221.02 | 0.5909 | -695.9 | 999999 | |
| 2.45 | -6.00 | 1.50 | -6.00 | -21.44 | 147.54 | 24.24 | 220.38 | 0.5921 | 687.6 | 999999 | |
| 0.61 | 1.83 | 0.38 | 1.13 | -22.21 | 147.46 | 24.17 | 219.41 | 0.5993 | 702.1 | 572.4 | |
| 14.24 | -6.00 | 8.65 | -6.00 | -20.87 | 146.95 | 23.65 | 220.37 | 0.5810 | -952.4 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.13 | -21.82 | 147.11 | 23.81 | 219.45 | 0.5922 | 401.0 | 406.1 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -22.07 | 146.63 | 23.33 | 218.60 | 0.5905 | 423.0 | 459.5 | |
| 0.00 | 2.18 | 0.00 | 1.32 | -21.18 | 146.27 | 22.97 | 219.20 | 0.5779 | -628.0 | -485.6 | |
| 0.00 | 1.66 | 0.00 | 1.02 | -22.46 | 146.42 | 23.12 | 217.90 | 0.5928 | -398.0 | -436.5 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -23.07 | 146.38 | 23.09 | 217.19 | 0.5990 | -724.0 | -429.7 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -22.21 | 146.06 | 22.76 | 217.76 | 0.5870 | -644.0 | -524.9 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -23.55 | 146.29 | 23.00 | 216.57 | 0.6033 | 669.0 | 544.8 | |
| 0.00 | 1.57 | 0.00 | 0.94 | -21.02 | 144.89 | 21.59 | 217.69 | 0.5640 | 806.0 | 681.9 | |
| 0.00 | 1.92 | 0.00 | 1.12 | -18.29 | 144.48 | 21.18 | 220.49 | 0.5303 | -748.0 | -582.0 | |
| 0.00 | 1.83 | 0.00 | 1.11 | -21.76 | 144.97 | 21.67 | 216.95 | 0.5728 | 793.0 | 612.1 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -20.35 | 144.04 | 20.74 | 217.38 | 0.5491 | -627.0 | -571.8 | |
| 0.00 | 2.36 | 0.00 | 1.40 | -20.55 | 144.00 | 20.70 | 217.09 | 0.5509 | -846.0 | -619.0 | |
| 0.00 | 1.75 | 0.00 | 1.03 | -20.56 | 143.42 | 20.12 | 216.32 | 0.5460 | -823.0 | -692.4 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -20.96 | 143.37 | 20.08 | 215.80 | 0.5502 | -703.0 | -572.9 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -22.02 | 142.94 | 19.64 | 214.05 | 0.5588 | -658.0 | -534.4 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -21.19 | 142.45 | 19.15 | 214.29 | 0.5452 | -630.0 | -532.0 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -20.88 | 142.04 | 18.74 | 214.07 | 0.5380 | -606.0 | -559.9 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -23.28 | 142.10 | 18.80 | 211.61 | 0.5670 | -680.0 | -571.5 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -23.25 | 140.45 | 17.15 | 209.37 | 0.5546 | -845.0 | -561.7 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -22.26 | 137.94 | 14.64 | 206.59 | 0.5247 | -744.0 | -606.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
