SDO HMI 2013-10-16 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.70 | 299.83 | 44.69 | 194.43 | -21.81 | 151.13 | 29.48 | 224.98 | 0.6442 | 224.7 | 132.2 | |
|
previous
or next observation for the same group /

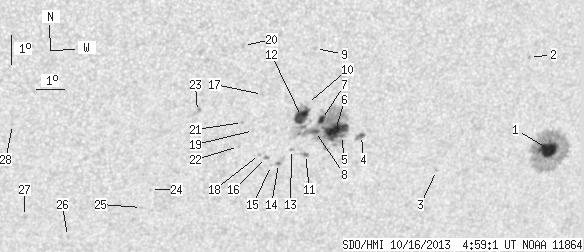

back to the solar disc SDO HMI 2013-10-16 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.34 | 113.48 | 12.71 | 78.69 | -22.53 | 156.56 | 34.91 | 229.12 | 0.7014 | 1060.2 | 308.9 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -19.38 | 155.00 | 33.35 | 231.71 | 0.6631 | 725.0 | 592.9 | |
| 0.00 | 1.31 | 0.00 | 0.87 | -23.00 | 152.36 | 30.70 | 225.10 | 0.6659 | 700.0 | 542.1 | |
| 1.66 | 5.07 | 1.05 | 3.21 | -21.65 | 149.27 | 27.61 | 223.75 | 0.6252 | 698.5 | 532.5 | |
| 0.79 | 149.73 | 0.49 | 93.20 | -21.61 | 148.53 | 26.88 | 223.05 | 0.6180 | 551.3 | 27.6 | |
| 24.98 | -5.00 | 15.64 | -5.00 | -21.43 | 148.28 | 26.63 | 223.00 | 0.6140 | 941.9 | 999999 | |
| 4.02 | -5.00 | 2.49 | -5.00 | -21.04 | 147.71 | 26.05 | 222.87 | 0.6048 | -844.3 | 999999 | |
| 3.23 | -5.00 | 2.01 | -5.00 | -21.43 | 147.57 | 25.91 | 222.25 | 0.6073 | 667.6 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -18.66 | 147.08 | 25.43 | 225.16 | 0.5759 | -378.0 | -301.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -20.48 | 147.10 | 25.45 | 222.90 | 0.5936 | -305.0 | -280.0 | |
| 0.87 | 2.88 | 0.55 | 1.80 | -22.19 | 147.35 | 25.70 | 221.13 | 0.6128 | 761.6 | 587.4 | |
| 14.41 | -5.00 | 8.88 | -5.00 | -20.90 | 146.97 | 25.32 | 222.24 | 0.5965 | -971.3 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.87 | -22.00 | 146.82 | 25.16 | 220.77 | 0.6060 | -471.0 | -318.6 | |
| 0.79 | 4.11 | 0.49 | 2.55 | -22.46 | 146.44 | 24.79 | 219.83 | 0.6071 | -535.1 | -177.5 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -22.51 | 146.20 | 24.55 | 219.50 | 0.6056 | -528.0 | -365.8 | |
| 0.61 | 2.01 | 0.38 | 1.24 | -22.23 | 145.97 | 24.32 | 219.56 | 0.6007 | -748.4 | -579.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -20.10 | 145.46 | 23.81 | 221.50 | 0.5743 | -757.0 | -599.0 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -22.12 | 145.70 | 24.05 | 219.39 | 0.5972 | -705.0 | -592.9 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -21.30 | 145.35 | 23.69 | 219.93 | 0.5855 | 531.0 | 341.6 | |
| 0.00 | 1.57 | 0.00 | 0.93 | -18.45 | 144.56 | 22.90 | 222.50 | 0.5486 | -757.0 | -562.7 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -21.01 | 144.91 | 23.26 | 219.76 | 0.5786 | 780.0 | 642.9 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -21.81 | 144.91 | 23.25 | 218.82 | 0.5870 | 681.0 | 618.7 | |
| 0.00 | 3.58 | 0.00 | 2.14 | -20.57 | 143.29 | 21.63 | 218.29 | 0.5592 | -682.0 | -685.8 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -23.15 | 142.06 | 20.41 | 213.85 | 0.5777 | -447.0 | -463.6 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -23.76 | 141.84 | 20.19 | 212.95 | 0.5830 | -559.0 | -400.2 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -24.67 | 139.42 | 17.76 | 208.89 | 0.5760 | -575.0 | -455.1 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -23.93 | 137.84 | 16.19 | 207.38 | 0.5562 | -691.0 | -523.4 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -20.79 | 137.07 | 15.42 | 209.25 | 0.5108 | -764.0 | -599.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
