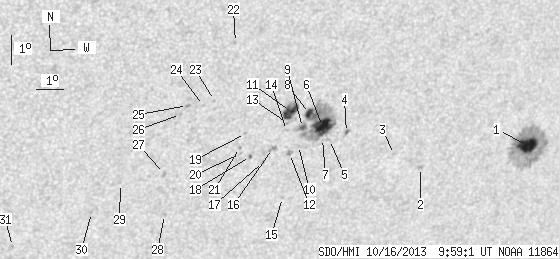

SDO HMI 2013-10-16 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.39 | 254.85 | 39.37 | 171.47 | -21.94 | 151.66 | 32.74 | 227.78 | 0.6758 | 148.2 | 115.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-16 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.43 | 110.38 | 13.24 | 79.40 | -22.53 | 156.55 | 37.63 | 231.13 | 0.7267 | 1014.2 | 262.2 | |
| 0.00 | 2.27 | 0.00 | 1.55 | -23.01 | 152.42 | 33.50 | 227.48 | 0.6916 | 681.0 | 564.8 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -22.51 | 151.28 | 32.36 | 227.13 | 0.6770 | 676.0 | 595.7 | |
| 0.70 | 2.36 | 0.45 | 1.53 | -21.65 | 149.25 | 30.33 | 226.37 | 0.6508 | 560.0 | 482.4 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -21.85 | 148.66 | 29.74 | 225.59 | 0.6469 | 64.0 | 96.1 | |
| 19.82 | 88.55 | 12.74 | 56.72 | -21.40 | 148.30 | 29.38 | 225.79 | 0.6395 | 841.8 | 79.8 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -21.81 | 148.39 | 29.47 | 225.39 | 0.6439 | 173.0 | 228.1 | |
| 4.89 | -6.00 | 3.11 | -6.00 | -20.93 | 147.72 | 28.80 | 225.81 | 0.6299 | -804.2 | 999999 | |
| 2.10 | -6.00 | 1.34 | -6.00 | -21.39 | 147.56 | 28.65 | 225.10 | 0.6324 | 662.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -22.00 | 147.55 | 28.63 | 224.37 | 0.6377 | 365.0 | 312.4 | |
| 12.84 | 20.78 | 8.10 | 13.12 | -20.83 | 147.01 | 28.09 | 225.24 | 0.6221 | -955.6 | -577.3 | |
| 0.00 | 3.06 | 0.00 | 1.96 | -22.25 | 147.27 | 28.35 | 223.80 | 0.6374 | 653.0 | 575.3 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -21.23 | 146.98 | 28.06 | 224.73 | 0.6254 | -380.0 | -264.5 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -21.46 | 146.99 | 28.08 | 224.46 | 0.6276 | 465.0 | 413.7 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -23.75 | 147.36 | 28.44 | 222.16 | 0.6517 | 514.0 | 408.5 | |
| 0.00 | 3.58 | 0.00 | 2.28 | -22.05 | 146.61 | 27.69 | 223.38 | 0.6293 | -516.0 | -327.0 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -22.48 | 146.37 | 27.45 | 222.64 | 0.6311 | -603.0 | -515.7 | |
| 0.61 | 1.48 | 0.39 | 0.94 | -22.28 | 145.86 | 26.94 | 222.35 | 0.6246 | -592.9 | -497.2 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -21.49 | 145.52 | 26.60 | 222.93 | 0.6139 | 594.0 | 450.0 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -22.16 | 145.47 | 26.55 | 222.09 | 0.6199 | -595.0 | -488.1 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -21.95 | 145.39 | 26.47 | 222.25 | 0.6172 | -570.0 | -521.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -18.44 | 144.62 | 25.70 | 225.78 | 0.5762 | -709.0 | -569.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -20.33 | 144.19 | 25.28 | 222.92 | 0.5902 | -608.0 | -513.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -20.48 | 143.83 | 24.91 | 222.33 | 0.5882 | -461.0 | -446.6 | |
| 0.00 | 1.83 | 0.00 | 1.12 | -20.45 | 143.27 | 24.35 | 221.72 | 0.5826 | -768.0 | -608.4 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -20.74 | 143.07 | 24.15 | 221.15 | 0.5837 | -741.0 | -667.5 | |
| 0.00 | 2.62 | 0.00 | 1.62 | -22.71 | 142.86 | 23.94 | 218.61 | 0.6020 | -549.0 | -425.6 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -24.13 | 143.13 | 24.21 | 217.37 | 0.6189 | -715.0 | -582.9 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -22.99 | 141.35 | 22.43 | 216.55 | 0.5921 | -665.0 | -610.2 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -23.94 | 140.50 | 21.58 | 214.51 | 0.5956 | -648.0 | -492.5 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -25.02 | 137.91 | 18.99 | 210.20 | 0.5884 | -753.0 | -516.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
