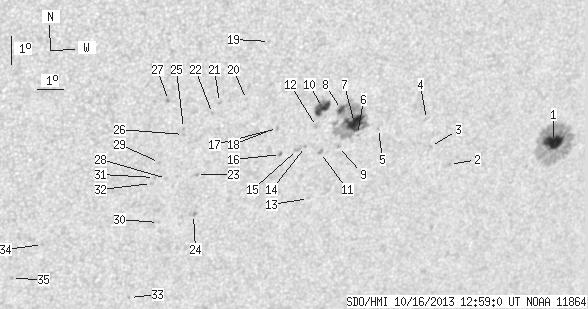

SDO HMI 2013-10-16 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.97 | 251.83 | 34.61 | 172.64 | -21.97 | 151.49 | 34.22 | 228.91 | 0.6901 | 110.0 | 112.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-16 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.55 | 107.98 | 12.91 | 79.54 | -22.50 | 156.54 | 39.27 | 232.27 | 0.7416 | 971.4 | 265.0 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -23.01 | 152.46 | 35.18 | 228.80 | 0.7072 | 687.0 | 614.8 | |
| 0.00 | 0.96 | 0.00 | 0.66 | -22.35 | 151.51 | 34.24 | 228.85 | 0.6935 | 853.0 | 693.3 | |
| 0.00 | 1.75 | 0.00 | 1.18 | -21.42 | 151.11 | 33.83 | 229.63 | 0.6827 | -659.0 | -499.9 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -21.61 | 149.32 | 32.04 | 227.92 | 0.6668 | 684.0 | 567.8 | |
| 0.00 | 1.48 | 0.00 | 0.98 | -21.77 | 148.56 | 31.28 | 227.08 | 0.6608 | 144.0 | 236.1 | |
| 17.89 | 85.63 | 11.71 | 55.86 | -21.39 | 148.36 | 31.08 | 227.35 | 0.6558 | 838.1 | 105.7 | |
| 3.75 | -7.00 | 2.43 | -7.00 | -20.89 | 147.75 | 30.48 | 227.42 | 0.6458 | -863.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -22.14 | 147.93 | 30.66 | 226.09 | 0.6579 | 783.0 | 633.0 | |
| 11.78 | 17.46 | 7.56 | 11.20 | -20.78 | 147.03 | 29.75 | 226.89 | 0.6378 | -971.5 | -640.2 | |
| 0.00 | 2.44 | 0.00 | 1.59 | -22.31 | 147.30 | 30.02 | 225.32 | 0.6534 | 600.0 | 489.3 | |
| 0.00 | 2.44 | 0.00 | 1.58 | -21.41 | 146.94 | 29.67 | 226.05 | 0.6424 | 205.0 | 235.1 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -23.86 | 147.23 | 29.96 | 223.46 | 0.6662 | 642.0 | 509.8 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -22.07 | 146.69 | 29.41 | 225.03 | 0.6456 | -406.0 | -379.2 | |
| 0.00 | 2.88 | 0.00 | 1.86 | -22.16 | 146.41 | 29.13 | 224.66 | 0.6437 | -613.0 | -485.4 | |
| 0.00 | 1.57 | 0.00 | 1.01 | -22.29 | 145.81 | 28.54 | 223.93 | 0.6394 | -609.0 | -494.2 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -21.41 | 145.51 | 28.23 | 224.69 | 0.6285 | 627.0 | 498.5 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -21.43 | 145.30 | 28.02 | 224.45 | 0.6267 | 681.0 | 592.0 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -18.49 | 144.66 | 27.39 | 227.50 | 0.5940 | -694.0 | -475.1 | |
| 0.00 | 1.40 | 0.00 | 0.87 | -20.37 | 144.18 | 26.91 | 224.61 | 0.6063 | -530.0 | -443.7 | |
| 0.00 | 1.66 | 0.00 | 1.02 | -20.43 | 143.23 | 25.95 | 223.54 | 0.5976 | -501.0 | -512.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -20.78 | 143.05 | 25.77 | 222.91 | 0.5993 | -681.0 | -576.4 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -22.82 | 142.87 | 25.59 | 220.32 | 0.6176 | -627.0 | -586.1 | |
| 0.00 | 2.36 | 0.00 | 1.50 | -24.20 | 143.05 | 25.77 | 218.98 | 0.6327 | -471.0 | -406.7 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -21.24 | 142.10 | 24.83 | 221.32 | 0.5949 | -655.0 | -622.9 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -21.44 | 142.14 | 24.86 | 221.12 | 0.5973 | -604.0 | -477.7 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -20.28 | 141.41 | 24.13 | 221.70 | 0.5787 | -850.0 | -765.5 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -22.91 | 141.81 | 24.53 | 219.07 | 0.6091 | -669.0 | -542.8 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -22.35 | 141.45 | 24.18 | 219.30 | 0.6003 | -565.0 | -488.2 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -24.42 | 141.82 | 24.55 | 217.43 | 0.6246 | -514.0 | -360.0 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -22.86 | 141.37 | 24.10 | 218.64 | 0.6048 | -629.0 | -611.5 | |
| 0.00 | 1.57 | 0.00 | 0.98 | -23.06 | 141.30 | 24.03 | 218.33 | 0.6063 | -695.0 | -498.7 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -27.01 | 141.33 | 24.05 | 214.25 | 0.6475 | 652.0 | 570.0 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -25.01 | 137.80 | 20.52 | 212.15 | 0.5993 | -696.0 | -538.6 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -26.16 | 136.91 | 19.63 | 209.95 | 0.6062 | -586.0 | -510.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
