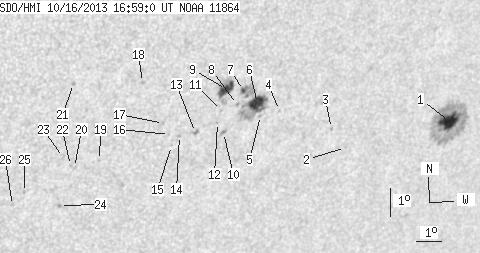

SDO HMI 2013-10-16 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.68 | 216.71 | 32.79 | 154.56 | -22.01 | 152.31 | 37.24 | 231.18 | 0.7186 | 195.1 | 110.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-16 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.06 | 109.58 | 13.76 | 83.51 | -22.49 | 156.59 | 41.52 | 233.70 | 0.7622 | 969.7 | 257.2 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -23.08 | 152.42 | 37.34 | 230.30 | 0.7276 | 715.0 | 637.7 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -22.39 | 151.63 | 36.55 | 230.54 | 0.7156 | 586.0 | 627.9 | |
| 0.00 | 1.13 | 0.00 | 0.77 | -21.64 | 149.35 | 34.28 | 229.71 | 0.6886 | 469.0 | 370.5 | |
| 0.00 | 1.40 | 0.00 | 0.94 | -21.77 | 148.65 | 33.57 | 229.00 | 0.6828 | 308.0 | 216.1 | |
| 15.01 | 55.84 | 10.07 | 37.40 | -21.35 | 148.42 | 33.35 | 229.32 | 0.6775 | 855.9 | 112.7 | |
| 2.01 | -6.00 | 1.33 | -6.00 | -20.88 | 147.77 | 32.70 | 229.35 | 0.6675 | -822.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -21.34 | 147.65 | 32.58 | 228.70 | 0.6699 | 650.0 | 474.4 | |
| 11.60 | 24.95 | 7.63 | 16.41 | -20.81 | 147.11 | 32.03 | 228.89 | 0.6604 | -948.8 | -543.8 | |
| 0.00 | 2.44 | 0.00 | 1.63 | -22.26 | 147.35 | 32.28 | 227.35 | 0.6743 | 656.0 | 522.7 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -21.51 | 147.09 | 32.01 | 228.02 | 0.6657 | 604.0 | 463.2 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -21.91 | 147.03 | 31.96 | 227.50 | 0.6684 | 672.0 | 587.6 | |
| 0.00 | 2.79 | 0.00 | 1.84 | -22.20 | 146.27 | 31.20 | 226.50 | 0.6635 | -653.0 | -582.5 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -22.27 | 145.69 | 30.61 | 225.90 | 0.6586 | -766.0 | -612.9 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -22.59 | 145.47 | 30.39 | 225.32 | 0.6592 | -601.0 | -522.9 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -22.21 | 145.30 | 30.22 | 225.61 | 0.6545 | -628.0 | -499.3 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -21.83 | 144.98 | 29.91 | 225.78 | 0.6482 | 706.0 | 618.0 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -20.40 | 143.90 | 28.83 | 226.49 | 0.6254 | -688.0 | -513.1 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -22.96 | 142.88 | 27.80 | 222.44 | 0.6387 | -579.0 | -528.2 | |
| 0.00 | 1.48 | 0.00 | 0.95 | -23.16 | 142.00 | 26.93 | 221.34 | 0.6327 | -425.0 | -387.1 | |
| 0.00 | 1.48 | 0.00 | 0.92 | -20.31 | 141.40 | 26.33 | 224.08 | 0.6001 | -863.0 | -692.4 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -23.08 | 141.84 | 26.77 | 221.26 | 0.6305 | -448.0 | -387.9 | |
| 0.00 | 1.66 | 0.00 | 1.05 | -22.79 | 141.53 | 26.45 | 221.26 | 0.6250 | -655.0 | -608.4 | |
| 0.00 | 1.66 | 0.00 | 1.07 | -24.44 | 141.74 | 26.67 | 219.64 | 0.6427 | -668.0 | -574.1 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -23.93 | 140.35 | 25.28 | 218.75 | 0.6258 | -746.0 | -587.5 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -24.36 | 140.01 | 24.93 | 217.91 | 0.6273 | -584.0 | -454.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
