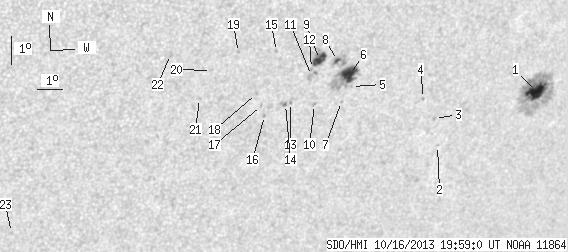

SDO HMI 2013-10-16 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.16 | 190.80 | 33.24 | 139.86 | -21.98 | 152.56 | 39.14 | 232.54 | 0.7361 | 237.5 | 145.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-16 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.06 | 99.02 | 14.15 | 77.66 | -22.47 | 156.60 | 43.18 | 234.70 | 0.7771 | 894.2 | 250.6 | |
| 0.00 | 0.87 | 0.00 | 0.65 | -24.03 | 152.88 | 39.47 | 230.66 | 0.7529 | 548.0 | 464.4 | |
| 0.00 | 1.48 | 0.00 | 1.09 | -23.09 | 152.42 | 39.00 | 231.43 | 0.7428 | 564.0 | 423.9 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -22.36 | 151.72 | 38.30 | 231.79 | 0.7318 | 634.0 | 534.2 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -21.76 | 148.63 | 35.22 | 230.29 | 0.6985 | 347.0 | 262.6 | |
| 16.05 | 38.65 | 11.00 | 26.47 | -21.35 | 148.44 | 35.02 | 230.63 | 0.6937 | 822.5 | 308.9 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -22.25 | 148.38 | 34.96 | 229.52 | 0.6996 | 434.0 | 396.1 | |
| 2.01 | 10.47 | 1.36 | 7.10 | -20.85 | 147.83 | 34.42 | 230.77 | 0.6842 | -776.7 | -267.2 | |
| 9.60 | 15.18 | 6.44 | 10.17 | -20.77 | 147.12 | 33.70 | 230.30 | 0.6766 | -959.2 | -670.7 | |
| 0.00 | 1.48 | 0.00 | 1.01 | -22.29 | 147.33 | 33.91 | 228.66 | 0.6899 | 617.0 | 450.6 | |
| 0.00 | 5.23 | 0.00 | 3.52 | -21.29 | 146.94 | 33.53 | 229.53 | 0.6788 | 457.0 | 200.3 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -21.05 | 146.88 | 33.47 | 229.77 | 0.6764 | -431.0 | -375.2 | |
| 0.00 | 1.31 | 0.00 | 0.88 | -22.16 | 146.36 | 32.95 | 228.03 | 0.6798 | -367.0 | -320.6 | |
| 0.44 | 2.97 | 0.29 | 1.99 | -22.22 | 146.18 | 32.77 | 227.81 | 0.6786 | -633.8 | -581.9 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -20.40 | 145.39 | 31.98 | 229.33 | 0.6567 | -608.0 | -471.1 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -22.55 | 145.47 | 32.05 | 226.82 | 0.6744 | -636.0 | -567.2 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -22.20 | 145.26 | 31.85 | 227.06 | 0.6696 | -431.0 | -296.3 | |
| 0.00 | 1.66 | 0.00 | 1.09 | -21.78 | 144.97 | 31.55 | 227.30 | 0.6635 | 763.0 | 556.4 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -20.36 | 143.96 | 30.55 | 228.14 | 0.6421 | -746.0 | -637.1 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -20.91 | 143.09 | 29.67 | 226.67 | 0.6380 | -596.0 | -490.7 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -21.83 | 142.85 | 29.43 | 225.33 | 0.6437 | -598.0 | -533.9 | |
| 0.00 | 2.09 | 0.00 | 1.31 | -20.29 | 141.46 | 28.04 | 225.87 | 0.6167 | -586.0 | -547.9 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -26.13 | 136.91 | 23.50 | 214.51 | 0.6341 | -608.0 | -535.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
