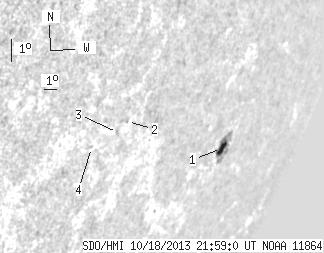

SDO HMI 2013-10-18 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.14 | 27.63 | 9.38 | 48.65 | -22.44 | 155.49 | 69.56 | 244.56 | 0.9591 | 287.7 | -4.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-18 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.14 | 24.14 | 9.38 | 44.54 | -22.56 | 156.31 | 70.38 | 244.65 | 0.9637 | 413.9 | 3.3 | |
| 0.00 | 0.96 | 0.00 | 1.15 | -20.84 | 147.28 | 61.35 | 244.14 | 0.9132 | -173.0 | -246.1 | |
| 0.00 | 1.57 | 0.00 | 1.87 | -21.16 | 146.84 | 60.91 | 243.67 | 0.9111 | 163.0 | 134.9 | |
| 0.00 | 0.96 | 0.00 | 1.09 | -21.52 | 145.40 | 59.47 | 242.84 | 0.9024 | -311.0 | -251.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
