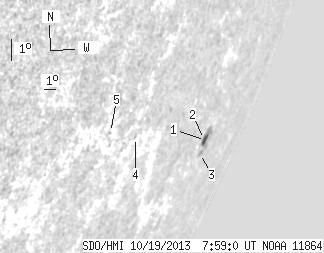

SDO HMI 2013-10-19 07:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.75 | 14.74 | 9.89 | 37.88 | -22.62 | 155.85 | 75.41 | 245.58 | 0.9812 | 36.2 | -49.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-19 07:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.57 | 11.16 | 4.20 | 29.83 | -22.63 | 156.44 | 76.00 | 245.69 | 0.9835 | -279.6 | -50.7 | |
| 2.18 | -1.00 | 5.69 | -1.00 | -22.58 | 156.21 | 75.77 | 245.71 | 0.9828 | 290.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 6.12 | -23.07 | 156.50 | 76.06 | 245.27 | 0.9840 | -112.0 | -81.3 | |
| 0.00 | 0.61 | 0.00 | 0.95 | -21.73 | 147.97 | 67.53 | 244.87 | 0.9496 | 361.0 | 374.6 | |
| 0.00 | 0.70 | 0.00 | 0.98 | -21.35 | 145.60 | 65.16 | 244.68 | 0.9366 | -258.0 | -238.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
