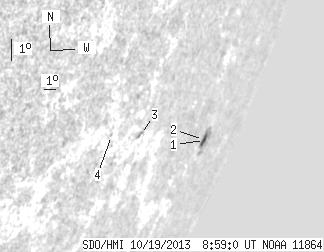

SDO HMI 2013-10-19 08:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.53 | 17.79 | 12.53 | 45.87 | -22.47 | 155.30 | 75.40 | 245.73 | 0.9808 | 71.2 | -33.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-10-19 08:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.74 | 14.47 | 4.90 | 40.60 | -22.61 | 156.40 | 76.51 | 245.80 | 0.9849 | -272.6 | -92.2 | |
| 2.79 | -1.00 | 7.63 | -1.00 | -22.56 | 156.17 | 76.27 | 245.81 | 0.9843 | 279.6 | 999999 | |
| 0.00 | 2.88 | 0.00 | 4.65 | -21.63 | 148.19 | 68.30 | 245.15 | 0.9532 | 424.0 | 341.5 | |
| 0.00 | 0.44 | 0.00 | 0.62 | -21.43 | 145.58 | 65.69 | 244.73 | 0.9396 | -187.0 | -201.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
