group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
2.96 | 9.05 | 6.00 | 19.40 | -21.85 | 146.45 | 73.16 | 245.96 | 0.9735 | -157.2 | 158.3 |
previous
or next observation for the same group /

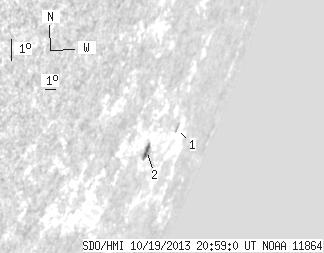

back to the solar disc SDO HMI 2013-10-19 20:59:00 UT ![]() See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
0.00 | 2.26 | 0.00 | 5.60 | -21.54 | 148.61 | 75.32 | 246.67 | 0.9808 | 483.0 | 386.4 | |
2.96 | 6.79 | 6.00 | 13.80 | -21.97 | 145.57 | 72.28 | 245.67 | 0.9706 | -263.9 | -5.5 |
Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
B | - Heliographic latitude B; positive: North, negative: South | |
L | - Heliographic longitude L | |
LCM | - Longitudinal distance from the Sun's central meridian | |
Pos. angle | - Position angle | |
r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. |
