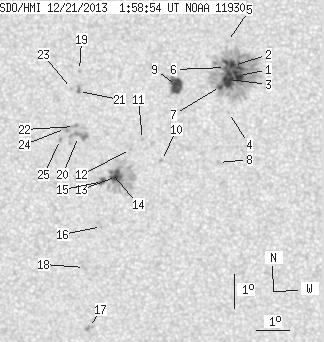

SDO HMI 2013-12-21 01:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.60 | 294.93 | 33.51 | 148.80 | -10.14 | 326.60 | -6.68 | 142.70 | 0.1877 | 349.5 | 37.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-12-21 01:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.29 | 174.75 | 5.16 | 87.65 | -9.19 | 328.24 | -5.04 | 146.46 | 0.1576 | 1369.2 | 406.2 | |
| 12.33 | -1.00 | 6.18 | -1.00 | -8.89 | 328.09 | -5.18 | 144.61 | 0.1548 | 1260.0 | 999999 | |
| 14.88 | -1.00 | 7.47 | -1.00 | -9.31 | 327.94 | -5.34 | 145.34 | 0.1623 | 1205.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -10.29 | 327.92 | -5.36 | 148.48 | 0.1766 | 613.0 | 377.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -8.18 | 327.93 | -5.35 | 140.82 | 0.1468 | 855.0 | 643.5 | |
| 1.70 | -1.00 | 0.85 | -1.00 | -8.95 | 327.85 | -5.42 | 143.60 | 0.1581 | 986.5 | 999999 | |
| 2.30 | -1.00 | 1.15 | -1.00 | -9.51 | 327.69 | -5.58 | 144.88 | 0.1676 | 877.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -11.78 | 327.59 | -5.69 | 151.06 | 0.2015 | 725.0 | 559.4 | |
| 12.76 | 19.22 | 6.42 | 9.68 | -9.48 | 326.37 | -6.91 | 138.89 | 0.1812 | 1143.5 | 681.3 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -11.72 | 325.86 | -7.42 | 144.08 | 0.2164 | 784.0 | 644.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -11.08 | 325.30 | -7.97 | 140.24 | 0.2139 | -903.0 | -681.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -11.38 | 324.93 | -8.35 | 139.86 | 0.2218 | -920.0 | -684.7 | |
| 8.50 | 62.59 | 4.33 | 31.90 | -12.19 | 324.48 | -8.80 | 140.70 | 0.2372 | -1185.3 | -488.8 | |
| 0.60 | -13.00 | 0.30 | -13.00 | -12.07 | 324.33 | -8.95 | 139.90 | 0.2372 | -1061.3 | 999999 | |
| 2.64 | -13.00 | 1.35 | -13.00 | -12.34 | 324.04 | -9.23 | 139.76 | 0.2438 | -936.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.69 | 323.96 | -9.32 | 142.96 | 0.2623 | -766.0 | -614.8 | |
| 0.00 | 3.15 | 0.00 | 1.64 | -16.75 | 323.44 | -9.83 | 147.87 | 0.3089 | -955.0 | -833.1 | |
| 0.00 | 2.30 | 0.00 | 1.19 | -14.92 | 323.38 | -9.90 | 144.11 | 0.2846 | -494.0 | -627.1 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -9.02 | 323.45 | -9.82 | 127.25 | 0.2127 | -885.0 | -740.3 | |
| 0.00 | 11.99 | 0.00 | 6.11 | -10.98 | 323.36 | -9.92 | 133.79 | 0.2353 | -751.0 | -866.2 | |
| 0.60 | 3.57 | 0.30 | 1.81 | -9.64 | 323.41 | -9.87 | 129.41 | 0.2198 | -1073.7 | -885.6 | |
| 0.00 | 2.89 | 0.00 | 1.47 | -10.68 | 323.25 | -10.03 | 132.52 | 0.2332 | -953.0 | -770.7 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -9.55 | 323.20 | -10.08 | 128.51 | 0.2216 | -779.0 | -625.4 | |
| 0.00 | 3.74 | 0.00 | 1.91 | -10.74 | 322.97 | -10.30 | 131.95 | 0.2374 | -789.0 | -805.7 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -11.07 | 322.81 | -10.47 | 132.53 | 0.2431 | -1001.0 | -870.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
