SDO HMI 2014-01-01 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.99 | 36.61 | 12.17 | 56.59 | -11.52 | 117.94 | -71.53 | 101.16 | 0.9479 | 336.7 | 166.8 | |
|
next observation for the same group /

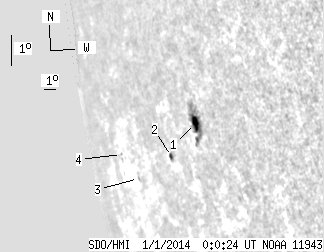

back to the solar disc SDO HMI 2014-01-01 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.29 | 31.52 | 9.25 | 46.36 | -11.36 | 118.93 | -70.54 | 100.99 | 0.9432 | 539.2 | 232.6 | |
| 1.70 | 3.06 | 2.92 | 5.25 | -12.21 | 116.00 | -73.48 | 101.85 | 0.9587 | 143.5 | 130.5 | |
| 0.00 | 1.27 | 0.00 | 2.93 | -12.65 | 111.48 | -77.99 | 102.30 | 0.9778 | -429.0 | -393.3 | |
| 0.00 | 0.76 | 0.00 | 2.05 | -11.83 | 109.67 | -79.80 | 101.48 | 0.9838 | -206.0 | -180.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
