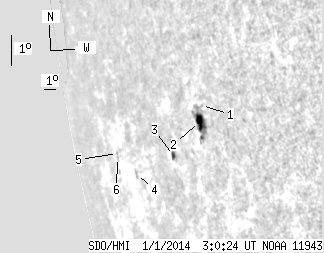

SDO HMI 2014-01-01 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.53 | 33.64 | 14.86 | 49.80 | -11.62 | 117.16 | -70.67 | 101.28 | 0.9426 | 350.9 | 140.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-01 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.91 | -10.90 | 119.34 | -68.49 | 100.53 | 0.9308 | 214.0 | 242.1 | |
| 8.07 | 24.90 | 11.00 | 33.89 | -11.36 | 118.94 | -68.89 | 101.02 | 0.9334 | 551.6 | 297.0 | |
| 2.46 | 4.16 | 3.86 | 6.51 | -12.24 | 116.05 | -71.78 | 101.90 | 0.9501 | 293.3 | 147.6 | |
| 0.00 | 2.12 | 0.00 | 4.31 | -12.60 | 111.65 | -76.18 | 102.23 | 0.9708 | -449.0 | -429.9 | |
| 0.00 | 0.76 | 0.00 | 1.79 | -11.87 | 109.73 | -78.10 | 101.49 | 0.9782 | -257.0 | -183.9 | |
| 0.00 | 1.02 | 0.00 | 2.39 | -11.98 | 109.61 | -78.22 | 101.61 | 0.9786 | -91.0 | -137.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
