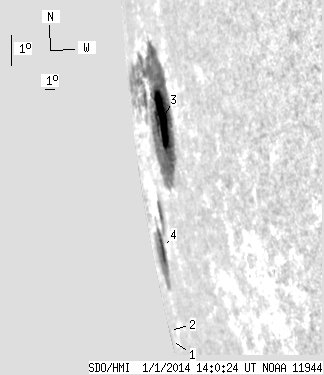

SDO HMI 2014-01-01 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.85 | 337.13 | 302.18 | 1203.28 | -8.21 | 100.92 | -80.90 | 97.81 | 0.9866 | 37.5 | -23.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-01 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 13.79 | -13.48 | 92.03 | -89.79 | 103.45 | 0.9999 | -65.0 | -116.8 | |
| 0.00 | 0.25 | 0.00 | 4.86 | -13.21 | 92.70 | -89.12 | 103.15 | 0.9997 | -181.0 | -156.0 | |
| 34.24 | 279.78 | 94.10 | 921.32 | -7.32 | 102.02 | -79.80 | 96.88 | 0.9841 | 328.6 | -21.7 | |
| 44.61 | 56.42 | 208.08 | 263.31 | -10.96 | 97.70 | -84.12 | 100.69 | 0.9944 | -92.6 | -20.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
