SDO HMI 2014-01-01 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.86 | 40.08 | 15.80 | 42.42 | -11.86 | 116.91 | -62.15 | 101.82 | 0.8843 | 406.7 | 227.3 | |
|
previous
or next observation for the same group /

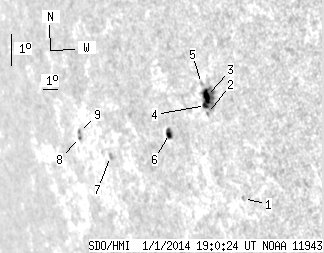

back to the solar disc SDO HMI 2014-01-01 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 1.56 | -14.48 | 120.14 | -58.92 | 105.04 | 0.8607 | 192.0 | 277.4 | |
| 0.34 | 1.44 | 0.34 | 1.43 | -11.86 | 119.03 | -60.03 | 101.92 | 0.8685 | 325.8 | 335.1 | |
| 6.03 | 23.44 | 5.96 | 23.09 | -11.36 | 119.15 | -59.91 | 101.35 | 0.8673 | 820.1 | 457.9 | |
| 2.38 | -3.00 | 2.36 | -3.00 | -11.62 | 118.99 | -60.07 | 101.64 | 0.8687 | 597.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.26 | -10.96 | 118.98 | -60.08 | 100.88 | 0.8685 | -32.0 | 49.9 | |
| 4.33 | 5.52 | 4.67 | 5.95 | -12.34 | 116.42 | -62.64 | 102.31 | 0.8899 | 460.3 | 239.5 | |
| 0.00 | 2.38 | 0.00 | 3.01 | -12.82 | 111.95 | -67.11 | 102.62 | 0.9222 | -382.0 | -305.8 | |
| 1.02 | 4.42 | 1.41 | 6.12 | -12.14 | 109.78 | -69.28 | 101.82 | 0.9358 | -259.0 | -262.4 | |
| 0.76 | -8.00 | 1.06 | -8.00 | -11.97 | 109.88 | -69.18 | 101.64 | 0.9352 | -230.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
