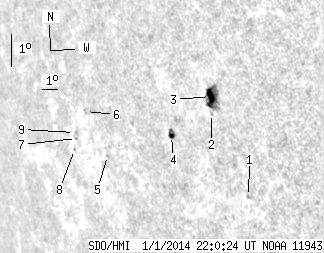

SDO HMI 2014-01-01 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.59 | 38.13 | 9.24 | 38.02 | -11.75 | 117.21 | -60.19 | 101.78 | 0.8684 | 380.7 | 277.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-01 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 1.10 | -14.42 | 120.19 | -57.21 | 105.14 | 0.8456 | 343.0 | 378.5 | |
| 0.00 | 1.19 | 0.00 | 1.13 | -11.86 | 119.03 | -58.37 | 102.02 | 0.8540 | 380.0 | 364.2 | |
| 7.13 | 24.80 | 6.72 | 23.30 | -11.36 | 119.15 | -58.25 | 101.44 | 0.8528 | 858.2 | 484.9 | |
| 2.46 | 5.44 | 2.52 | 5.55 | -12.40 | 116.42 | -60.98 | 102.47 | 0.8767 | 498.4 | 417.8 | |
| 0.00 | 1.10 | 0.00 | 1.32 | -12.79 | 111.91 | -65.49 | 102.65 | 0.9112 | -375.0 | -380.6 | |
| 0.00 | 1.87 | 0.00 | 2.31 | -11.42 | 110.93 | -66.47 | 101.11 | 0.9176 | -396.0 | -332.9 | |
| 0.00 | 1.10 | 0.00 | 1.43 | -12.18 | 109.85 | -67.55 | 101.90 | 0.9249 | -251.0 | -328.9 | |
| 0.00 | 0.93 | 0.00 | 1.22 | -12.49 | 109.52 | -67.88 | 102.23 | 0.9271 | -153.0 | -149.9 | |
| 0.00 | 0.51 | 0.00 | 0.66 | -11.99 | 109.79 | -67.61 | 101.70 | 0.9253 | -388.0 | -366.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
