SDO HMI 2014-01-02 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.28 | 730.62 | 339.15 | 1603.85 | -8.36 | 99.08 | -76.67 | 97.85 | 0.9713 | 66.5 | -4.3 | |
|
previous
or next observation for the same group /

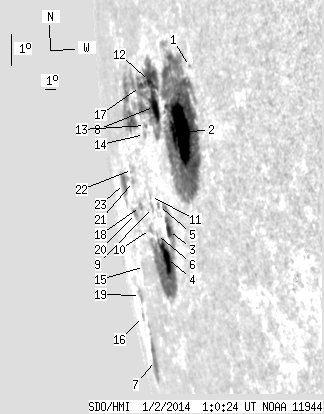

back to the solar disc SDO HMI 2014-01-02 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 1.76 | -5.50 | 103.60 | -72.15 | 94.77 | 0.9522 | -181.0 | -158.4 | |
| 64.65 | 527.25 | 112.88 | 1022.95 | -7.37 | 101.96 | -73.79 | 96.77 | 0.9603 | 573.0 | 61.6 | |
| 5.01 | 113.84 | 10.65 | 263.01 | -10.14 | 98.84 | -76.91 | 99.69 | 0.9737 | 597.6 | -23.5 | |
| 14.78 | -3.00 | 33.88 | -3.00 | -10.93 | 97.89 | -77.86 | 100.51 | 0.9773 | 139.7 | 999999 | |
| 0.93 | 1.61 | 2.12 | 3.65 | -9.35 | 98.07 | -77.68 | 98.89 | 0.9767 | 319.9 | 306.8 | |
| 0.00 | 0.93 | 0.00 | 2.27 | -10.17 | 97.08 | -78.67 | 99.74 | 0.9802 | 41.0 | 97.8 | |
| 14.44 | 22.51 | 63.56 | 98.60 | -13.70 | 91.82 | -83.93 | 103.44 | 0.9938 | -377.3 | -283.4 | |
| 16.91 | -2.00 | 35.01 | -2.00 | -6.46 | 99.32 | -76.43 | 95.89 | 0.9721 | 140.0 | 999999 | |
| 0.00 | 3.06 | 0.00 | 7.46 | -9.36 | 97.17 | -78.58 | 98.92 | 0.9799 | -127.0 | -168.4 | |
| 1.78 | 4.33 | 4.65 | 11.23 | -9.98 | 96.29 | -79.46 | 99.56 | 0.9828 | -402.0 | -286.9 | |
| 0.00 | 1.87 | 0.00 | 4.57 | -9.03 | 97.13 | -78.62 | 98.58 | 0.9801 | -61.0 | -63.9 | |
| 3.06 | -2.00 | 6.49 | -2.00 | -5.70 | 99.02 | -76.73 | 95.12 | 0.9734 | -79.0 | 999999 | |
| 0.93 | 2.63 | 2.16 | 6.11 | -6.95 | 97.83 | -77.92 | 96.43 | 0.9778 | -209.5 | -262.9 | |
| 0.00 | 2.89 | 0.00 | 6.81 | -7.20 | 97.53 | -78.22 | 96.70 | 0.9789 | -338.0 | -261.6 | |
| 0.00 | 4.25 | 0.00 | 14.07 | -10.97 | 94.00 | -81.75 | 100.63 | 0.9892 | -296.0 | -273.2 | |
| 0.00 | 2.04 | 0.00 | 9.54 | -12.33 | 91.31 | -84.44 | 102.08 | 0.9948 | -170.0 | -196.2 | |
| 2.97 | -2.00 | 6.95 | -2.00 | -5.78 | 97.73 | -78.02 | 95.24 | 0.9783 | -592.3 | 999999 | |
| 2.21 | 11.72 | 6.34 | 36.32 | -9.23 | 95.26 | -80.50 | 98.83 | 0.9860 | -286.3 | -383.9 | |
| 0.00 | 4.93 | 0.00 | 21.57 | -11.72 | 91.73 | -84.02 | 101.45 | 0.9941 | -441.0 | -410.3 | |
| 3.06 | -18.00 | 10.00 | -18.00 | -9.38 | 94.10 | -81.65 | 99.02 | 0.9891 | -450.2 | 999999 | |
| 1.02 | 4.50 | 3.15 | 13.89 | -8.45 | 94.68 | -81.07 | 98.06 | 0.9876 | -315.3 | -309.0 | |
| 0.00 | 4.08 | 0.00 | 12.46 | -8.10 | 94.82 | -80.93 | 97.70 | 0.9873 | -313.0 | -385.4 | |
| 10.53 | 17.08 | 41.31 | 67.58 | -8.41 | 92.72 | -83.03 | 98.08 | 0.9924 | -437.4 | -274.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
