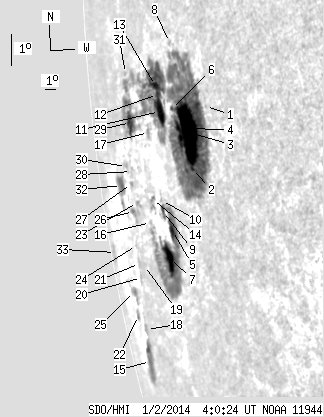

SDO HMI 2014-01-02 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166.02 | 835.61 | 356.76 | 1650.69 | -8.36 | 98.53 | -75.58 | 97.82 | 0.9664 | 70.7 | 8.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-02 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 2.33 | -6.68 | 103.98 | -70.14 | 95.97 | 0.9407 | 398.0 | 347.6 | |
| 1.44 | 589.36 | 2.29 | 1033.12 | -8.43 | 102.07 | -72.04 | 97.84 | 0.9513 | 963.6 | 70.9 | |
| 63.99 | -2.00 | 101.42 | -2.00 | -7.36 | 102.15 | -71.96 | 96.72 | 0.9509 | 648.2 | 999999 | |
| 1.78 | -2.00 | 2.97 | -2.00 | -7.19 | 101.21 | -72.90 | 96.56 | 0.9558 | -278.4 | 999999 | |
| 7.05 | 141.75 | 13.39 | 287.77 | -10.12 | 98.95 | -75.16 | 99.64 | 0.9664 | 663.1 | 3.7 | |
| 1.19 | -2.00 | 2.03 | -2.00 | -6.57 | 100.74 | -73.37 | 95.92 | 0.9583 | -125.1 | 999999 | |
| 15.38 | -5.00 | 31.04 | -5.00 | -10.92 | 98.00 | -76.11 | 100.47 | 0.9705 | 234.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 2.42 | -4.64 | 101.18 | -72.94 | 93.88 | 0.9564 | -252.0 | -282.9 | |
| 3.48 | -5.00 | 6.90 | -5.00 | -9.52 | 98.27 | -75.84 | 99.02 | 0.9694 | 389.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 3.38 | -9.19 | 98.24 | -75.87 | 98.68 | 0.9695 | 289.0 | 256.2 | |
| 15.13 | -2.00 | 27.86 | -2.00 | -6.59 | 99.41 | -74.70 | 95.97 | 0.9646 | 180.8 | 999999 | |
| 3.14 | -2.00 | 5.80 | -2.00 | -6.09 | 99.39 | -74.72 | 95.45 | 0.9648 | 294.0 | 999999 | |
| 4.84 | -2.00 | 9.06 | -2.00 | -5.81 | 99.27 | -74.84 | 95.17 | 0.9654 | 92.4 | 999999 | |
| 1.70 | 6.29 | 3.64 | 13.49 | -9.10 | 97.13 | -76.98 | 98.61 | 0.9740 | -185.2 | -187.4 | |
| 18.87 | 24.22 | 67.71 | 87.10 | -13.69 | 91.48 | -82.63 | 103.39 | 0.9911 | -416.6 | -261.7 | |
| 0.00 | 1.36 | 0.00 | 3.07 | -9.75 | 96.36 | -77.75 | 99.29 | 0.9769 | -429.0 | -356.5 | |
| 0.00 | 4.67 | 0.00 | 9.59 | -7.13 | 97.82 | -76.29 | 96.57 | 0.9715 | -256.0 | -253.2 | |
| 0.00 | 3.31 | 0.00 | 10.99 | -12.75 | 92.22 | -81.89 | 102.43 | 0.9894 | -348.0 | -375.8 | |
| 0.00 | 1.61 | 0.00 | 4.34 | -10.93 | 94.29 | -79.82 | 100.54 | 0.9838 | -247.0 | -246.6 | |
| 0.00 | 2.80 | 0.00 | 8.30 | -11.24 | 93.37 | -80.74 | 100.87 | 0.9865 | -410.0 | -412.5 | |
| 0.00 | 2.46 | 0.00 | 7.23 | -10.83 | 93.50 | -80.61 | 100.45 | 0.9862 | -342.0 | -340.1 | |
| 1.78 | 3.40 | 6.77 | 12.82 | -12.27 | 91.16 | -82.95 | 101.97 | 0.9919 | -178.1 | -241.3 | |
| 0.76 | 2.55 | 1.95 | 6.48 | -9.07 | 94.93 | -79.18 | 98.63 | 0.9819 | -458.7 | -329.1 | |
| 0.00 | 0.85 | 0.00 | 2.48 | -10.29 | 93.56 | -80.55 | 99.90 | 0.9860 | -486.0 | -463.1 | |
| 2.55 | 7.14 | 9.30 | 25.81 | -11.56 | 91.40 | -82.71 | 101.25 | 0.9915 | -479.4 | -401.4 | |
| 1.27 | 7.39 | 3.55 | 19.97 | -9.29 | 94.05 | -80.06 | 98.88 | 0.9847 | -468.1 | -346.9 | |
| 0.76 | 2.21 | 2.05 | 5.90 | -8.48 | 94.44 | -79.67 | 98.04 | 0.9836 | -395.9 | -358.1 | |
| 0.00 | 2.72 | 0.00 | 7.09 | -8.13 | 94.72 | -79.39 | 97.68 | 0.9827 | -352.0 | -347.6 | |
| 11.22 | -2.00 | 27.45 | -2.00 | -6.71 | 95.54 | -78.57 | 96.21 | 0.9801 | -421.8 | 999999 | |
| 0.00 | 3.65 | 0.00 | 10.28 | -7.94 | 94.01 | -80.10 | 97.51 | 0.9849 | -341.0 | -362.0 | |
| 0.00 | 1.36 | 0.00 | 3.35 | -5.26 | 95.55 | -78.56 | 94.72 | 0.9803 | -173.0 | -194.6 | |
| 9.69 | 18.19 | 31.58 | 59.54 | -8.44 | 92.59 | -81.52 | 98.06 | 0.9888 | -467.6 | -290.9 | |
| 0.00 | 3.57 | 0.00 | 23.84 | -10.20 | 88.05 | -86.06 | 100.00 | 0.9974 | 119.0 | 126.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
