SDO HMI 2014-01-02 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 261.83 | 1360.56 | 341.37 | 1811.92 | -8.60 | 98.30 | -68.14 | 97.98 | 0.9259 | 176.5 | -23.5 | |
|
previous
or next observation for the same group /

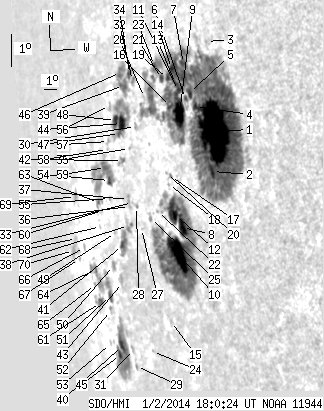

back to the solar disc SDO HMI 2014-01-02 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.28 | 789.53 | 116.68 | 923.14 | -7.48 | 102.31 | -64.13 | 96.76 | 0.9003 | 664.3 | 113.6 | |
| 5.44 | -1.00 | 6.25 | -1.00 | -8.64 | 101.82 | -64.62 | 98.06 | 0.9040 | 511.6 | 999999 | |
| 0.00 | 0.93 | 0.00 | 1.05 | -4.81 | 102.37 | -64.08 | 93.79 | 0.9000 | -151.0 | -118.3 | |
| 2.38 | -1.00 | 2.80 | -1.00 | -6.68 | 101.19 | -65.25 | 95.88 | 0.9086 | 243.2 | 999999 | |
| 3.91 | -1.00 | 4.65 | -1.00 | -6.25 | 100.87 | -65.58 | 95.41 | 0.9109 | 376.8 | 999999 | |
| 1.70 | -1.00 | 2.04 | -1.00 | -6.41 | 100.53 | -65.91 | 95.59 | 0.9133 | 424.4 | 999999 | |
| 4.67 | -1.00 | 5.61 | -1.00 | -5.37 | 100.63 | -65.81 | 94.45 | 0.9127 | -551.8 | 999999 | |
| 9.94 | 256.66 | 12.72 | 339.36 | -10.18 | 99.01 | -67.44 | 99.70 | 0.9238 | 809.2 | 67.0 | |
| 20.81 | -1.00 | 25.63 | -1.00 | -6.82 | 99.98 | -66.47 | 96.05 | 0.9172 | 329.1 | 999999 | |
| 31.59 | -8.00 | 41.65 | -8.00 | -10.92 | 98.34 | -68.10 | 100.49 | 0.9282 | 406.1 | 999999 | |
| 2.12 | -1.00 | 2.60 | -1.00 | -6.15 | 100.08 | -66.36 | 95.31 | 0.9165 | 327.1 | 999999 | |
| 3.99 | -8.00 | 5.20 | -8.00 | -9.80 | 98.61 | -67.83 | 99.28 | 0.9263 | 564.9 | 999999 | |
| 0.93 | -1.00 | 1.15 | -1.00 | -5.93 | 99.91 | -66.53 | 95.08 | 0.9177 | 111.4 | 999999 | |
| 2.63 | -1.00 | 3.27 | -1.00 | -5.47 | 99.71 | -66.73 | 94.58 | 0.9191 | -733.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 1.21 | -12.88 | 96.65 | -69.79 | 102.56 | 0.9388 | -197.0 | -258.9 | |
| 2.38 | -1.00 | 3.01 | -1.00 | -6.58 | 99.36 | -67.09 | 95.80 | 0.9214 | -248.2 | 999999 | |
| 0.59 | 1.61 | 0.77 | 2.09 | -8.63 | 98.68 | -67.76 | 98.03 | 0.9258 | 461.6 | 390.5 | |
| 0.00 | 0.85 | 0.00 | 1.11 | -8.86 | 98.44 | -68.01 | 98.27 | 0.9274 | 257.0 | 215.0 | |
| 1.61 | -1.00 | 2.04 | -1.00 | -5.75 | 99.34 | -67.10 | 94.89 | 0.9216 | -177.1 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.78 | -8.53 | 98.40 | -68.04 | 97.91 | 0.9276 | 265.0 | 249.9 | |
| 2.63 | -1.00 | 3.39 | -1.00 | -5.73 | 98.88 | -67.56 | 94.88 | 0.9247 | -123.7 | 999999 | |
| 0.00 | 0.93 | 0.00 | 1.29 | -9.60 | 97.21 | -69.23 | 99.06 | 0.9352 | -23.0 | -54.8 | |
| 1.53 | -1.00 | 2.01 | -1.00 | -5.32 | 98.42 | -68.02 | 94.45 | 0.9277 | -513.9 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.81 | -13.67 | 94.31 | -72.13 | 103.34 | 0.9518 | 65.0 | 101.2 | |
| 0.85 | 2.97 | 1.21 | 4.24 | -9.78 | 96.52 | -69.92 | 99.25 | 0.9393 | 51.4 | -47.2 | |
| 0.00 | 2.38 | 0.00 | 3.26 | -6.21 | 97.37 | -69.07 | 95.43 | 0.9343 | -377.0 | -399.1 | |
| 0.00 | 0.51 | 0.00 | 0.76 | -10.03 | 95.58 | -70.86 | 99.51 | 0.9447 | -143.0 | -105.7 | |
| 0.00 | 1.44 | 0.00 | 2.16 | -9.36 | 95.45 | -70.99 | 98.81 | 0.9455 | -127.0 | -110.1 | |
| 0.00 | 1.44 | 0.00 | 2.57 | -14.02 | 92.32 | -74.13 | 103.68 | 0.9617 | -343.0 | -337.6 | |
| 0.00 | 2.38 | 0.00 | 3.42 | -7.02 | 96.33 | -70.11 | 96.31 | 0.9405 | -596.0 | -529.9 | |
| 0.00 | 2.29 | 0.00 | 4.06 | -13.51 | 92.43 | -74.02 | 103.15 | 0.9612 | -482.0 | -445.0 | |
| 1.61 | 34.82 | 2.30 | 51.49 | -5.66 | 96.49 | -69.95 | 94.86 | 0.9397 | -536.9 | -415.2 | |
| 0.00 | 0.42 | 0.00 | 0.65 | -9.23 | 95.14 | -71.30 | 98.66 | 0.9472 | -178.0 | -201.0 | |
| 3.40 | -32.00 | 4.92 | -32.00 | -5.45 | 96.29 | -70.15 | 94.63 | 0.9409 | -151.2 | 999999 | |
| 0.00 | 0.93 | 0.00 | 1.40 | -7.64 | 95.56 | -70.88 | 96.98 | 0.9449 | -457.0 | -473.2 | |
| 0.00 | 1.02 | 0.00 | 1.58 | -9.33 | 94.80 | -71.64 | 98.77 | 0.9490 | -348.0 | -331.8 | |
| 0.00 | 2.55 | 0.00 | 3.95 | -9.12 | 94.81 | -71.63 | 98.55 | 0.9490 | -462.0 | -426.1 | |
| 0.00 | 6.20 | 0.00 | 9.80 | -9.88 | 94.42 | -72.03 | 99.35 | 0.9511 | -486.0 | -414.6 | |
| 5.86 | -32.00 | 8.72 | -32.00 | -5.77 | 95.66 | -70.78 | 94.99 | 0.9446 | -706.9 | 999999 | |
| 4.33 | 56.39 | 8.21 | 107.32 | -13.33 | 91.31 | -75.13 | 102.95 | 0.9662 | -687.5 | -342.2 | |
| 2.29 | 14.61 | 3.81 | 24.08 | -10.43 | 93.49 | -72.95 | 99.93 | 0.9559 | -569.7 | -524.4 | |
| 1.70 | 4.42 | 2.64 | 6.90 | -7.95 | 94.77 | -71.67 | 97.32 | 0.9493 | -69.7 | -300.9 | |
| 0.00 | 7.30 | 0.00 | 12.65 | -11.50 | 92.78 | -73.66 | 101.06 | 0.9594 | -557.0 | -516.4 | |
| 6.71 | 47.82 | 10.24 | 73.33 | -6.87 | 95.11 | -71.33 | 96.17 | 0.9475 | -607.8 | -251.8 | |
| 2.80 | -40.00 | 5.48 | -40.00 | -13.58 | 90.83 | -75.61 | 103.20 | 0.9683 | -137.6 | 999999 | |
| 5.52 | -32.00 | 8.28 | -32.00 | -5.37 | 95.50 | -70.95 | 94.58 | 0.9455 | -408.5 | 999999 | |
| 2.63 | -44.00 | 4.08 | -44.00 | -7.15 | 94.81 | -71.63 | 96.47 | 0.9491 | -385.9 | 999999 | |
| 4.16 | -44.00 | 6.54 | -44.00 | -6.75 | 94.58 | -71.86 | 96.06 | 0.9504 | -74.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 1.74 | -10.01 | 93.01 | -73.44 | 99.50 | 0.9583 | -135.0 | -228.1 | |
| 1.78 | 3.65 | 3.19 | 6.55 | -10.96 | 92.17 | -74.28 | 100.49 | 0.9623 | -462.6 | -444.3 | |
| 3.57 | 29.22 | 6.79 | 58.08 | -11.81 | 91.17 | -75.27 | 101.38 | 0.9668 | -520.6 | -451.1 | |
| 0.00 | 1.87 | 0.00 | 3.63 | -12.24 | 90.81 | -75.63 | 101.82 | 0.9684 | -541.0 | -442.0 | |
| 0.00 | 0.93 | 0.00 | 1.93 | -13.19 | 89.92 | -76.52 | 102.81 | 0.9720 | -11.0 | -26.0 | |
| 2.72 | 45.86 | 4.59 | 80.90 | -8.47 | 93.23 | -73.21 | 97.88 | 0.9573 | -553.7 | -359.1 | |
| 0.00 | 0.85 | 0.00 | 1.46 | -8.99 | 92.95 | -73.49 | 98.43 | 0.9586 | -371.0 | -375.1 | |
| 0.00 | 1.78 | 0.00 | 2.87 | -6.28 | 94.16 | -72.28 | 95.57 | 0.9527 | -211.0 | -181.1 | |
| 0.00 | 1.87 | 0.00 | 3.09 | -7.33 | 93.65 | -72.79 | 96.68 | 0.9552 | -135.0 | -39.3 | |
| 0.00 | 0.85 | 0.00 | 1.42 | -7.56 | 93.45 | -72.99 | 96.92 | 0.9562 | 58.0 | 96.8 | |
| 3.57 | -54.00 | 6.10 | -54.00 | -8.07 | 93.00 | -73.44 | 97.47 | 0.9585 | -642.8 | 999999 | |
| 0.00 | 0.68 | 0.00 | 1.23 | -9.30 | 92.00 | -74.44 | 98.77 | 0.9631 | -293.0 | -336.2 | |
| 3.23 | 7.90 | 6.73 | 16.68 | -11.95 | 89.79 | -76.66 | 101.52 | 0.9726 | -347.1 | -60.6 | |
| 0.00 | 0.76 | 0.00 | 1.43 | -9.75 | 91.49 | -74.95 | 99.24 | 0.9655 | -370.0 | -309.8 | |
| 0.85 | 5.18 | 1.57 | 9.53 | -9.04 | 91.70 | -74.74 | 98.50 | 0.9646 | -347.6 | -317.1 | |
| 1.36 | -51.00 | 2.80 | -51.00 | -10.96 | 89.98 | -76.46 | 100.51 | 0.9719 | -521.1 | 999999 | |
| 0.42 | 1.44 | 0.90 | 3.07 | -11.39 | 89.61 | -76.83 | 100.96 | 0.9733 | -95.4 | -115.8 | |
| 0.00 | 1.53 | 0.00 | 3.37 | -10.25 | 89.08 | -77.37 | 99.79 | 0.9754 | 18.0 | 70.9 | |
| 0.34 | 1.10 | 0.80 | 2.61 | -10.53 | 88.10 | -78.34 | 100.09 | 0.9790 | 135.5 | 137.9 | |
| 0.00 | 1.70 | 0.00 | 4.03 | -9.93 | 88.18 | -78.26 | 99.48 | 0.9787 | 200.0 | 217.0 | |
| 0.00 | 4.50 | 0.00 | 9.99 | -8.72 | 88.99 | -77.45 | 98.22 | 0.9759 | -125.0 | -34.6 | |
| 0.00 | 5.52 | 0.00 | 13.85 | -10.25 | 87.42 | -79.02 | 99.82 | 0.9813 | 389.0 | 366.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
