SDO HMI 2014-01-02 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 315.59 | 1495.82 | 390.48 | 1866.10 | -8.55 | 98.13 | -66.65 | 97.91 | 0.9160 | 185.6 | -7.0 | |
|
previous
or next observation for the same group /

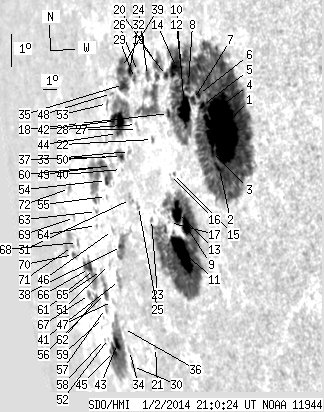

back to the solar disc SDO HMI 2014-01-02 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.80 | 839.79 | 115.80 | 921.34 | -7.48 | 102.36 | -62.43 | 96.76 | 0.8870 | 831.0 | 149.6 | |
| 5.35 | -1.00 | 5.78 | -1.00 | -8.62 | 101.91 | -62.87 | 98.04 | 0.8906 | 541.5 | 999999 | |
| 1.27 | -1.00 | 1.39 | -1.00 | -8.10 | 101.60 | -63.18 | 97.45 | 0.8930 | 26.9 | 999999 | |
| 2.29 | -1.00 | 2.51 | -1.00 | -7.05 | 101.48 | -63.30 | 96.28 | 0.8939 | 4.3 | 999999 | |
| 1.95 | -1.00 | 2.15 | -1.00 | -6.71 | 101.30 | -63.49 | 95.90 | 0.8953 | 284.5 | 999999 | |
| 2.89 | -1.00 | 3.21 | -1.00 | -6.38 | 101.10 | -63.68 | 95.53 | 0.8968 | 409.4 | 999999 | |
| 3.06 | -1.00 | 3.44 | -1.00 | -6.51 | 100.73 | -64.05 | 95.67 | 0.8996 | 509.8 | 999999 | |
| 1.78 | -1.00 | 2.02 | -1.00 | -5.99 | 100.51 | -64.27 | 95.10 | 0.9014 | 343.8 | 999999 | |
| 9.94 | 289.10 | 11.90 | 356.25 | -10.21 | 99.05 | -65.73 | 99.76 | 0.9121 | 889.3 | 82.0 | |
| 21.49 | -1.00 | 24.74 | -1.00 | -6.77 | 100.04 | -64.74 | 95.97 | 0.9048 | 417.5 | 999999 | |
| 34.23 | -9.00 | 42.05 | -9.00 | -10.96 | 98.44 | -66.35 | 100.56 | 0.9165 | 520.7 | 999999 | |
| 2.38 | -1.00 | 2.74 | -1.00 | -5.97 | 100.10 | -64.69 | 95.09 | 0.9045 | 142.9 | 999999 | |
| 15.54 | -9.00 | 18.97 | -9.00 | -9.76 | 98.56 | -66.22 | 99.26 | 0.9155 | 491.0 | 999999 | |
| 18.77 | -1.00 | 21.88 | -1.00 | -5.51 | 99.77 | -65.01 | 94.58 | 0.9069 | -594.6 | 999999 | |
| 0.34 | 1.19 | 0.41 | 1.44 | -8.61 | 98.70 | -66.09 | 97.99 | 0.9145 | 459.5 | 404.5 | |
| 0.00 | 0.76 | 0.00 | 0.94 | -8.62 | 98.47 | -66.32 | 98.01 | 0.9161 | 265.0 | 249.4 | |
| 0.00 | 0.51 | 0.00 | 0.64 | -10.03 | 97.85 | -66.94 | 99.54 | 0.9204 | 144.0 | 95.5 | |
| 1.95 | -1.00 | 2.35 | -1.00 | -6.83 | 98.88 | -65.91 | 96.04 | 0.9132 | 8.5 | 999999 | |
| 2.12 | -1.00 | 2.55 | -1.00 | -5.71 | 99.01 | -65.77 | 94.81 | 0.9124 | -154.0 | 999999 | |
| 0.93 | -1.00 | 1.15 | -1.00 | -5.29 | 98.36 | -66.42 | 94.37 | 0.9170 | -458.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.84 | -13.63 | 94.73 | -70.05 | 103.34 | 0.9404 | 243.0 | 194.6 | |
| 0.00 | 1.70 | 0.00 | 2.16 | -7.53 | 97.46 | -67.33 | 96.82 | 0.9230 | 14.0 | 5.8 | |
| 0.42 | 1.53 | 0.56 | 2.03 | -9.87 | 96.48 | -68.30 | 99.35 | 0.9293 | 71.6 | -24.3 | |
| 2.89 | 5.61 | 3.66 | 7.10 | -5.63 | 97.60 | -67.18 | 94.76 | 0.9222 | -361.1 | -289.1 | |
| 0.00 | 2.12 | 0.00 | 2.93 | -9.43 | 95.59 | -69.19 | 98.87 | 0.9349 | -3.0 | -114.2 | |
| 0.34 | 1.10 | 0.44 | 1.44 | -5.48 | 96.85 | -67.93 | 94.61 | 0.9271 | -582.2 | -476.7 | |
| 0.00 | 1.10 | 0.00 | 1.47 | -7.17 | 96.37 | -68.41 | 96.45 | 0.9301 | -626.0 | -556.3 | |
| 0.00 | 1.61 | 0.00 | 2.16 | -7.02 | 96.34 | -68.45 | 96.28 | 0.9303 | -532.0 | -483.4 | |
| 1.53 | 45.69 | 2.02 | 62.34 | -5.67 | 96.56 | -68.22 | 94.82 | 0.9290 | -613.7 | -391.0 | |
| 0.00 | 2.29 | 0.00 | 3.74 | -14.07 | 92.18 | -72.60 | 103.75 | 0.9543 | -491.0 | -380.0 | |
| 0.00 | 4.33 | 0.00 | 6.13 | -9.19 | 95.00 | -69.78 | 98.61 | 0.9384 | -431.0 | -361.5 | |
| 3.57 | -29.00 | 4.79 | -29.00 | -5.41 | 96.22 | -68.56 | 94.55 | 0.9312 | -132.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 2.36 | -7.78 | 95.49 | -69.29 | 97.11 | 0.9355 | -519.0 | -463.0 | |
| 0.00 | 2.12 | 0.00 | 3.46 | -13.59 | 92.26 | -72.52 | 103.25 | 0.9538 | -464.0 | -493.8 | |
| 7.39 | -29.00 | 10.19 | -29.00 | -5.80 | 95.62 | -69.16 | 94.98 | 0.9349 | -709.5 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.55 | -12.92 | 92.16 | -72.63 | 102.54 | 0.9543 | -194.0 | -158.2 | |
| 2.29 | 7.90 | 3.29 | 11.37 | -7.89 | 94.76 | -70.03 | 97.23 | 0.9399 | 9.4 | -335.7 | |
| 2.46 | 19.11 | 3.75 | 28.90 | -10.52 | 93.52 | -71.27 | 100.02 | 0.9470 | -635.8 | -518.9 | |
| 9.09 | -29.00 | 12.56 | -29.00 | -5.29 | 95.58 | -69.20 | 94.44 | 0.9352 | -390.7 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.86 | -8.27 | 94.60 | -70.18 | 97.64 | 0.9408 | -240.0 | -181.6 | |
| 0.00 | 9.17 | 0.00 | 14.54 | -11.50 | 92.74 | -72.05 | 101.06 | 0.9512 | -635.0 | -533.8 | |
| 13.33 | 53.25 | 19.02 | 75.54 | -6.83 | 94.88 | -69.91 | 96.10 | 0.9393 | -496.7 | -301.4 | |
| 5.78 | 65.91 | 9.97 | 114.31 | -13.32 | 91.21 | -73.58 | 102.95 | 0.9591 | -694.3 | -354.7 | |
| 0.93 | -42.00 | 1.35 | -42.00 | -7.20 | 94.66 | -70.12 | 96.50 | 0.9406 | -395.6 | 999999 | |
| 4.59 | -43.00 | 8.15 | -43.00 | -13.54 | 90.69 | -74.09 | 103.17 | 0.9615 | -271.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.99 | -10.01 | 92.94 | -71.85 | 99.48 | 0.9502 | -385.0 | -326.5 | |
| 0.00 | 0.93 | 0.00 | 1.57 | -12.08 | 91.63 | -73.15 | 101.65 | 0.9569 | -501.0 | -498.8 | |
| 0.51 | 1.10 | 0.74 | 1.60 | -6.01 | 94.52 | -70.26 | 95.23 | 0.9415 | -527.5 | -511.3 | |
| 0.00 | 2.12 | 0.00 | 3.19 | -8.11 | 93.76 | -71.02 | 97.47 | 0.9457 | -597.0 | -541.2 | |
| 0.00 | 0.85 | 0.00 | 1.28 | -7.84 | 93.69 | -71.10 | 97.19 | 0.9461 | -482.0 | -434.5 | |
| 0.00 | 1.44 | 0.00 | 2.37 | -10.98 | 92.06 | -72.73 | 100.51 | 0.9547 | -518.0 | -501.2 | |
| 0.00 | 0.68 | 0.00 | 1.23 | -13.13 | 90.36 | -74.42 | 102.74 | 0.9630 | -192.0 | -188.8 | |
| 0.68 | 3.14 | 1.01 | 4.67 | -6.28 | 94.07 | -70.71 | 95.53 | 0.9441 | -354.6 | -226.6 | |
| 2.38 | 50.19 | 3.69 | 81.18 | -8.52 | 93.11 | -71.68 | 97.92 | 0.9493 | -585.6 | -350.2 | |
| 0.00 | 1.02 | 0.00 | 1.60 | -8.99 | 92.88 | -71.90 | 98.41 | 0.9505 | -399.0 | -356.5 | |
| 2.55 | 9.85 | 4.41 | 17.03 | -11.80 | 91.07 | -73.71 | 101.37 | 0.9596 | -620.3 | -480.3 | |
| 0.00 | 2.46 | 0.00 | 4.34 | -12.24 | 90.75 | -74.04 | 101.82 | 0.9612 | -457.0 | -400.8 | |
| 0.00 | 0.51 | 0.00 | 0.95 | -13.13 | 89.89 | -74.89 | 102.74 | 0.9651 | -31.0 | -66.3 | |
| 0.00 | 0.68 | 0.00 | 1.23 | -12.49 | 90.32 | -74.46 | 102.08 | 0.9632 | -147.0 | -142.6 | |
| 5.18 | -54.00 | 8.14 | -54.00 | -8.10 | 92.91 | -71.87 | 97.47 | 0.9503 | -581.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 2.50 | -11.11 | 91.13 | -73.66 | 100.65 | 0.9594 | -553.0 | -532.8 | |
| 2.12 | 9.26 | 3.94 | 17.58 | -11.90 | 89.98 | -74.80 | 101.46 | 0.9647 | -470.4 | -136.9 | |
| 0.59 | 1.27 | 1.00 | 2.13 | -9.37 | 91.67 | -73.11 | 98.82 | 0.9567 | -482.4 | -463.0 | |
| 0.00 | 1.02 | 0.00 | 1.73 | -9.78 | 91.44 | -73.35 | 99.25 | 0.9579 | -353.0 | -327.1 | |
| 0.00 | 1.70 | 0.00 | 3.06 | -11.05 | 90.40 | -74.39 | 100.58 | 0.9628 | -588.0 | -504.8 | |
| 7.73 | 21.49 | 14.44 | 40.11 | -10.99 | 89.86 | -74.92 | 100.52 | 0.9653 | -406.5 | -359.1 | |
| 1.36 | -62.00 | 2.64 | -62.00 | -11.74 | 89.27 | -75.51 | 101.30 | 0.9678 | 38.9 | 999999 | |
| 1.10 | 2.29 | 2.17 | 4.50 | -10.16 | 89.01 | -75.77 | 99.67 | 0.9690 | 26.2 | 49.1 | |
| 0.00 | 1.95 | 0.00 | 3.82 | -9.42 | 89.16 | -75.63 | 98.90 | 0.9684 | -82.0 | 26.7 | |
| 1.19 | 3.40 | 2.46 | 7.01 | -10.48 | 88.26 | -76.53 | 100.01 | 0.9721 | 22.9 | 13.7 | |
| 0.51 | 13.08 | 1.05 | 27.93 | -10.24 | 88.31 | -76.47 | 99.76 | 0.9719 | -17.3 | 273.6 | |
| 0.00 | 2.89 | 0.00 | 5.66 | -8.55 | 89.09 | -75.69 | 98.00 | 0.9688 | -72.0 | 13.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
