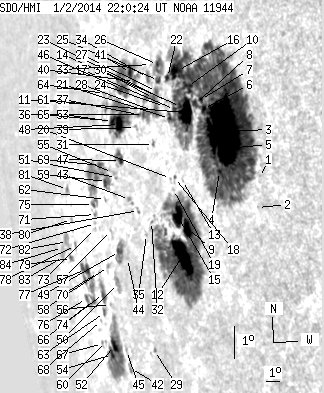

SDO HMI 2014-01-02 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 330.61 | 1573.10 | 399.38 | 1919.02 | -8.50 | 97.99 | -66.24 | 97.86 | 0.9131 | 214.2 | -11.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-02 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 1.17 | -8.92 | 104.23 | -60.00 | 98.44 | 0.8670 | 394.0 | 413.9 | |
| 0.00 | 0.42 | 0.00 | 0.42 | -9.79 | 103.86 | -60.38 | 99.44 | 0.8704 | 536.0 | 503.4 | |
| 113.73 | 819.62 | 118.69 | 872.59 | -7.46 | 102.39 | -61.84 | 96.74 | 0.8822 | 906.2 | 190.8 | |
| 1.70 | -3.00 | 1.81 | -3.00 | -8.62 | 101.82 | -62.41 | 98.05 | 0.8870 | 579.9 | 999999 | |
| 1.27 | -3.00 | 1.36 | -3.00 | -7.95 | 101.62 | -62.62 | 97.29 | 0.8885 | -13.5 | 999999 | |
| 2.46 | -3.00 | 2.67 | -3.00 | -6.72 | 101.28 | -62.96 | 95.90 | 0.8912 | 325.0 | 999999 | |
| 2.04 | -3.00 | 2.22 | -3.00 | -6.44 | 101.14 | -63.09 | 95.59 | 0.8923 | 381.0 | 999999 | |
| 3.48 | -3.00 | 3.84 | -3.00 | -6.55 | 100.78 | -63.45 | 95.71 | 0.8950 | 520.8 | 999999 | |
| 11.55 | 302.79 | 13.54 | 365.12 | -10.19 | 99.10 | -65.14 | 99.74 | 0.9079 | 940.7 | 82.6 | |
| 7.22 | -3.00 | 8.07 | -3.00 | -6.02 | 100.36 | -63.87 | 95.13 | 0.8983 | 289.3 | 999999 | |
| 22.17 | -3.00 | 25.02 | -3.00 | -6.78 | 100.05 | -64.18 | 95.97 | 0.9006 | 432.8 | 999999 | |
| 33.21 | -9.00 | 39.91 | -9.00 | -10.96 | 98.41 | -65.82 | 100.58 | 0.9129 | 535.4 | 999999 | |
| 0.00 | 0.93 | 0.00 | 1.09 | -8.76 | 99.26 | -64.97 | 98.17 | 0.9065 | 555.0 | 488.5 | |
| 2.72 | -3.00 | 3.11 | -3.00 | -6.58 | 99.75 | -64.48 | 95.76 | 0.9029 | -206.6 | 999999 | |
| 16.48 | -9.00 | 19.67 | -9.00 | -9.77 | 98.53 | -65.70 | 99.27 | 0.9119 | 539.3 | 999999 | |
| 17.50 | -3.00 | 19.97 | -3.00 | -5.52 | 99.78 | -64.45 | 94.57 | 0.9027 | -606.7 | 999999 | |
| 1.61 | -3.00 | 1.87 | -3.00 | -6.65 | 99.31 | -64.92 | 95.84 | 0.9061 | -174.5 | 999999 | |
| 0.51 | 1.36 | 0.60 | 1.61 | -8.64 | 98.72 | -65.51 | 98.04 | 0.9104 | 415.5 | 367.4 | |
| 0.00 | 0.85 | 0.00 | 1.02 | -8.99 | 98.53 | -65.71 | 98.42 | 0.9118 | 327.0 | 134.8 | |
| 0.00 | 0.76 | 0.00 | 0.92 | -8.66 | 98.42 | -65.81 | 98.05 | 0.9125 | 217.0 | 187.6 | |
| 1.44 | -3.00 | 1.70 | -3.00 | -6.90 | 98.89 | -65.34 | 96.11 | 0.9092 | 24.5 | 999999 | |
| 1.70 | -3.00 | 1.99 | -3.00 | -5.69 | 99.04 | -65.19 | 94.77 | 0.9082 | -124.2 | 999999 | |
| 0.00 | 1.10 | 0.00 | 1.30 | -6.39 | 98.88 | -65.35 | 95.55 | 0.9093 | -490.0 | -456.7 | |
| 0.00 | 1.02 | 0.00 | 1.21 | -6.53 | 98.63 | -65.61 | 95.71 | 0.9111 | -359.0 | -342.9 | |
| 3.23 | 20.38 | 3.88 | 24.43 | -5.74 | 98.38 | -65.85 | 94.85 | 0.9129 | 55.4 | -251.8 | |
| 1.19 | -25.00 | 1.43 | -25.00 | -5.27 | 98.41 | -65.82 | 94.33 | 0.9128 | -471.4 | 999999 | |
| 1.19 | 37.37 | 1.44 | 46.24 | -6.06 | 98.16 | -66.07 | 95.20 | 0.9145 | -370.8 | -350.1 | |
| 4.84 | -27.00 | 5.95 | -27.00 | -6.63 | 97.86 | -66.37 | 95.83 | 0.9165 | -462.4 | 999999 | |
| 0.59 | 1.61 | 0.83 | 2.26 | -13.63 | 94.71 | -69.52 | 103.36 | 0.9373 | 258.1 | 169.8 | |
| 2.29 | -27.00 | 2.81 | -27.00 | -6.25 | 97.89 | -66.35 | 95.41 | 0.9164 | -432.4 | 999999 | |
| 0.59 | 1.61 | 0.74 | 2.01 | -7.60 | 97.50 | -66.73 | 96.89 | 0.9189 | 58.7 | 69.6 | |
| 0.34 | 0.93 | 0.44 | 1.21 | -9.84 | 96.51 | -67.72 | 99.32 | 0.9256 | 82.8 | 52.6 | |
| 0.00 | 0.51 | 0.00 | 0.63 | -5.24 | 97.90 | -66.33 | 94.31 | 0.9164 | 213.0 | 136.3 | |
| 2.38 | 4.93 | 2.95 | 6.10 | -5.61 | 97.59 | -66.64 | 94.72 | 0.9185 | -377.1 | -297.2 | |
| 0.00 | 0.93 | 0.00 | 1.24 | -10.20 | 95.94 | -68.29 | 99.71 | 0.9293 | 106.0 | 57.6 | |
| 1.70 | -27.00 | 2.15 | -27.00 | -6.68 | 97.01 | -67.22 | 95.89 | 0.9223 | -504.5 | 999999 | |
| 0.85 | -27.00 | 1.09 | -27.00 | -6.66 | 96.62 | -67.61 | 95.88 | 0.9249 | -540.4 | 999999 | |
| 0.00 | 2.12 | 0.00 | 2.86 | -9.47 | 95.61 | -68.62 | 98.91 | 0.9313 | 68.0 | -72.2 | |
| 0.00 | 1.36 | 0.00 | 1.77 | -7.03 | 96.27 | -67.96 | 96.28 | 0.9272 | -547.0 | -471.6 | |
| 0.93 | 50.20 | 1.21 | 66.77 | -5.68 | 96.57 | -67.66 | 94.81 | 0.9253 | -647.4 | -397.2 | |
| 4.67 | -40.00 | 6.11 | -40.00 | -5.40 | 96.32 | -67.91 | 94.52 | 0.9270 | -121.8 | 999999 | |
| 0.00 | 3.57 | 0.00 | 5.66 | -14.05 | 92.16 | -72.07 | 103.73 | 0.9515 | -528.0 | -402.8 | |
| 0.76 | 3.14 | 1.06 | 4.33 | -9.11 | 95.01 | -69.22 | 98.52 | 0.9351 | -459.0 | -281.0 | |
| 0.00 | 0.76 | 0.00 | 1.11 | -10.82 | 94.00 | -70.23 | 100.35 | 0.9411 | -262.0 | -254.6 | |
| 0.00 | 2.29 | 0.00 | 3.63 | -13.50 | 92.18 | -72.05 | 103.16 | 0.9514 | -502.0 | -460.1 | |
| 7.30 | -40.00 | 9.87 | -40.00 | -5.86 | 95.55 | -68.68 | 95.03 | 0.9319 | -731.7 | 999999 | |
| 2.29 | 10.45 | 3.21 | 14.70 | -7.93 | 94.72 | -69.52 | 97.26 | 0.9369 | 64.6 | -413.4 | |
| 8.83 | 57.42 | 12.23 | 79.58 | -6.87 | 95.00 | -69.23 | 96.13 | 0.9352 | -646.5 | -352.1 | |
| 2.72 | 14.86 | 4.04 | 22.10 | -10.58 | 93.40 | -70.83 | 100.09 | 0.9445 | -662.4 | -573.1 | |
| 0.00 | 8.83 | 0.00 | 13.62 | -11.50 | 92.67 | -71.56 | 101.06 | 0.9486 | -647.0 | -573.3 | |
| 0.00 | 1.19 | 0.00 | 1.71 | -8.41 | 94.18 | -70.06 | 97.78 | 0.9401 | -682.0 | -614.0 | |
| 5.35 | 68.97 | 8.97 | 116.06 | -13.29 | 91.11 | -73.12 | 102.92 | 0.9568 | -700.2 | -364.8 | |
| 4.16 | -48.00 | 5.90 | -48.00 | -6.75 | 94.44 | -69.79 | 96.01 | 0.9386 | -182.6 | 999999 | |
| 2.63 | -52.00 | 4.53 | -52.00 | -13.54 | 90.69 | -73.54 | 103.18 | 0.9589 | -339.6 | 999999 | |
| 0.00 | 3.74 | 0.00 | 5.43 | -8.24 | 93.89 | -70.35 | 97.60 | 0.9418 | -490.0 | -506.7 | |
| 0.00 | 0.93 | 0.00 | 1.53 | -12.08 | 91.60 | -72.64 | 101.66 | 0.9543 | -553.0 | -509.6 | |
| 0.00 | 0.51 | 0.00 | 0.78 | -9.93 | 92.91 | -71.32 | 99.39 | 0.9473 | -351.0 | -335.2 | |
| 0.59 | 2.29 | 0.95 | 3.65 | -10.96 | 92.13 | -72.11 | 100.49 | 0.9515 | -453.7 | -428.9 | |
| 5.44 | 46.97 | 8.16 | 73.42 | -8.48 | 93.24 | -70.99 | 97.86 | 0.9455 | -628.6 | -337.7 | |
| 0.00 | 0.59 | 0.00 | 1.04 | -13.13 | 90.37 | -73.86 | 102.75 | 0.9604 | -193.0 | -212.1 | |
| 0.00 | 4.42 | 0.00 | 6.41 | -6.28 | 93.97 | -70.26 | 95.52 | 0.9414 | -407.0 | -304.8 | |
| 0.00 | 1.44 | 0.00 | 2.21 | -9.00 | 92.90 | -71.33 | 98.41 | 0.9473 | -307.0 | -341.2 | |
| 1.78 | 3.14 | 3.04 | 5.36 | -12.28 | 90.82 | -73.41 | 101.86 | 0.9582 | -389.8 | -314.1 | |
| 0.00 | 2.63 | 0.00 | 3.82 | -5.90 | 94.00 | -70.23 | 95.11 | 0.9413 | -33.0 | -85.4 | |
| 0.00 | 1.19 | 0.00 | 1.74 | -6.69 | 93.75 | -70.48 | 95.95 | 0.9427 | -52.0 | -55.8 | |
| 6.62 | 11.55 | 11.11 | 19.39 | -11.72 | 91.12 | -73.11 | 101.28 | 0.9567 | -599.2 | -447.6 | |
| 0.00 | 2.12 | 0.00 | 3.82 | -13.17 | 89.89 | -74.34 | 102.78 | 0.9626 | -114.0 | -71.8 | |
| 0.00 | 1.02 | 0.00 | 1.79 | -12.50 | 90.33 | -73.90 | 102.08 | 0.9606 | -69.0 | -115.5 | |
| 3.06 | -59.00 | 4.68 | -59.00 | -7.98 | 92.89 | -71.34 | 97.34 | 0.9475 | -478.6 | 999999 | |
| 0.00 | 0.59 | 0.00 | 1.00 | -11.09 | 91.02 | -73.21 | 100.61 | 0.9572 | -559.0 | -553.1 | |
| 0.68 | 2.21 | 1.10 | 3.58 | -9.38 | 91.73 | -72.50 | 98.83 | 0.9536 | -556.9 | -468.3 | |
| 0.00 | 1.27 | 0.00 | 2.09 | -9.65 | 91.59 | -72.64 | 99.10 | 0.9543 | -428.0 | -409.0 | |
| 0.00 | 0.76 | 0.00 | 1.26 | -9.79 | 91.51 | -72.73 | 99.26 | 0.9547 | -443.0 | -405.7 | |
| 2.29 | 33.89 | 4.12 | 61.56 | -11.87 | 89.92 | -74.32 | 101.43 | 0.9625 | -522.6 | -329.5 | |
| 1.10 | 5.52 | 1.80 | 8.90 | -9.08 | 91.69 | -72.54 | 98.51 | 0.9538 | -443.8 | -398.1 | |
| 1.53 | -74.00 | 2.86 | -74.00 | -11.77 | 89.18 | -75.05 | 101.33 | 0.9658 | 24.9 | 999999 | |
| 6.03 | -74.00 | 10.96 | -74.00 | -10.92 | 89.70 | -74.53 | 100.45 | 0.9635 | -389.8 | 999999 | |
| 0.00 | 2.21 | 0.00 | 4.18 | -10.17 | 89.06 | -75.17 | 99.67 | 0.9664 | 66.0 | 11.4 | |
| 1.87 | 2.89 | 3.72 | 5.74 | -10.52 | 88.32 | -75.91 | 100.04 | 0.9696 | 3.8 | -0.3 | |
| 0.00 | 1.70 | 0.00 | 3.20 | -9.39 | 89.11 | -75.13 | 98.86 | 0.9663 | 32.0 | 8.4 | |
| 0.00 | 2.12 | 0.00 | 4.01 | -8.50 | 89.17 | -75.06 | 97.94 | 0.9660 | -42.0 | 14.3 | |
| 0.00 | 8.41 | 0.00 | 16.92 | -10.00 | 88.20 | -76.03 | 99.51 | 0.9701 | 227.0 | 206.7 | |
| 0.00 | 3.82 | 0.00 | 8.14 | -10.41 | 87.37 | -76.87 | 99.94 | 0.9735 | 396.0 | 360.7 | |
| 0.00 | 1.70 | 0.00 | 3.58 | -10.14 | 87.44 | -76.79 | 99.66 | 0.9732 | 334.0 | 298.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
