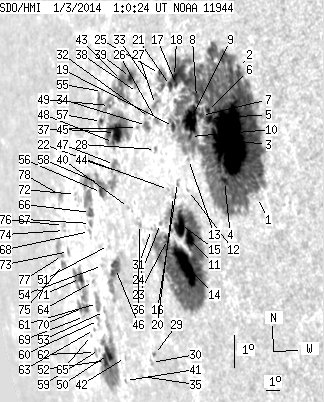

SDO HMI 2014-01-03 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 343.69 | 1689.48 | 392.38 | 1922.44 | -8.54 | 98.33 | -64.25 | 97.91 | 0.8987 | 275.9 | -7.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-03 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.80 | 0.00 | 2.68 | -9.25 | 103.66 | -58.93 | 98.85 | 0.8576 | 393.0 | 363.6 | |
| 0.68 | 932.40 | 0.65 | 941.98 | -5.37 | 103.39 | -59.19 | 94.32 | 0.8596 | -457.5 | 153.6 | |
| 129.98 | -2.00 | 128.74 | -2.00 | -7.49 | 102.44 | -60.14 | 96.78 | 0.8679 | 944.6 | 999999 | |
| 3.99 | -2.00 | 4.03 | -2.00 | -8.68 | 101.84 | -60.75 | 98.14 | 0.8733 | 618.8 | 999999 | |
| 3.23 | -2.00 | 3.30 | -2.00 | -6.78 | 101.38 | -61.20 | 95.96 | 0.8769 | 367.0 | 999999 | |
| 1.95 | -2.00 | 2.00 | -2.00 | -6.54 | 101.31 | -61.27 | 95.69 | 0.8775 | 356.5 | 999999 | |
| 2.38 | -2.00 | 2.47 | -2.00 | -6.67 | 100.90 | -61.68 | 95.83 | 0.8809 | 563.9 | 999999 | |
| 5.69 | -2.00 | 5.95 | -2.00 | -6.13 | 100.70 | -61.88 | 95.22 | 0.8825 | 415.2 | 999999 | |
| 25.06 | -2.00 | 26.62 | -2.00 | -6.75 | 100.18 | -62.40 | 95.93 | 0.8867 | 458.3 | 999999 | |
| 0.76 | -2.00 | 0.82 | -2.00 | -7.25 | 100.06 | -62.52 | 96.49 | 0.8877 | 258.4 | 999999 | |
| 10.53 | 319.10 | 11.64 | 361.78 | -10.25 | 99.07 | -63.51 | 99.84 | 0.8958 | 993.0 | 95.1 | |
| 0.00 | 1.02 | 0.00 | 1.11 | -8.83 | 99.49 | -63.09 | 98.26 | 0.8923 | 408.0 | 421.2 | |
| 0.00 | 1.27 | 0.00 | 1.37 | -7.92 | 99.75 | -62.83 | 97.24 | 0.8902 | -337.0 | -250.1 | |
| 34.58 | -11.00 | 39.02 | -11.00 | -11.03 | 98.50 | -64.09 | 100.69 | 0.9003 | 652.1 | 999999 | |
| 18.01 | -11.00 | 20.22 | -11.00 | -9.80 | 98.62 | -63.96 | 99.33 | 0.8991 | 533.8 | 999999 | |
| 0.00 | 2.29 | 0.00 | 2.55 | -8.56 | 98.83 | -63.75 | 97.95 | 0.8974 | 260.0 | 280.5 | |
| 0.68 | -2.00 | 0.74 | -2.00 | -5.68 | 99.50 | -63.08 | 94.72 | 0.8922 | -144.2 | 999999 | |
| 3.74 | -2.00 | 4.08 | -2.00 | -5.44 | 99.41 | -63.17 | 94.46 | 0.8929 | -924.7 | 999999 | |
| 2.80 | -2.00 | 3.10 | -2.00 | -6.90 | 99.02 | -63.56 | 96.10 | 0.8959 | 59.2 | 999999 | |
| 0.00 | 2.46 | 0.00 | 2.78 | -8.96 | 98.43 | -64.15 | 98.39 | 0.9005 | 136.0 | 161.3 | |
| 2.46 | -2.00 | 2.72 | -2.00 | -5.69 | 99.10 | -63.49 | 94.74 | 0.8954 | -197.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.97 | -8.74 | 98.15 | -64.43 | 98.14 | 0.9025 | -315.0 | -274.6 | |
| 2.63 | -11.00 | 3.07 | -11.00 | -10.20 | 97.56 | -65.02 | 99.75 | 0.9070 | 142.2 | 999999 | |
| 0.51 | 1.70 | 0.60 | 2.00 | -9.70 | 97.24 | -65.34 | 99.20 | 0.9092 | 185.0 | 89.4 | |
| 1.19 | -2.00 | 1.34 | -2.00 | -5.30 | 98.43 | -64.15 | 94.32 | 0.9005 | -498.8 | 999999 | |
| 1.27 | 3.91 | 1.46 | 4.49 | -6.67 | 97.91 | -64.67 | 95.84 | 0.9043 | -428.3 | -384.3 | |
| 2.21 | 9.01 | 2.53 | 10.31 | -6.20 | 97.96 | -64.62 | 95.32 | 0.9040 | -403.5 | -236.0 | |
| 0.00 | 1.87 | 0.00 | 2.17 | -7.52 | 97.61 | -64.97 | 96.78 | 0.9064 | 135.0 | 66.6 | |
| 0.59 | 1.70 | 0.77 | 2.20 | -13.53 | 94.95 | -67.63 | 103.30 | 0.9256 | 384.6 | 293.2 | |
| 0.00 | 2.12 | 0.00 | 2.79 | -13.75 | 94.57 | -68.01 | 103.53 | 0.9280 | 255.0 | 132.6 | |
| 0.00 | 0.93 | 0.00 | 1.13 | -9.85 | 96.53 | -66.06 | 99.34 | 0.9143 | 48.0 | 77.3 | |
| 0.00 | 0.85 | 0.00 | 0.99 | -6.56 | 97.45 | -65.14 | 95.72 | 0.9077 | -382.0 | -262.2 | |
| 0.00 | 2.89 | 0.00 | 3.35 | -5.56 | 97.68 | -64.90 | 94.62 | 0.9061 | -398.0 | -301.3 | |
| 3.57 | 7.14 | 4.21 | 8.43 | -6.78 | 97.17 | -65.41 | 95.97 | 0.9097 | -592.2 | -529.2 | |
| 0.00 | 0.93 | 0.00 | 1.29 | -14.12 | 93.49 | -69.09 | 103.89 | 0.9348 | -311.0 | -292.0 | |
| 0.00 | 2.89 | 0.00 | 3.62 | -9.65 | 95.69 | -66.89 | 99.12 | 0.9200 | 28.0 | -131.4 | |
| 0.00 | 1.27 | 0.00 | 1.54 | -6.80 | 96.51 | -66.07 | 96.01 | 0.9144 | -541.0 | -501.7 | |
| 0.00 | 0.68 | 0.00 | 0.82 | -5.78 | 96.77 | -65.82 | 94.88 | 0.9127 | -505.0 | -412.6 | |
| 3.57 | 50.38 | 4.35 | 62.61 | -5.31 | 96.35 | -66.23 | 94.38 | 0.9156 | -50.8 | -401.3 | |
| 0.00 | 1.27 | 0.00 | 1.64 | -9.11 | 95.05 | -67.53 | 98.52 | 0.9243 | -425.0 | -370.2 | |
| 0.00 | 0.93 | 0.00 | 1.38 | -14.16 | 92.03 | -70.55 | 103.89 | 0.9433 | -526.0 | -461.5 | |
| 0.00 | 1.02 | 0.00 | 1.47 | -13.49 | 92.50 | -70.08 | 103.18 | 0.9405 | -383.0 | -435.0 | |
| 7.48 | -39.00 | 9.33 | -39.00 | -5.37 | 95.66 | -66.92 | 94.45 | 0.9204 | -360.8 | 999999 | |
| 0.76 | 67.63 | 1.00 | 95.82 | -8.02 | 94.66 | -67.92 | 97.34 | 0.9268 | 186.1 | -369.4 | |
| 17.16 | 62.19 | 22.27 | 80.26 | -6.86 | 94.80 | -67.78 | 96.09 | 0.9260 | -625.4 | -365.7 | |
| 9.60 | 27.02 | 13.37 | 38.03 | -10.84 | 93.19 | -69.39 | 100.37 | 0.9361 | -690.2 | -558.9 | |
| 3.14 | -44.00 | 4.14 | -44.00 | -7.80 | 94.42 | -68.16 | 97.10 | 0.9284 | -506.2 | 999999 | |
| 1.10 | -45.00 | 1.45 | -45.00 | -7.15 | 94.55 | -68.03 | 96.40 | 0.9276 | -308.2 | 999999 | |
| 0.85 | 18.10 | 1.11 | 24.14 | -6.05 | 94.56 | -68.03 | 95.21 | 0.9277 | -671.9 | -440.3 | |
| 5.10 | 70.26 | 7.87 | 108.83 | -13.32 | 91.02 | -71.56 | 102.97 | 0.9487 | -771.5 | -368.1 | |
| 0.00 | 0.68 | 0.00 | 0.96 | -10.14 | 92.94 | -69.64 | 99.62 | 0.9376 | -431.0 | -428.6 | |
| 4.16 | -50.00 | 6.57 | -50.00 | -13.48 | 90.61 | -71.97 | 103.13 | 0.9509 | -322.0 | 999999 | |
| 0.00 | 1.78 | 0.00 | 2.69 | -12.05 | 91.51 | -71.08 | 101.63 | 0.9460 | -494.0 | -501.7 | |
| 0.00 | 0.85 | 0.00 | 1.25 | -10.70 | 92.12 | -70.47 | 100.20 | 0.9425 | -384.0 | -381.7 | |
| 0.00 | 1.27 | 0.00 | 1.70 | -5.61 | 94.10 | -68.48 | 94.75 | 0.9306 | -302.0 | -293.6 | |
| 2.72 | -44.00 | 3.81 | -44.00 | -8.56 | 93.04 | -69.54 | 97.93 | 0.9370 | -669.2 | 999999 | |
| 1.87 | 5.27 | 2.54 | 7.18 | -6.48 | 93.78 | -68.80 | 95.70 | 0.9326 | -170.4 | -17.5 | |
| 1.87 | -44.00 | 2.62 | -44.00 | -8.29 | 92.98 | -69.60 | 97.64 | 0.9374 | -552.4 | 999999 | |
| 0.00 | 0.93 | 0.00 | 1.50 | -13.13 | 90.27 | -72.31 | 102.76 | 0.9527 | -365.0 | -268.8 | |
| 0.00 | 3.14 | 0.00 | 4.92 | -12.28 | 90.78 | -71.81 | 101.87 | 0.9500 | -506.0 | -407.1 | |
| 5.10 | 8.75 | 7.87 | 13.51 | -11.78 | 91.01 | -71.57 | 101.34 | 0.9487 | -628.8 | -478.9 | |
| 0.00 | 2.46 | 0.00 | 4.05 | -13.20 | 89.81 | -72.77 | 102.82 | 0.9550 | -121.0 | -51.2 | |
| 0.00 | 1.10 | 0.00 | 1.78 | -12.52 | 90.21 | -72.37 | 102.12 | 0.9530 | -93.0 | -160.5 | |
| 0.00 | 1.10 | 0.00 | 1.71 | -11.12 | 91.03 | -71.55 | 100.64 | 0.9485 | -531.0 | -525.5 | |
| 0.00 | 0.51 | 0.00 | 0.84 | -12.68 | 89.79 | -72.80 | 102.28 | 0.9551 | -63.0 | -72.0 | |
| 3.99 | -44.00 | 5.93 | -44.00 | -9.09 | 91.83 | -70.75 | 98.50 | 0.9441 | -507.2 | 999999 | |
| 1.10 | 2.72 | 1.65 | 4.06 | -9.41 | 91.67 | -70.91 | 98.84 | 0.9450 | -563.3 | -492.1 | |
| 0.00 | 1.36 | 0.00 | 2.05 | -9.64 | 91.47 | -71.11 | 99.08 | 0.9461 | -423.0 | -390.1 | |
| 0.00 | 0.93 | 0.00 | 1.57 | -12.09 | 89.48 | -73.10 | 101.66 | 0.9566 | -184.0 | -174.7 | |
| 6.88 | 9.85 | 11.49 | 16.50 | -11.82 | 89.57 | -73.01 | 101.38 | 0.9562 | -313.9 | -103.4 | |
| 3.74 | 23.79 | 6.13 | 39.27 | -10.96 | 89.83 | -72.75 | 100.48 | 0.9548 | -482.0 | -360.7 | |
| 0.00 | 1.10 | 0.00 | 1.74 | -8.49 | 90.69 | -71.89 | 97.88 | 0.9504 | -160.0 | -143.5 | |
| 0.00 | 2.21 | 0.00 | 3.78 | -10.11 | 89.10 | -73.48 | 99.59 | 0.9585 | 7.0 | -12.0 | |
| 0.00 | 0.76 | 0.00 | 1.31 | -9.48 | 89.05 | -73.53 | 98.93 | 0.9588 | 107.0 | 39.8 | |
| 2.38 | 3.99 | 4.26 | 7.15 | -10.46 | 88.33 | -74.25 | 99.96 | 0.9622 | -14.1 | 77.4 | |
| 0.00 | 1.95 | 0.00 | 3.35 | -9.33 | 89.03 | -73.55 | 98.77 | 0.9589 | 242.0 | 137.0 | |
| 0.68 | 9.43 | 1.21 | 17.08 | -10.20 | 88.39 | -74.19 | 99.68 | 0.9619 | -3.1 | 268.7 | |
| 1.95 | 4.67 | 3.33 | 7.96 | -8.44 | 89.19 | -73.39 | 97.84 | 0.9582 | 52.7 | 26.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
