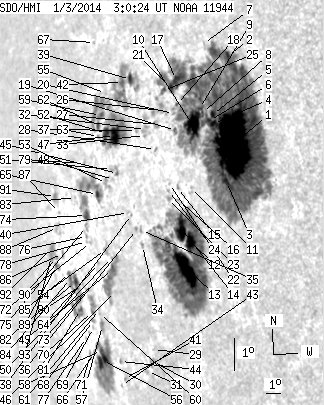

SDO HMI 2014-01-03 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 330.91 | 1785.76 | 358.83 | 1958.37 | -8.55 | 98.32 | -63.17 | 97.92 | 0.8903 | 342.3 | -18.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-03 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.40 | 974.73 | 131.58 | 950.46 | -7.50 | 102.53 | -58.96 | 96.80 | 0.8576 | 1001.4 | 153.7 | |
| 2.55 | -1.00 | 2.43 | -1.00 | -4.90 | 102.66 | -58.83 | 93.75 | 0.8564 | -600.9 | 999999 | |
| 3.48 | -1.00 | 3.40 | -1.00 | -8.60 | 101.85 | -59.64 | 98.06 | 0.8637 | 572.4 | 999999 | |
| 2.55 | -1.00 | 2.51 | -1.00 | -6.86 | 101.49 | -60.00 | 96.04 | 0.8667 | 404.1 | 999999 | |
| 2.89 | -1.00 | 2.85 | -1.00 | -6.59 | 101.48 | -60.01 | 95.73 | 0.8667 | 287.9 | 999999 | |
| 2.55 | -1.00 | 2.53 | -1.00 | -6.76 | 101.27 | -60.22 | 95.92 | 0.8686 | 407.7 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.59 | -4.48 | 101.31 | -60.18 | 93.29 | 0.8684 | -357.0 | -318.1 | |
| 0.42 | -1.00 | 0.43 | -1.00 | -6.50 | 100.90 | -60.59 | 95.63 | 0.8718 | 540.8 | 999999 | |
| 1.95 | -1.00 | 1.97 | -1.00 | -6.37 | 100.74 | -60.75 | 95.48 | 0.8731 | 470.4 | 999999 | |
| 26.26 | -1.00 | 26.90 | -1.00 | -6.82 | 100.21 | -61.28 | 96.00 | 0.8775 | 447.0 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.71 | -8.67 | 99.67 | -61.81 | 98.10 | 0.8821 | 301.0 | 290.0 | |
| 13.85 | 333.18 | 14.74 | 363.25 | -10.28 | 99.09 | -62.40 | 99.91 | 0.8871 | 996.4 | 120.8 | |
| 34.92 | -12.00 | 37.95 | -12.00 | -11.03 | 98.48 | -63.00 | 100.73 | 0.8920 | 621.7 | 999999 | |
| 18.86 | -12.00 | 20.38 | -12.00 | -9.84 | 98.65 | -62.83 | 99.40 | 0.8904 | 595.3 | 999999 | |
| 0.34 | 1.61 | 0.36 | 1.73 | -8.62 | 98.78 | -62.71 | 98.03 | 0.8892 | 427.0 | 353.6 | |
| 0.00 | 0.93 | 0.00 | 1.01 | -8.98 | 98.67 | -62.81 | 98.42 | 0.8901 | 526.0 | 426.6 | |
| 5.27 | -1.00 | 5.53 | -1.00 | -5.45 | 99.48 | -62.01 | 94.44 | 0.8836 | -865.2 | 999999 | |
| 0.51 | -1.00 | 0.54 | -1.00 | -6.18 | 99.34 | -62.15 | 95.27 | 0.8847 | -37.8 | 999999 | |
| 1.44 | 2.72 | 1.54 | 2.89 | -6.94 | 99.10 | -62.39 | 96.14 | 0.8866 | 185.9 | 95.1 | |
| 0.00 | 1.02 | 0.00 | 1.08 | -6.44 | 99.09 | -62.40 | 95.56 | 0.8867 | -297.0 | -240.2 | |
| 2.89 | -1.00 | 3.07 | -1.00 | -5.67 | 99.05 | -62.43 | 94.69 | 0.8871 | -119.6 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.84 | -8.48 | 98.29 | -63.19 | 97.86 | 0.8931 | 271.0 | 211.6 | |
| 0.42 | 2.72 | 0.47 | 2.98 | -8.92 | 98.09 | -63.40 | 98.35 | 0.8947 | -339.2 | -259.0 | |
| 0.00 | 1.19 | 0.00 | 1.30 | -8.68 | 98.17 | -63.32 | 98.09 | 0.8941 | -249.0 | -242.1 | |
| 1.95 | -1.00 | 2.11 | -1.00 | -5.73 | 98.58 | -62.90 | 94.77 | 0.8908 | 106.9 | 999999 | |
| 0.00 | 10.79 | 0.00 | 11.80 | -6.31 | 98.26 | -63.22 | 95.42 | 0.8933 | -297.0 | -386.7 | |
| 0.00 | 4.42 | 0.00 | 4.89 | -6.71 | 97.90 | -63.58 | 95.87 | 0.8960 | -433.0 | -428.7 | |
| 0.00 | 1.44 | 0.00 | 1.61 | -7.44 | 97.65 | -63.84 | 96.69 | 0.8980 | 113.0 | 85.8 | |
| 0.00 | 0.68 | 0.00 | 0.84 | -13.30 | 95.15 | -66.34 | 103.10 | 0.9169 | 290.0 | 257.5 | |
| 0.00 | 5.01 | 0.00 | 6.23 | -13.65 | 94.88 | -66.61 | 103.47 | 0.9188 | 457.0 | 243.4 | |
| 0.00 | 2.21 | 0.00 | 2.81 | -13.93 | 94.33 | -67.16 | 103.75 | 0.9226 | -27.0 | -154.1 | |
| 0.00 | 4.50 | 0.00 | 5.13 | -6.81 | 97.12 | -64.36 | 96.00 | 0.9020 | -472.0 | -494.2 | |
| 0.00 | 1.19 | 0.00 | 1.36 | -6.99 | 97.01 | -64.48 | 96.19 | 0.9028 | -621.0 | -558.4 | |
| 0.00 | 1.87 | 0.00 | 2.23 | -10.21 | 95.80 | -65.69 | 99.73 | 0.9118 | 178.0 | 60.1 | |
| 0.00 | 2.21 | 0.00 | 2.63 | -9.76 | 95.90 | -65.59 | 99.25 | 0.9110 | 63.0 | 15.3 | |
| 0.00 | 1.27 | 0.00 | 1.54 | -9.71 | 95.55 | -65.94 | 99.19 | 0.9135 | -443.0 | -401.3 | |
| 0.00 | 2.29 | 0.00 | 2.67 | -6.81 | 96.49 | -64.99 | 96.00 | 0.9066 | -542.0 | -460.6 | |
| 0.00 | 0.85 | 0.00 | 1.03 | -9.26 | 95.36 | -66.13 | 98.68 | 0.9148 | -116.0 | -165.4 | |
| 3.91 | 55.23 | 4.56 | 65.55 | -5.29 | 96.42 | -65.07 | 94.32 | 0.9073 | -89.7 | -393.3 | |
| 0.00 | 1.36 | 0.00 | 1.66 | -9.19 | 95.16 | -66.33 | 98.61 | 0.9162 | -454.0 | -403.4 | |
| 0.00 | 1.02 | 0.00 | 1.41 | -14.04 | 92.36 | -69.13 | 103.79 | 0.9350 | -624.0 | -597.8 | |
| 3.31 | -39.00 | 3.96 | -39.00 | -5.35 | 95.83 | -65.65 | 94.40 | 0.9116 | -345.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 1.19 | -14.23 | 91.96 | -69.52 | 103.98 | 0.9374 | -492.0 | -472.1 | |
| 0.42 | 1.44 | 0.59 | 1.99 | -13.52 | 92.35 | -69.14 | 103.24 | 0.9349 | -420.6 | -462.2 | |
| 1.02 | 3.06 | 1.27 | 3.81 | -8.00 | 94.74 | -66.74 | 97.31 | 0.9190 | 84.2 | -212.6 | |
| 0.00 | 1.10 | 0.00 | 1.47 | -11.45 | 93.13 | -68.36 | 101.03 | 0.9298 | -302.0 | -272.0 | |
| 11.98 | 98.14 | 14.82 | 123.25 | -6.88 | 94.86 | -66.63 | 96.08 | 0.9182 | -756.8 | -372.0 | |
| 0.00 | 1.19 | 0.00 | 1.50 | -8.16 | 94.38 | -67.11 | 97.48 | 0.9214 | -336.0 | -308.1 | |
| 3.06 | 32.38 | 4.05 | 43.46 | -10.79 | 93.21 | -68.28 | 100.32 | 0.9292 | -764.0 | -582.2 | |
| 0.00 | 0.51 | 0.00 | 0.67 | -10.44 | 93.30 | -68.19 | 99.94 | 0.9286 | -267.0 | -333.8 | |
| 0.00 | 1.27 | 0.00 | 1.61 | -7.86 | 94.33 | -67.16 | 97.16 | 0.9218 | -477.0 | -457.3 | |
| 5.10 | -47.00 | 6.48 | -47.00 | -6.79 | 94.27 | -67.21 | 95.99 | 0.9222 | -338.2 | 999999 | |
| 0.00 | 5.35 | 0.00 | 6.92 | -8.25 | 93.80 | -67.69 | 97.58 | 0.9253 | -551.0 | -568.7 | |
| 0.00 | 3.99 | 0.00 | 5.35 | -10.18 | 92.92 | -68.56 | 99.66 | 0.9310 | -504.0 | -421.0 | |
| 0.00 | 1.02 | 0.00 | 1.28 | -5.61 | 94.51 | -66.98 | 94.71 | 0.9208 | -576.0 | -604.8 | |
| 9.52 | 67.38 | 14.08 | 99.48 | -13.41 | 90.81 | -70.68 | 103.08 | 0.9439 | -589.2 | -328.0 | |
| 2.63 | 5.52 | 3.78 | 7.93 | -12.39 | 91.48 | -70.01 | 102.00 | 0.9399 | -619.4 | -544.8 | |
| 1.36 | -56.00 | 2.00 | -56.00 | -13.11 | 90.92 | -70.57 | 102.76 | 0.9432 | -682.1 | 999999 | |
| 3.06 | -47.00 | 3.93 | -47.00 | -6.23 | 93.96 | -67.53 | 95.40 | 0.9244 | -555.5 | 999999 | |
| 0.00 | 0.76 | 0.00 | 1.10 | -12.02 | 91.43 | -70.06 | 101.61 | 0.9402 | -570.0 | -468.6 | |
| 0.00 | 0.93 | 0.00 | 1.34 | -11.90 | 91.50 | -69.99 | 101.49 | 0.9397 | -418.0 | -452.1 | |
| 2.29 | -47.00 | 2.98 | -47.00 | -6.52 | 93.72 | -67.76 | 95.71 | 0.9259 | -185.7 | 999999 | |
| 0.34 | 1.27 | 0.44 | 1.66 | -6.84 | 93.63 | -67.86 | 96.06 | 0.9265 | -12.8 | 41.4 | |
| 0.00 | 1.10 | 0.00 | 1.54 | -10.55 | 92.15 | -69.34 | 100.06 | 0.9358 | -525.0 | -448.1 | |
| 1.87 | 51.07 | 2.50 | 70.57 | -8.53 | 92.96 | -68.52 | 97.89 | 0.9307 | -652.8 | -359.6 | |
| 0.00 | 0.93 | 0.00 | 1.42 | -13.14 | 90.25 | -71.24 | 102.78 | 0.9470 | -312.0 | -283.6 | |
| 0.00 | 0.93 | 0.00 | 1.20 | -4.07 | 93.97 | -67.51 | 93.05 | 0.9246 | 143.0 | 128.4 | |
| 0.68 | 1.87 | 1.01 | 2.77 | -12.20 | 90.78 | -70.71 | 101.79 | 0.9439 | -412.9 | -324.2 | |
| 0.00 | 0.85 | 0.00 | 1.27 | -12.40 | 90.65 | -70.84 | 102.00 | 0.9447 | -519.0 | -482.8 | |
| 0.93 | 9.43 | 1.38 | 13.84 | -11.93 | 90.85 | -70.64 | 101.51 | 0.9435 | -635.6 | -589.4 | |
| 0.00 | 1.70 | 0.00 | 2.64 | -13.17 | 89.83 | -71.66 | 102.81 | 0.9492 | -167.0 | -33.4 | |
| 0.00 | 0.85 | 0.00 | 1.20 | -9.91 | 91.77 | -69.71 | 99.36 | 0.9380 | -548.0 | -513.9 | |
| 0.00 | 2.04 | 0.00 | 3.01 | -11.26 | 90.79 | -70.70 | 100.80 | 0.9438 | -616.0 | -541.4 | |
| 4.84 | -65.00 | 6.83 | -65.00 | -9.10 | 91.80 | -69.69 | 98.50 | 0.9379 | -501.1 | 999999 | |
| 0.00 | 2.63 | 0.00 | 3.74 | -9.42 | 91.65 | -69.84 | 98.84 | 0.9387 | -597.0 | -535.4 | |
| 0.00 | 1.44 | 0.00 | 2.06 | -9.71 | 91.51 | -69.97 | 99.15 | 0.9395 | -395.0 | -377.4 | |
| 0.00 | 0.68 | 0.00 | 1.06 | -12.66 | 89.81 | -71.68 | 102.26 | 0.9493 | -153.0 | -116.5 | |
| 0.00 | 0.93 | 0.00 | 1.34 | -9.86 | 91.44 | -70.04 | 99.31 | 0.9400 | -430.0 | -383.9 | |
| 0.00 | 1.61 | 0.00 | 2.24 | -7.57 | 92.23 | -69.25 | 96.86 | 0.9353 | 52.0 | -27.6 | |
| 0.00 | 1.44 | 0.00 | 2.17 | -11.09 | 90.42 | -71.07 | 100.62 | 0.9459 | -585.0 | -537.2 | |
| 1.61 | 36.20 | 2.51 | 56.71 | -11.81 | 89.79 | -71.70 | 101.37 | 0.9494 | -592.1 | -317.7 | |
| 3.57 | -81.00 | 5.53 | -81.00 | -10.97 | 89.82 | -71.67 | 100.48 | 0.9491 | -560.0 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.87 | -8.52 | 91.07 | -70.42 | 97.89 | 0.9422 | -222.0 | -197.3 | |
| 0.68 | -81.00 | 1.08 | -81.00 | -10.86 | 89.40 | -72.09 | 100.36 | 0.9514 | -162.9 | 999999 | |
| 0.76 | -81.00 | 1.22 | -81.00 | -10.71 | 89.39 | -72.10 | 100.21 | 0.9514 | -248.0 | 999999 | |
| 0.00 | 2.12 | 0.00 | 3.42 | -10.09 | 89.05 | -72.44 | 99.56 | 0.9532 | 22.0 | 10.8 | |
| 0.00 | 0.93 | 0.00 | 1.49 | -8.88 | 89.40 | -72.09 | 98.28 | 0.9514 | -64.0 | 4.4 | |
| 0.00 | 3.74 | 0.00 | 6.07 | -9.31 | 88.98 | -72.51 | 98.73 | 0.9536 | 325.0 | 213.6 | |
| 1.78 | 4.33 | 3.01 | 7.29 | -10.41 | 88.24 | -73.25 | 99.89 | 0.9573 | 16.8 | 60.3 | |
| 0.34 | 10.28 | 0.57 | 17.49 | -10.17 | 88.38 | -73.10 | 99.65 | 0.9566 | -31.2 | 244.9 | |
| 1.87 | 5.44 | 3.00 | 8.72 | -8.39 | 89.24 | -72.25 | 97.77 | 0.9523 | 69.5 | 72.5 | |
| 1.87 | -90.00 | 3.18 | -90.00 | -9.86 | 88.15 | -73.34 | 99.32 | 0.9578 | 321.0 | 999999 | |
| 1.61 | -90.00 | 2.78 | -90.00 | -10.12 | 87.89 | -73.60 | 99.59 | 0.9591 | 392.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
