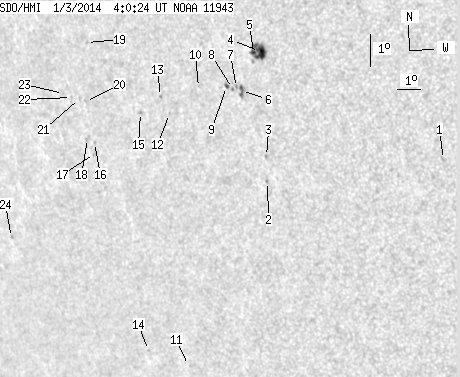

SDO HMI 2014-01-03 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.76 | 49.25 | 11.90 | 34.50 | -12.63 | 116.65 | -44.29 | 104.71 | 0.7054 | 261.6 | 81.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-03 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.26 | -14.78 | 125.76 | -35.19 | 110.62 | 0.5976 | 622.0 | 493.6 | |
| 0.00 | 1.19 | 0.00 | 0.81 | -15.19 | 118.76 | -42.18 | 108.82 | 0.6870 | 559.0 | 532.9 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -14.44 | 118.90 | -42.04 | 107.79 | 0.6834 | 671.0 | 603.5 | |
| 12.07 | 19.29 | 8.05 | 12.88 | -11.30 | 119.27 | -41.67 | 103.28 | 0.6723 | 925.1 | 565.7 | |
| 2.21 | -4.00 | 1.48 | -4.00 | -11.32 | 119.02 | -41.92 | 103.27 | 0.6754 | 737.1 | 999999 | |
| 2.46 | 4.67 | 1.67 | 3.17 | -12.43 | 118.31 | -42.63 | 104.74 | 0.6862 | 860.6 | 675.7 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -12.34 | 118.13 | -42.81 | 104.56 | 0.6883 | 738.0 | 649.6 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -12.36 | 117.96 | -42.98 | 104.56 | 0.6904 | 586.0 | 503.7 | |
| 1.02 | 2.29 | 0.70 | 1.57 | -12.29 | 117.72 | -43.22 | 104.41 | 0.6932 | 574.2 | 453.6 | |
| 0.00 | 0.42 | 0.00 | 0.30 | -12.28 | 116.55 | -44.39 | 104.16 | 0.7073 | -637.0 | -590.8 | |
| 0.00 | 0.34 | 0.00 | 0.26 | -20.63 | 113.53 | -47.42 | 114.62 | 0.7603 | 467.0 | 519.0 | |
| 0.00 | 0.68 | 0.00 | 0.49 | -13.00 | 115.14 | -45.80 | 104.90 | 0.7252 | -480.0 | -433.1 | |
| 0.00 | 1.10 | 0.00 | 0.79 | -12.48 | 114.87 | -46.07 | 104.14 | 0.7275 | -676.0 | -596.3 | |
| 0.00 | 0.85 | 0.00 | 0.66 | -20.10 | 111.85 | -49.09 | 113.46 | 0.7760 | 461.0 | 352.8 | |
| 0.00 | 1.87 | 0.00 | 1.37 | -12.92 | 113.88 | -47.06 | 104.56 | 0.7396 | 617.0 | 399.0 | |
| 0.00 | 0.76 | 0.00 | 0.59 | -13.72 | 111.56 | -49.38 | 105.23 | 0.7665 | -645.0 | -588.6 | |
| 0.00 | 2.46 | 0.00 | 1.90 | -14.05 | 111.47 | -49.47 | 105.64 | 0.7681 | -653.0 | -497.4 | |
| 0.00 | 2.21 | 0.00 | 1.71 | -13.59 | 111.27 | -49.67 | 105.01 | 0.7695 | -524.0 | -525.2 | |
| 0.00 | 1.02 | 0.00 | 0.77 | -10.74 | 111.95 | -48.99 | 101.38 | 0.7586 | -490.0 | -414.4 | |
| 0.00 | 0.93 | 0.00 | 0.72 | -12.49 | 111.48 | -49.46 | 103.61 | 0.7657 | -660.0 | -553.9 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -12.38 | 111.23 | -49.71 | 103.44 | 0.7684 | -542.0 | -413.0 | |
| 0.00 | 0.85 | 0.00 | 0.66 | -12.34 | 110.86 | -50.08 | 103.34 | 0.7723 | -553.0 | -474.9 | |
| 0.00 | 0.68 | 0.00 | 0.53 | -12.20 | 110.52 | -50.42 | 103.12 | 0.7758 | -472.0 | -405.6 | |
| 0.00 | 0.68 | 0.00 | 0.59 | -16.38 | 106.51 | -54.44 | 107.75 | 0.8217 | -420.0 | -365.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
