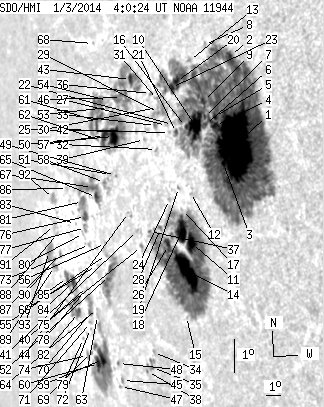

SDO HMI 2014-01-03 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 350.45 | 1855.21 | 381.27 | 1996.65 | -8.56 | 98.32 | -62.62 | 97.93 | 0.8860 | 298.7 | -4.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-03 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.00 | 1005.59 | 121.47 | 963.97 | -7.50 | 102.55 | -58.39 | 96.81 | 0.8525 | 1065.4 | 159.9 | |
| 1.36 | -1.00 | 1.27 | -1.00 | -4.87 | 102.74 | -58.20 | 93.71 | 0.8508 | -619.2 | 999999 | |
| 0.93 | -1.00 | 0.90 | -1.00 | -8.03 | 101.74 | -59.21 | 97.41 | 0.8598 | 144.2 | 999999 | |
| 3.99 | -1.00 | 3.87 | -1.00 | -6.89 | 101.52 | -59.42 | 96.08 | 0.8616 | 378.4 | 999999 | |
| 1.95 | -1.00 | 1.89 | -1.00 | -6.62 | 101.52 | -59.42 | 95.77 | 0.8616 | 367.7 | 999999 | |
| 1.27 | -1.00 | 1.26 | -1.00 | -6.83 | 100.94 | -60.00 | 96.01 | 0.8667 | 550.3 | 999999 | |
| 1.19 | -1.00 | 1.17 | -1.00 | -6.59 | 100.93 | -60.01 | 95.73 | 0.8668 | 612.1 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.99 | -4.48 | 101.29 | -59.65 | 93.27 | 0.8638 | -350.0 | -263.6 | |
| 2.72 | -1.00 | 2.68 | -1.00 | -6.15 | 100.96 | -59.98 | 95.22 | 0.8665 | 382.8 | 999999 | |
| 23.03 | -1.00 | 23.12 | -1.00 | -6.83 | 100.33 | -60.61 | 96.00 | 0.8719 | 538.5 | 999999 | |
| 14.02 | 347.83 | 14.65 | 372.20 | -10.29 | 99.12 | -61.82 | 99.93 | 0.8825 | 1013.0 | 108.8 | |
| 0.00 | 1.27 | 0.00 | 1.31 | -8.78 | 99.53 | -61.41 | 98.23 | 0.8788 | 442.0 | 489.4 | |
| 0.00 | 1.53 | 0.00 | 1.54 | -4.90 | 100.33 | -60.61 | 93.79 | 0.8721 | -305.0 | -254.4 | |
| 38.33 | -11.00 | 40.84 | -11.00 | -11.10 | 98.57 | -62.37 | 100.83 | 0.8871 | 664.7 | 999999 | |
| 0.00 | 0.25 | 0.00 | 0.28 | -12.42 | 97.96 | -62.98 | 102.29 | 0.8923 | -79.0 | -90.0 | |
| 0.59 | -1.00 | 0.61 | -1.00 | -6.83 | 99.72 | -61.22 | 96.00 | 0.8771 | -130.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 1.07 | -9.26 | 98.88 | -62.06 | 98.76 | 0.8842 | 319.0 | 376.4 | |
| 17.08 | -11.00 | 18.13 | -11.00 | -9.90 | 98.61 | -62.33 | 99.48 | 0.8865 | 611.0 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.25 | -8.60 | 98.82 | -62.12 | 98.01 | 0.8845 | 441.0 | 417.5 | |
| 5.69 | -1.00 | 5.88 | -1.00 | -5.48 | 99.43 | -61.51 | 94.46 | 0.8796 | -741.6 | 999999 | |
| 1.78 | 3.14 | 1.86 | 3.28 | -6.98 | 99.12 | -61.82 | 96.17 | 0.8820 | 166.7 | 44.6 | |
| 0.00 | 0.76 | 0.00 | 0.80 | -6.73 | 98.92 | -62.02 | 95.89 | 0.8836 | -85.0 | -64.6 | |
| 3.06 | -1.00 | 3.19 | -1.00 | -5.64 | 99.08 | -61.86 | 94.65 | 0.8824 | -100.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.56 | -8.92 | 98.14 | -62.80 | 98.36 | 0.8900 | -346.0 | -294.5 | |
| 0.00 | 1.10 | 0.00 | 1.17 | -6.96 | 98.68 | -62.27 | 96.14 | 0.8856 | -324.0 | -281.2 | |
| 5.95 | -11.00 | 6.53 | -11.00 | -10.27 | 97.62 | -63.33 | 99.86 | 0.8943 | 147.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.35 | -6.74 | 98.53 | -62.41 | 95.90 | 0.8868 | -478.0 | -357.5 | |
| 1.10 | 2.38 | 1.23 | 2.64 | -9.75 | 97.26 | -63.68 | 99.26 | 0.8969 | 305.5 | 173.5 | |
| 0.51 | 9.86 | 0.55 | 10.57 | -6.33 | 98.10 | -62.84 | 95.44 | 0.8902 | -366.3 | -411.9 | |
| 0.00 | 0.93 | 0.00 | 1.01 | -6.18 | 98.07 | -62.87 | 95.27 | 0.8905 | -416.0 | -412.0 | |
| 0.00 | 2.04 | 0.00 | 2.20 | -5.95 | 98.12 | -62.82 | 95.01 | 0.8901 | -9.0 | -21.3 | |
| 0.00 | 1.44 | 0.00 | 1.58 | -7.41 | 97.71 | -63.23 | 96.66 | 0.8933 | 124.0 | 68.4 | |
| 0.00 | 2.63 | 0.00 | 2.87 | -6.70 | 97.82 | -63.12 | 95.86 | 0.8924 | -491.0 | -468.0 | |
| 0.00 | 1.53 | 0.00 | 1.84 | -13.37 | 95.17 | -65.77 | 103.20 | 0.9131 | 349.0 | 287.9 | |
| 0.68 | 6.37 | 0.83 | 7.77 | -13.80 | 94.85 | -66.09 | 103.66 | 0.9154 | 290.2 | 211.0 | |
| 0.00 | 1.44 | 0.00 | 1.58 | -5.75 | 97.70 | -63.24 | 94.79 | 0.8935 | 142.0 | -2.1 | |
| 0.51 | -11.00 | 0.58 | -11.00 | -9.80 | 96.48 | -64.46 | 99.30 | 0.9028 | 292.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.79 | -13.90 | 94.41 | -66.53 | 103.75 | 0.9184 | 1.0 | -91.6 | |
| 0.00 | 1.10 | 0.00 | 1.24 | -7.08 | 96.99 | -63.95 | 96.28 | 0.8989 | -524.0 | -494.8 | |
| 0.00 | 2.63 | 0.00 | 3.09 | -10.21 | 95.76 | -65.18 | 99.74 | 0.9082 | 83.0 | 66.5 | |
| 0.00 | 1.19 | 0.00 | 1.40 | -9.72 | 95.66 | -65.29 | 99.21 | 0.9088 | -391.0 | -371.8 | |
| 0.00 | 1.36 | 0.00 | 1.55 | -6.82 | 96.50 | -64.44 | 95.99 | 0.9025 | -539.0 | -494.2 | |
| 3.82 | 64.50 | 4.37 | 74.88 | -5.27 | 96.44 | -64.51 | 94.28 | 0.9032 | -56.6 | -342.0 | |
| 0.00 | 0.59 | 0.00 | 0.71 | -9.16 | 95.21 | -65.73 | 98.58 | 0.9120 | -444.0 | -377.6 | |
| 0.00 | 1.61 | 0.00 | 2.18 | -14.07 | 92.30 | -68.65 | 103.84 | 0.9320 | -642.0 | -577.8 | |
| 9.35 | -43.00 | 10.99 | -43.00 | -5.76 | 95.70 | -65.25 | 94.84 | 0.9086 | -499.6 | 999999 | |
| 0.00 | 1.02 | 0.00 | 1.40 | -14.23 | 92.01 | -68.93 | 104.01 | 0.9338 | -541.0 | -491.0 | |
| 0.76 | 1.53 | 1.03 | 2.07 | -13.55 | 92.29 | -68.65 | 103.28 | 0.9320 | -488.9 | -476.0 | |
| 0.34 | 1.02 | 0.41 | 1.24 | -8.03 | 94.63 | -66.31 | 97.34 | 0.9160 | 147.0 | 95.0 | |
| 12.07 | 68.41 | 14.62 | 82.92 | -6.88 | 94.83 | -66.11 | 96.08 | 0.9146 | -771.1 | -413.2 | |
| 0.00 | 1.44 | 0.00 | 1.79 | -7.98 | 94.27 | -66.67 | 97.28 | 0.9185 | -405.0 | -340.5 | |
| 10.45 | 33.74 | 13.67 | 44.27 | -10.93 | 93.00 | -67.95 | 100.48 | 0.9271 | -710.7 | -543.9 | |
| 0.00 | 2.12 | 0.00 | 2.60 | -6.01 | 94.69 | -66.25 | 95.13 | 0.9157 | -543.0 | -532.2 | |
| 0.00 | 1.61 | 0.00 | 1.97 | -5.80 | 94.66 | -66.28 | 94.90 | 0.9159 | -526.0 | -527.9 | |
| 0.00 | 2.63 | 0.00 | 3.43 | -10.31 | 93.05 | -67.89 | 99.80 | 0.9267 | -511.0 | -435.8 | |
| 0.00 | 0.59 | 0.00 | 0.77 | -9.98 | 93.11 | -67.83 | 99.45 | 0.9263 | -272.0 | -269.1 | |
| 6.37 | -50.00 | 7.93 | -50.00 | -6.81 | 94.18 | -66.77 | 96.01 | 0.9192 | -357.2 | 999999 | |
| 0.68 | 7.22 | 0.86 | 9.10 | -8.19 | 93.74 | -67.20 | 97.51 | 0.9221 | -507.1 | -515.6 | |
| 4.16 | 75.97 | 5.94 | 109.29 | -13.36 | 91.02 | -69.92 | 103.04 | 0.9395 | -834.6 | -353.0 | |
| 2.72 | -59.00 | 3.97 | -59.00 | -13.46 | 90.59 | -70.35 | 103.14 | 0.9420 | -346.2 | 999999 | |
| 6.54 | 39.01 | 8.26 | 49.50 | -6.38 | 93.84 | -67.11 | 95.55 | 0.9215 | -420.6 | -256.8 | |
| 0.51 | 1.27 | 0.65 | 1.63 | -6.90 | 93.61 | -67.33 | 96.12 | 0.9230 | -28.0 | -6.6 | |
| 0.00 | 2.12 | 0.00 | 2.98 | -12.05 | 91.39 | -69.55 | 101.65 | 0.9372 | -561.0 | -519.5 | |
| 0.00 | 0.68 | 0.00 | 0.95 | -11.85 | 91.51 | -69.43 | 101.44 | 0.9364 | -429.0 | -428.9 | |
| 3.65 | 47.00 | 4.77 | 63.31 | -8.60 | 92.96 | -67.98 | 97.96 | 0.9272 | -699.1 | -319.3 | |
| 0.00 | 0.51 | 0.00 | 0.69 | -10.59 | 92.09 | -68.85 | 100.09 | 0.9328 | -605.0 | -542.7 | |
| 4.67 | -65.00 | 6.18 | -65.00 | -8.29 | 92.75 | -68.19 | 97.62 | 0.9286 | -504.2 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.75 | -4.07 | 93.88 | -67.06 | 93.03 | 0.9216 | 238.0 | 190.1 | |
| 0.51 | 0.85 | 0.76 | 1.26 | -13.11 | 90.18 | -70.76 | 102.75 | 0.9443 | -266.2 | -210.5 | |
| 1.78 | 10.88 | 2.57 | 15.60 | -11.93 | 90.84 | -70.10 | 101.52 | 0.9404 | -628.0 | -551.8 | |
| 0.00 | 1.61 | 0.00 | 2.34 | -12.22 | 90.66 | -70.28 | 101.82 | 0.9415 | -483.0 | -353.2 | |
| 0.00 | 0.51 | 0.00 | 0.74 | -12.40 | 90.55 | -70.39 | 102.01 | 0.9421 | -470.0 | -462.5 | |
| 0.00 | 1.95 | 0.00 | 2.69 | -9.94 | 91.81 | -69.13 | 99.40 | 0.9345 | -422.0 | -425.7 | |
| 1.02 | 2.63 | 1.54 | 3.99 | -13.17 | 89.76 | -71.18 | 102.81 | 0.9466 | -113.7 | -38.4 | |
| 0.00 | 0.51 | 0.00 | 0.73 | -11.16 | 91.01 | -69.93 | 100.69 | 0.9393 | -452.0 | -498.7 | |
| 3.99 | -65.00 | 5.49 | -65.00 | -9.10 | 91.84 | -69.10 | 98.50 | 0.9343 | -525.0 | 999999 | |
| 0.00 | 3.74 | 0.00 | 5.17 | -9.43 | 91.70 | -69.24 | 98.85 | 0.9351 | -617.0 | -515.9 | |
| 0.00 | 0.93 | 0.00 | 1.36 | -11.29 | 90.67 | -70.27 | 100.83 | 0.9413 | -636.0 | -597.2 | |
| 0.00 | 0.85 | 0.00 | 1.29 | -12.66 | 89.73 | -71.21 | 102.27 | 0.9467 | -187.0 | -140.5 | |
| 0.00 | 1.70 | 0.00 | 2.38 | -9.59 | 91.45 | -69.49 | 99.02 | 0.9366 | -406.0 | -373.1 | |
| 2.63 | -65.00 | 3.62 | -65.00 | -8.65 | 91.78 | -69.17 | 98.02 | 0.9347 | -452.7 | 999999 | |
| 3.65 | 38.33 | 5.55 | 58.52 | -11.88 | 89.77 | -71.17 | 101.44 | 0.9465 | -539.6 | -311.3 | |
| 0.00 | 0.51 | 0.00 | 0.73 | -9.26 | 90.90 | -70.04 | 98.67 | 0.9399 | -110.0 | -120.3 | |
| 3.65 | -82.00 | 5.51 | -82.00 | -10.95 | 89.85 | -71.09 | 100.46 | 0.9460 | -575.2 | 999999 | |
| 2.89 | -82.00 | 4.47 | -82.00 | -10.80 | 89.37 | -71.57 | 100.30 | 0.9486 | -179.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.98 | -8.21 | 90.65 | -70.29 | 97.55 | 0.9414 | 103.0 | 10.9 | |
| 0.76 | 1.87 | 1.20 | 2.93 | -10.10 | 89.09 | -71.85 | 99.56 | 0.9501 | -52.7 | -81.2 | |
| 0.00 | 1.36 | 0.00 | 2.13 | -9.47 | 89.13 | -71.81 | 98.90 | 0.9499 | -23.0 | 30.1 | |
| 2.29 | 17.17 | 3.74 | 28.20 | -10.41 | 88.31 | -72.64 | 99.89 | 0.9542 | -14.3 | 170.2 | |
| 0.42 | -89.00 | 0.69 | -89.00 | -10.21 | 88.43 | -72.51 | 99.68 | 0.9536 | -95.0 | 999999 | |
| 0.00 | 2.89 | 0.00 | 4.55 | -9.22 | 88.97 | -71.97 | 98.64 | 0.9508 | 312.0 | 215.3 | |
| 0.00 | 5.61 | 0.00 | 8.73 | -8.43 | 89.25 | -71.69 | 97.80 | 0.9493 | 41.0 | 61.5 | |
| 6.03 | -89.00 | 9.97 | -89.00 | -9.95 | 88.07 | -72.88 | 99.41 | 0.9555 | 323.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
