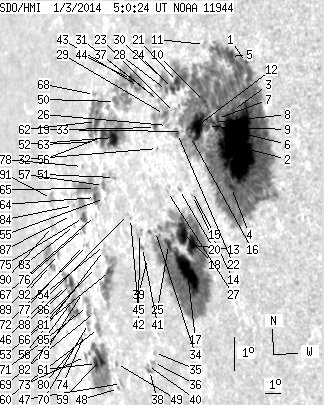

SDO HMI 2014-01-03 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 365.45 | 1900.25 | 380.15 | 2005.97 | -8.50 | 98.37 | -62.02 | 97.87 | 0.8813 | 322.2 | -12.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-03 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.76 | 1017.65 | 0.69 | 959.27 | -5.09 | 103.49 | -56.91 | 93.94 | 0.8386 | -717.6 | 155.3 | |
| 144.39 | -1.00 | 133.97 | -1.00 | -7.53 | 102.56 | -57.84 | 96.85 | 0.8474 | 1030.0 | 999999 | |
| 0.93 | -1.00 | 0.87 | -1.00 | -6.46 | 102.49 | -57.90 | 95.58 | 0.8479 | 666.9 | 999999 | |
| 2.04 | -1.00 | 1.92 | -1.00 | -8.72 | 101.94 | -58.46 | 98.23 | 0.8533 | 746.6 | 999999 | |
| 8.41 | -1.00 | 7.78 | -1.00 | -4.87 | 102.64 | -57.76 | 93.69 | 0.8467 | -582.5 | 999999 | |
| 3.06 | -1.00 | 2.92 | -1.00 | -6.92 | 101.55 | -58.85 | 96.11 | 0.8565 | 400.0 | 999999 | |
| 2.21 | -1.00 | 2.10 | -1.00 | -6.66 | 101.60 | -58.80 | 95.80 | 0.8560 | 377.0 | 999999 | |
| 2.80 | -1.00 | 2.69 | -1.00 | -6.76 | 101.29 | -59.11 | 95.92 | 0.8588 | 472.9 | 999999 | |
| 1.36 | -1.00 | 1.32 | -1.00 | -6.86 | 100.98 | -59.42 | 96.04 | 0.8616 | 527.7 | 999999 | |
| 4.84 | -1.00 | 4.70 | -1.00 | -6.12 | 100.94 | -59.45 | 95.18 | 0.8619 | 366.1 | 999999 | |
| 0.00 | 2.89 | 0.00 | 2.78 | -4.44 | 101.21 | -59.18 | 93.22 | 0.8597 | -471.0 | -281.2 | |
| 25.33 | -1.00 | 24.99 | -1.00 | -6.80 | 100.39 | -60.00 | 95.97 | 0.8667 | 497.8 | 999999 | |
| 14.45 | 354.57 | 14.84 | 372.37 | -10.32 | 99.13 | -61.27 | 99.98 | 0.8779 | 1012.4 | 122.3 | |
| 0.00 | 0.76 | 0.00 | 0.77 | -8.85 | 99.59 | -60.81 | 98.31 | 0.8738 | 484.0 | 476.9 | |
| 0.00 | 0.68 | 0.00 | 0.69 | -8.73 | 99.62 | -60.78 | 98.18 | 0.8735 | 517.0 | 507.5 | |
| 0.93 | -1.00 | 0.94 | -1.00 | -7.11 | 99.91 | -60.49 | 96.32 | 0.8709 | -90.5 | 999999 | |
| 33.15 | -13.00 | 34.69 | -13.00 | -11.07 | 98.55 | -61.85 | 100.81 | 0.8829 | 711.3 | 999999 | |
| 17.59 | -13.00 | 18.35 | -13.00 | -9.93 | 98.62 | -61.77 | 99.53 | 0.8820 | 598.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.86 | -6.94 | 99.45 | -60.94 | 96.12 | 0.8747 | 117.0 | 65.0 | |
| 0.00 | 1.70 | 0.00 | 1.76 | -8.63 | 98.84 | -61.56 | 98.05 | 0.8800 | 483.0 | 386.2 | |
| 4.08 | -1.00 | 4.14 | -1.00 | -5.45 | 99.44 | -60.96 | 94.42 | 0.8749 | -905.9 | 999999 | |
| 1.61 | 5.69 | 1.66 | 5.85 | -6.98 | 99.13 | -61.26 | 96.17 | 0.8774 | 180.6 | -58.7 | |
| 0.00 | 2.55 | 0.00 | 2.61 | -6.35 | 99.08 | -61.31 | 95.45 | 0.8778 | -254.0 | -267.4 | |
| 1.78 | -1.00 | 1.83 | -1.00 | -5.64 | 99.10 | -61.30 | 94.64 | 0.8778 | 82.3 | 999999 | |
| 5.52 | -13.00 | 5.95 | -13.00 | -10.21 | 97.62 | -62.78 | 99.81 | 0.8901 | 172.6 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.95 | -6.71 | 98.56 | -61.83 | 95.86 | 0.8821 | -493.0 | -320.9 | |
| 0.00 | 1.02 | 0.00 | 1.08 | -8.65 | 98.06 | -62.34 | 98.06 | 0.8863 | -306.0 | -239.8 | |
| 1.44 | -1.00 | 1.50 | -1.00 | -5.68 | 98.71 | -61.68 | 94.69 | 0.8809 | -22.2 | 999999 | |
| 2.63 | 21.67 | 2.76 | 22.92 | -6.38 | 98.45 | -61.95 | 95.49 | 0.8831 | -493.3 | -422.7 | |
| 2.12 | -1.00 | 2.22 | -1.00 | -5.31 | 98.46 | -61.93 | 94.28 | 0.8830 | -574.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.53 | -5.95 | 98.15 | -62.24 | 95.00 | 0.8855 | 2.0 | -30.8 | |
| 0.00 | 1.02 | 0.00 | 1.09 | -7.36 | 97.77 | -62.63 | 96.59 | 0.8885 | 127.0 | 55.9 | |
| 2.12 | -29.00 | 2.27 | -29.00 | -6.73 | 97.79 | -62.61 | 95.89 | 0.8884 | -499.7 | 999999 | |
| 0.00 | 0.93 | 0.00 | 1.03 | -9.79 | 96.90 | -63.50 | 99.31 | 0.8956 | 102.0 | 71.1 | |
| 0.00 | 1.44 | 0.00 | 1.69 | -13.34 | 95.29 | -65.10 | 103.20 | 0.9084 | 343.0 | 271.8 | |
| 0.00 | 1.61 | 0.00 | 1.91 | -13.63 | 95.06 | -65.33 | 103.51 | 0.9101 | 600.0 | 492.5 | |
| 0.00 | 1.61 | 0.00 | 1.73 | -5.75 | 97.74 | -62.66 | 94.78 | 0.8888 | 112.0 | -19.2 | |
| 1.61 | 4.25 | 1.94 | 5.09 | -13.85 | 94.65 | -65.75 | 103.73 | 0.9130 | 139.8 | 238.8 | |
| 0.00 | 0.34 | 0.00 | 0.39 | -10.55 | 96.06 | -64.33 | 100.14 | 0.9020 | -282.0 | -268.8 | |
| 0.00 | 0.93 | 0.00 | 1.13 | -13.70 | 94.58 | -65.81 | 103.56 | 0.9134 | -129.0 | -130.2 | |
| 1.02 | 1.78 | 1.17 | 2.05 | -10.21 | 95.84 | -64.55 | 99.76 | 0.9036 | 120.8 | 19.1 | |
| 0.00 | 5.35 | 0.00 | 6.15 | -9.79 | 95.79 | -64.60 | 99.29 | 0.9039 | -253.0 | -181.3 | |
| 3.91 | 72.07 | 4.31 | 81.86 | -5.47 | 96.93 | -63.46 | 94.48 | 0.8952 | -626.8 | -316.9 | |
| 3.23 | -43.00 | 3.62 | -43.00 | -5.24 | 96.51 | -63.89 | 94.23 | 0.8985 | -34.0 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.99 | -9.32 | 95.32 | -65.07 | 98.76 | 0.9073 | -188.0 | -183.7 | |
| 0.00 | 1.53 | 0.00 | 1.80 | -9.19 | 95.15 | -65.24 | 98.62 | 0.9085 | -389.0 | -352.9 | |
| 0.00 | 3.91 | 0.00 | 5.16 | -14.13 | 92.29 | -68.11 | 103.92 | 0.9287 | -613.0 | -519.4 | |
| 0.51 | 1.19 | 0.68 | 1.60 | -14.26 | 91.95 | -68.45 | 104.05 | 0.9308 | -467.0 | -425.2 | |
| 0.00 | 1.36 | 0.00 | 1.80 | -13.52 | 92.25 | -68.14 | 103.26 | 0.9288 | -449.0 | -451.1 | |
| 3.31 | -43.00 | 3.87 | -43.00 | -5.83 | 95.27 | -65.13 | 94.91 | 0.9077 | -702.4 | 999999 | |
| 0.34 | 4.25 | 0.41 | 5.13 | -8.06 | 94.59 | -65.80 | 97.37 | 0.9124 | 241.2 | -221.2 | |
| 12.41 | 104.79 | 14.73 | 126.64 | -6.88 | 94.87 | -65.53 | 96.07 | 0.9105 | -785.6 | -338.9 | |
| 3.23 | 41.13 | 4.10 | 52.72 | -10.79 | 93.15 | -67.25 | 100.34 | 0.9225 | -752.2 | -561.1 | |
| 0.00 | 0.93 | 0.00 | 1.19 | -10.01 | 93.10 | -67.29 | 99.49 | 0.9227 | -350.0 | -318.9 | |
| 0.00 | 0.51 | 0.00 | 0.63 | -8.63 | 93.65 | -66.75 | 97.99 | 0.9190 | -558.0 | -570.2 | |
| 7.05 | -52.00 | 8.61 | -52.00 | -6.81 | 94.15 | -66.25 | 96.00 | 0.9156 | -384.4 | 999999 | |
| 1.70 | 8.84 | 2.11 | 10.93 | -8.25 | 93.70 | -66.69 | 97.58 | 0.9186 | -565.2 | -552.6 | |
| 0.00 | 1.70 | 0.00 | 2.18 | -10.15 | 92.96 | -67.43 | 99.64 | 0.9237 | -409.0 | -413.5 | |
| 4.93 | 69.78 | 6.87 | 98.17 | -13.33 | 91.01 | -69.38 | 103.02 | 0.9363 | -833.6 | -328.6 | |
| 2.89 | 8.67 | 3.96 | 11.86 | -12.42 | 91.40 | -69.00 | 102.05 | 0.9339 | -615.4 | -531.9 | |
| 4.50 | -59.00 | 6.41 | -59.00 | -13.43 | 90.60 | -69.80 | 103.12 | 0.9388 | -340.2 | 999999 | |
| 8.16 | -52.00 | 10.10 | -52.00 | -6.35 | 93.75 | -66.65 | 95.50 | 0.9184 | -472.2 | 999999 | |
| 0.51 | 0.93 | 0.64 | 1.17 | -6.93 | 93.59 | -66.81 | 96.14 | 0.9195 | -69.3 | -42.4 | |
| 3.91 | 56.69 | 5.00 | 74.73 | -8.57 | 92.97 | -67.42 | 97.92 | 0.9236 | -688.8 | -340.0 | |
| 1.19 | -64.00 | 1.52 | -64.00 | -8.30 | 93.07 | -67.33 | 97.64 | 0.9229 | -588.4 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.67 | -10.62 | 92.10 | -68.29 | 100.13 | 0.9293 | -623.0 | -573.0 | |
| 0.00 | 0.93 | 0.00 | 1.20 | -9.09 | 92.77 | -67.63 | 98.49 | 0.9249 | -540.0 | -474.8 | |
| 0.42 | 1.70 | 0.53 | 2.11 | -5.55 | 93.79 | -66.60 | 94.63 | 0.9182 | -424.4 | -304.1 | |
| 0.00 | 1.19 | 0.00 | 1.63 | -11.93 | 91.34 | -69.06 | 101.53 | 0.9342 | -578.0 | -565.6 | |
| 0.68 | 3.65 | 0.96 | 5.18 | -12.22 | 90.64 | -69.75 | 101.83 | 0.9384 | -457.8 | -396.7 | |
| 0.00 | 9.35 | 0.00 | 13.09 | -11.72 | 90.85 | -69.55 | 101.30 | 0.9371 | -793.0 | -581.8 | |
| 0.00 | 1.53 | 0.00 | 2.06 | -9.94 | 91.76 | -68.64 | 99.40 | 0.9314 | -479.0 | -459.8 | |
| 1.19 | 2.46 | 1.75 | 3.64 | -13.18 | 89.77 | -70.63 | 102.83 | 0.9435 | -87.6 | -2.5 | |
| 0.00 | 0.93 | 0.00 | 1.36 | -12.53 | 90.10 | -70.30 | 102.14 | 0.9416 | -89.0 | -157.2 | |
| 4.25 | -64.00 | 5.70 | -64.00 | -9.10 | 91.79 | -68.60 | 98.50 | 0.9312 | -525.0 | 999999 | |
| 1.53 | -64.00 | 2.07 | -64.00 | -9.42 | 91.65 | -68.74 | 98.84 | 0.9320 | -583.1 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.93 | -9.92 | 91.43 | -68.96 | 99.38 | 0.9334 | -398.0 | -382.8 | |
| 0.00 | 1.27 | 0.00 | 1.68 | -7.61 | 92.28 | -68.12 | 96.89 | 0.9281 | 130.0 | 76.5 | |
| 0.00 | 1.02 | 0.00 | 1.45 | -11.29 | 90.65 | -69.74 | 100.84 | 0.9382 | -569.0 | -568.6 | |
| 0.42 | 1.02 | 0.63 | 1.51 | -12.63 | 89.76 | -70.64 | 102.25 | 0.9435 | -93.6 | -81.7 | |
| 0.34 | 2.12 | 0.49 | 3.02 | -11.07 | 90.42 | -69.98 | 100.59 | 0.9396 | -604.0 | -463.9 | |
| 0.85 | 31.87 | 1.25 | 47.36 | -11.79 | 89.91 | -70.48 | 101.36 | 0.9426 | -588.3 | -329.1 | |
| 0.00 | 0.68 | 0.00 | 0.95 | -9.30 | 90.95 | -69.45 | 98.71 | 0.9364 | -127.0 | -85.4 | |
| 0.00 | 1.27 | 0.00 | 1.76 | -8.71 | 91.11 | -69.28 | 98.08 | 0.9354 | -267.0 | -250.9 | |
| 1.61 | -82.00 | 2.39 | -82.00 | -11.48 | 89.64 | -70.75 | 101.02 | 0.9441 | -519.7 | 999999 | |
| 4.67 | -82.00 | 6.87 | -82.00 | -10.98 | 89.84 | -70.56 | 100.49 | 0.9430 | -541.2 | 999999 | |
| 0.00 | 0.85 | 0.00 | 1.19 | -8.99 | 90.82 | -69.58 | 98.38 | 0.9372 | -163.0 | -109.9 | |
| 0.85 | -82.00 | 1.28 | -82.00 | -11.01 | 89.35 | -71.04 | 100.53 | 0.9457 | -118.1 | 999999 | |
| 0.00 | 2.12 | 0.00 | 3.23 | -10.07 | 89.12 | -71.27 | 99.53 | 0.9470 | -65.0 | -108.5 | |
| 0.00 | 1.53 | 0.00 | 2.34 | -9.22 | 88.99 | -71.41 | 98.63 | 0.9477 | 314.0 | 156.8 | |
| 0.00 | 5.27 | 0.00 | 7.96 | -8.40 | 89.28 | -71.12 | 97.76 | 0.9461 | 21.0 | 81.2 | |
| 0.68 | 16.57 | 1.08 | 26.39 | -10.35 | 88.19 | -72.20 | 99.82 | 0.9520 | 146.2 | 196.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
