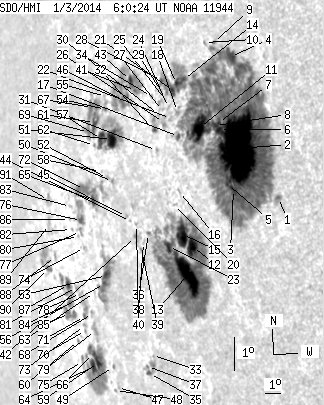

SDO HMI 2014-01-03 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 389.99 | 1921.48 | 406.56 | 1995.45 | -8.55 | 98.36 | -61.49 | 97.94 | 0.8768 | 290.6 | -3.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-03 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 5.95 | 1.04 | 5.20 | -9.08 | 104.40 | -55.45 | 98.77 | 0.8252 | 504.2 | 452.2 | |
| 144.15 | 1023.23 | 131.61 | 949.23 | -7.53 | 102.58 | -57.28 | 96.85 | 0.8422 | 1052.7 | 156.3 | |
| 3.65 | -2.00 | 3.39 | -2.00 | -8.72 | 102.02 | -57.83 | 98.25 | 0.8475 | 723.7 | 999999 | |
| 10.20 | -2.00 | 9.30 | -2.00 | -4.80 | 102.60 | -57.25 | 93.60 | 0.8419 | -590.5 | 999999 | |
| 0.93 | -2.00 | 0.88 | -2.00 | -8.56 | 101.72 | -58.13 | 98.05 | 0.8502 | 359.2 | 999999 | |
| 3.74 | -2.00 | 3.51 | -2.00 | -6.92 | 101.63 | -58.22 | 96.12 | 0.8508 | 389.9 | 999999 | |
| 0.93 | -2.00 | 0.88 | -2.00 | -6.71 | 101.62 | -58.23 | 95.87 | 0.8509 | 439.4 | 999999 | |
| 1.78 | -2.00 | 1.68 | -2.00 | -6.79 | 101.43 | -58.42 | 95.96 | 0.8526 | 449.4 | 999999 | |
| 0.42 | 1.27 | 0.40 | 1.19 | -4.35 | 101.71 | -58.14 | 93.08 | 0.8502 | -640.4 | -545.8 | |
| 0.00 | 1.27 | 0.00 | 1.21 | -4.32 | 101.20 | -58.65 | 93.06 | 0.8549 | -294.0 | -363.1 | |
| 22.44 | -2.00 | 21.71 | -2.00 | -6.81 | 100.50 | -59.35 | 95.97 | 0.8610 | 575.6 | 999999 | |
| 14.28 | 351.28 | 14.41 | 362.60 | -10.29 | 99.16 | -60.69 | 99.96 | 0.8732 | 1017.5 | 114.0 | |
| 37.40 | -12.00 | 38.44 | -12.00 | -11.10 | 98.57 | -61.29 | 100.86 | 0.8783 | 714.2 | 999999 | |
| 1.87 | -2.00 | 1.84 | -2.00 | -5.35 | 99.82 | -60.03 | 94.28 | 0.8670 | -624.5 | 999999 | |
| 20.06 | -12.00 | 20.55 | -12.00 | -9.90 | 98.66 | -61.19 | 99.51 | 0.8772 | 608.4 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.64 | -8.63 | 98.86 | -61.00 | 98.05 | 0.8753 | 523.0 | 439.6 | |
| 1.87 | 6.88 | 1.88 | 6.93 | -7.01 | 99.20 | -60.65 | 96.20 | 0.8723 | 198.1 | -45.8 | |
| 0.00 | 3.82 | 0.00 | 3.83 | -6.27 | 99.29 | -60.56 | 95.35 | 0.8715 | -3.0 | -74.8 | |
| 1.87 | -2.00 | 1.87 | -2.00 | -5.45 | 99.39 | -60.46 | 94.40 | 0.8707 | -964.1 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.22 | -9.00 | 98.44 | -61.41 | 98.46 | 0.8788 | 300.0 | 292.0 | |
| 3.82 | -2.00 | 3.86 | -2.00 | -5.64 | 99.11 | -60.74 | 94.63 | 0.8731 | 70.9 | 999999 | |
| 0.00 | 2.38 | 0.00 | 2.42 | -6.46 | 98.83 | -61.02 | 95.57 | 0.8754 | -593.0 | -497.9 | |
| 5.69 | -12.00 | 6.02 | -12.00 | -10.21 | 97.66 | -62.19 | 99.82 | 0.8854 | 203.2 | 999999 | |
| 0.00 | 2.12 | 0.00 | 2.16 | -6.13 | 98.77 | -61.08 | 95.19 | 0.8759 | -196.0 | -159.8 | |
| 0.00 | 0.68 | 0.00 | 0.70 | -5.88 | 98.63 | -61.22 | 94.91 | 0.8771 | 139.0 | 111.9 | |
| 0.00 | 6.71 | 0.00 | 6.92 | -6.55 | 98.37 | -61.48 | 95.68 | 0.8792 | -619.0 | -472.7 | |
| 0.00 | 0.34 | 0.00 | 0.35 | -6.20 | 98.38 | -61.47 | 95.27 | 0.8791 | -334.0 | -298.2 | |
| 1.53 | -2.00 | 1.57 | -2.00 | -5.31 | 98.49 | -61.36 | 94.26 | 0.8783 | -579.7 | 999999 | |
| 0.00 | 2.04 | 0.00 | 2.10 | -5.63 | 98.43 | -61.42 | 94.63 | 0.8788 | 1.0 | -58.8 | |
| 0.00 | 0.93 | 0.00 | 0.97 | -6.30 | 98.11 | -61.74 | 95.39 | 0.8814 | -418.0 | -355.0 | |
| 0.00 | 1.27 | 0.00 | 1.34 | -7.35 | 97.74 | -62.11 | 96.59 | 0.8844 | 143.0 | 119.1 | |
| 1.27 | 8.07 | 1.34 | 8.49 | -6.76 | 97.75 | -62.10 | 95.91 | 0.8843 | -550.4 | -490.3 | |
| 0.00 | 0.68 | 0.00 | 0.78 | -13.37 | 95.24 | -64.61 | 103.25 | 0.9048 | 348.0 | 369.8 | |
| 0.42 | 1.36 | 0.45 | 1.43 | -5.75 | 97.78 | -62.08 | 94.77 | 0.8841 | 2.6 | -52.4 | |
| 1.36 | 11.22 | 1.60 | 13.10 | -13.89 | 94.75 | -65.10 | 103.80 | 0.9085 | 222.9 | 238.0 | |
| 0.85 | 1.95 | 0.93 | 2.14 | -9.76 | 96.50 | -63.35 | 99.29 | 0.8944 | 272.9 | 171.5 | |
| 0.51 | -35.00 | 0.60 | -35.00 | -13.67 | 94.72 | -65.13 | 103.56 | 0.9087 | -43.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.70 | -10.01 | 96.07 | -63.78 | 99.55 | 0.8978 | 247.0 | 209.1 | |
| 0.42 | 1.44 | 0.48 | 1.62 | -10.21 | 95.86 | -63.99 | 99.77 | 0.8994 | 173.8 | 88.8 | |
| 0.00 | 0.93 | 0.00 | 1.05 | -9.46 | 95.79 | -64.07 | 98.93 | 0.8998 | -5.0 | -10.2 | |
| 1.10 | 72.84 | 1.20 | 81.04 | -5.52 | 96.78 | -63.07 | 94.53 | 0.8921 | -719.2 | -300.8 | |
| 0.93 | 6.37 | 1.06 | 7.19 | -9.81 | 95.59 | -64.26 | 99.31 | 0.9013 | -461.2 | -188.1 | |
| 2.80 | -41.00 | 3.08 | -41.00 | -5.21 | 96.51 | -63.34 | 94.18 | 0.8943 | 6.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.97 | -9.35 | 95.41 | -64.44 | 98.80 | 0.9026 | -61.0 | -83.1 | |
| 0.00 | 1.78 | 0.00 | 2.05 | -9.19 | 95.18 | -64.67 | 98.62 | 0.9043 | -432.0 | -361.3 | |
| 6.71 | -41.00 | 7.52 | -41.00 | -5.77 | 95.92 | -63.93 | 94.82 | 0.8987 | -385.6 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.88 | -14.18 | 92.12 | -67.73 | 103.99 | 0.9263 | -667.0 | -622.0 | |
| 0.42 | 0.93 | 0.56 | 1.23 | -14.26 | 91.91 | -67.94 | 104.06 | 0.9277 | -445.6 | -421.3 | |
| 0.59 | 1.61 | 0.77 | 2.09 | -13.54 | 92.19 | -67.67 | 103.30 | 0.9257 | -484.0 | -492.2 | |
| 0.51 | 1.36 | 0.60 | 1.60 | -8.11 | 94.54 | -65.31 | 97.42 | 0.9089 | 252.2 | 118.8 | |
| 11.73 | 57.37 | 13.64 | 66.92 | -6.88 | 94.83 | -65.02 | 96.06 | 0.9068 | -798.3 | -426.2 | |
| 0.00 | 1.70 | 0.00 | 2.02 | -8.00 | 94.21 | -65.64 | 97.31 | 0.9113 | -455.0 | -387.6 | |
| 5.86 | 47.43 | 7.31 | 59.45 | -10.84 | 93.05 | -66.81 | 100.40 | 0.9196 | -771.3 | -544.9 | |
| 1.10 | 5.27 | 1.30 | 6.18 | -5.97 | 94.62 | -65.23 | 95.07 | 0.9084 | -646.8 | -542.4 | |
| 0.00 | 0.25 | 0.00 | 0.30 | -5.59 | 94.71 | -65.14 | 94.64 | 0.9078 | -499.0 | -493.0 | |
| 1.78 | -53.00 | 2.25 | -53.00 | -11.07 | 92.79 | -67.07 | 100.64 | 0.9213 | -737.3 | 999999 | |
| 7.82 | -51.00 | 9.35 | -51.00 | -6.84 | 94.12 | -65.74 | 96.03 | 0.9120 | -403.3 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.62 | -7.77 | 93.77 | -66.08 | 97.05 | 0.9144 | -408.0 | -466.5 | |
| 4.33 | 74.20 | 5.90 | 102.10 | -13.36 | 91.05 | -68.80 | 103.07 | 0.9328 | -871.5 | -302.3 | |
| 0.00 | 7.48 | 0.00 | 10.02 | -12.41 | 91.37 | -68.49 | 102.06 | 0.9307 | -617.0 | -611.2 | |
| 8.41 | 40.54 | 10.21 | 49.42 | -6.31 | 93.74 | -66.11 | 95.45 | 0.9147 | -491.4 | -210.7 | |
| 0.34 | 1.02 | 0.42 | 1.25 | -6.99 | 93.56 | -66.30 | 96.19 | 0.9159 | -95.5 | -59.2 | |
| 0.00 | 0.59 | 0.00 | 0.78 | -11.29 | 91.88 | -67.97 | 100.86 | 0.9273 | -503.0 | -478.7 | |
| 5.69 | -59.00 | 7.91 | -59.00 | -13.46 | 90.56 | -69.29 | 103.16 | 0.9358 | -351.3 | 999999 | |
| 3.31 | 59.66 | 4.15 | 75.94 | -8.59 | 92.96 | -66.89 | 97.95 | 0.9200 | -718.0 | -414.6 | |
| 1.36 | -59.00 | 1.87 | -59.00 | -13.08 | 90.80 | -69.05 | 102.76 | 0.9343 | -679.1 | 999999 | |
| 8.07 | -61.00 | 9.81 | -61.00 | -5.87 | 93.70 | -66.15 | 94.96 | 0.9150 | -398.4 | 999999 | |
| 0.00 | 1.95 | 0.00 | 2.62 | -11.90 | 91.40 | -68.45 | 101.51 | 0.9304 | -617.0 | -535.9 | |
| 2.04 | -61.00 | 2.53 | -61.00 | -6.58 | 93.22 | -66.63 | 95.76 | 0.9183 | 240.3 | 999999 | |
| 0.00 | 1.10 | 0.00 | 1.53 | -12.37 | 90.54 | -69.31 | 101.99 | 0.9358 | -475.0 | -439.8 | |
| 1.19 | 10.71 | 1.64 | 14.65 | -11.95 | 90.69 | -69.16 | 101.55 | 0.9348 | -596.9 | -552.8 | |
| 10.28 | -65.00 | 13.17 | -65.00 | -8.24 | 92.39 | -67.46 | 97.56 | 0.9238 | -300.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 2.12 | -12.22 | 90.54 | -69.31 | 101.83 | 0.9357 | -462.0 | -389.2 | |
| 0.00 | 1.10 | 0.00 | 1.46 | -9.93 | 91.71 | -68.14 | 99.39 | 0.9282 | -610.0 | -541.6 | |
| 0.00 | 3.48 | 0.00 | 5.02 | -13.26 | 89.72 | -70.14 | 102.93 | 0.9407 | -104.0 | -37.4 | |
| 3.06 | -65.00 | 4.02 | -65.00 | -9.13 | 91.81 | -68.04 | 98.53 | 0.9276 | -577.5 | 999999 | |
| 1.27 | 3.23 | 1.68 | 4.27 | -9.45 | 91.60 | -68.25 | 98.87 | 0.9290 | -589.3 | -486.6 | |
| 0.00 | 2.12 | 0.00 | 2.92 | -11.26 | 90.73 | -69.12 | 100.81 | 0.9345 | -608.0 | -577.9 | |
| 0.59 | 1.53 | 0.86 | 2.20 | -12.63 | 89.76 | -70.09 | 102.25 | 0.9404 | -137.1 | -92.7 | |
| 0.00 | 0.59 | 0.00 | 0.80 | -9.59 | 91.37 | -68.48 | 99.02 | 0.9304 | -392.0 | -332.7 | |
| 0.00 | 2.38 | 0.00 | 3.31 | -11.07 | 90.49 | -69.36 | 100.60 | 0.9359 | -563.0 | -491.5 | |
| 0.00 | 0.68 | 0.00 | 0.93 | -9.35 | 90.89 | -68.96 | 98.76 | 0.9334 | -21.0 | -46.9 | |
| 0.00 | 1.10 | 0.00 | 1.49 | -8.68 | 91.09 | -68.76 | 98.04 | 0.9322 | -341.0 | -281.8 | |
| 1.95 | 35.02 | 2.82 | 50.73 | -11.50 | 89.63 | -70.22 | 101.06 | 0.9410 | -551.9 | -323.8 | |
| 8.16 | -84.00 | 11.89 | -84.00 | -11.80 | 89.46 | -70.39 | 101.36 | 0.9421 | -338.4 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.81 | -9.05 | 90.85 | -69.00 | 98.44 | 0.9336 | -106.0 | -94.3 | |
| 3.31 | -84.00 | 4.75 | -84.00 | -10.95 | 89.85 | -70.00 | 100.46 | 0.9397 | -550.4 | 999999 | |
| 0.00 | 2.04 | 0.00 | 3.02 | -10.07 | 89.14 | -70.71 | 99.52 | 0.9438 | -123.0 | -115.9 | |
| 0.00 | 5.61 | 0.00 | 8.34 | -9.10 | 89.06 | -70.79 | 98.50 | 0.9442 | 262.0 | 205.2 | |
| 2.63 | 17.42 | 4.05 | 27.01 | -10.38 | 88.31 | -71.54 | 99.86 | 0.9484 | 21.9 | 243.4 | |
| 0.00 | 6.71 | 0.00 | 9.85 | -8.40 | 89.29 | -70.56 | 97.75 | 0.9430 | 27.0 | 75.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
