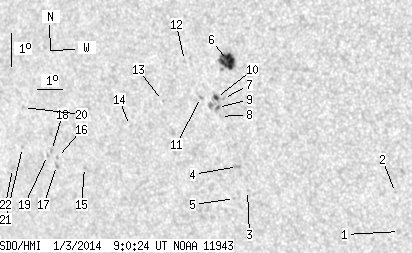

SDO HMI 2014-01-03 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.76 | 53.25 | 11.41 | 35.28 | -12.61 | 117.40 | -40.82 | 105.46 | 0.6629 | 339.6 | 159.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-03 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.19 | -16.57 | 124.73 | -33.49 | 114.31 | 0.5826 | 592.0 | 437.3 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -15.39 | 124.80 | -33.41 | 112.40 | 0.5765 | 728.0 | 622.5 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -15.15 | 119.23 | -38.98 | 109.73 | 0.6475 | 754.0 | 538.1 | |
| 0.00 | 2.38 | 0.00 | 1.54 | -14.41 | 119.00 | -39.22 | 108.54 | 0.6483 | 868.0 | 599.6 | |
| 0.00 | 0.76 | 0.00 | 0.50 | -15.37 | 118.67 | -39.55 | 109.87 | 0.6552 | 506.0 | 430.9 | |
| 15.47 | 20.91 | 9.92 | 13.42 | -11.24 | 119.20 | -39.01 | 103.73 | 0.6379 | 897.1 | 507.5 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -12.36 | 118.85 | -39.36 | 105.38 | 0.6449 | 708.0 | 569.5 | |
| 0.00 | 0.59 | 0.00 | 0.39 | -12.89 | 118.64 | -39.58 | 106.13 | 0.6489 | 523.0 | 460.6 | |
| 0.59 | 3.40 | 0.39 | 2.21 | -12.62 | 118.57 | -39.65 | 105.70 | 0.6491 | 806.4 | 532.1 | |
| 1.70 | 7.48 | 1.10 | 4.86 | -12.32 | 118.59 | -39.63 | 105.25 | 0.6482 | 835.6 | 562.7 | |
| 0.00 | 1.53 | 0.00 | 1.00 | -12.30 | 117.96 | -40.26 | 105.06 | 0.6562 | 719.0 | 499.1 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -11.18 | 117.52 | -40.69 | 103.27 | 0.6595 | 525.0 | 428.0 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -12.33 | 116.43 | -41.79 | 104.75 | 0.6756 | -676.0 | -655.8 | |
| 0.00 | 0.59 | 0.00 | 0.41 | -13.02 | 114.92 | -43.29 | 105.42 | 0.6954 | -575.0 | -521.6 | |
| 0.00 | 1.19 | 0.00 | 0.85 | -14.20 | 112.72 | -45.49 | 106.59 | 0.7238 | -620.0 | -528.6 | |
| 0.00 | 0.93 | 0.00 | 0.68 | -13.85 | 111.63 | -46.59 | 105.89 | 0.7357 | -673.0 | -639.9 | |
| 0.00 | 2.12 | 0.00 | 1.55 | -14.09 | 111.52 | -46.70 | 106.19 | 0.7374 | -706.0 | -541.5 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -13.63 | 111.42 | -46.80 | 105.55 | 0.7377 | -717.0 | -608.6 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -13.78 | 111.20 | -47.02 | 105.70 | 0.7404 | -541.0 | -443.6 | |
| 0.00 | 0.93 | 0.00 | 0.69 | -12.30 | 110.50 | -47.72 | 103.61 | 0.7461 | -500.0 | -424.5 | |
| 0.00 | 0.93 | 0.00 | 0.70 | -13.49 | 110.15 | -48.07 | 105.13 | 0.7517 | -532.0 | -482.0 | |
| 0.00 | 2.04 | 0.00 | 1.55 | -14.10 | 109.52 | -48.70 | 105.82 | 0.7596 | -656.0 | -478.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
