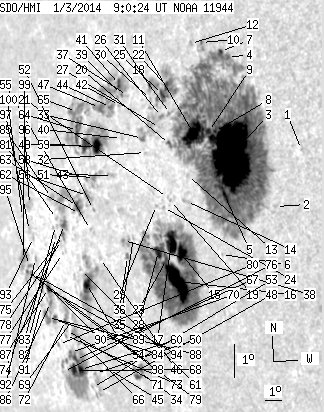

SDO HMI 2014-01-03 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 427.97 | 2111.81 | 426.35 | 2087.57 | -8.62 | 98.27 | -59.95 | 98.04 | 0.8638 | 302.0 | -17.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-03 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.82 | -7.58 | 106.17 | -52.05 | 97.05 | 0.7899 | 689.0 | 578.8 | |
| 0.00 | 1.95 | 0.00 | 1.63 | -9.20 | 104.55 | -53.66 | 99.01 | 0.8074 | 474.0 | 395.7 | |
| 168.63 | 1057.50 | 147.46 | 933.82 | -7.56 | 102.62 | -55.60 | 96.92 | 0.8261 | 985.9 | 170.7 | |
| 1.61 | -3.00 | 1.40 | -3.00 | -4.70 | 102.86 | -55.35 | 93.43 | 0.8236 | -810.2 | 999999 | |
| 6.63 | -3.00 | 5.89 | -3.00 | -8.72 | 101.99 | -56.22 | 98.30 | 0.8325 | 651.5 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.54 | -10.48 | 101.37 | -56.85 | 100.38 | 0.8391 | -317.0 | -269.1 | |
| 1.53 | -3.00 | 1.34 | -3.00 | -4.50 | 102.52 | -55.70 | 93.21 | 0.8270 | -726.3 | 999999 | |
| 1.53 | -3.00 | 1.36 | -3.00 | -6.84 | 101.84 | -56.37 | 96.03 | 0.8335 | 430.4 | 999999 | |
| 2.55 | -3.00 | 2.29 | -3.00 | -6.82 | 101.52 | -56.70 | 96.01 | 0.8366 | 525.6 | 999999 | |
| 0.76 | 4.08 | 0.69 | 3.67 | -4.19 | 101.54 | -56.68 | 92.85 | 0.8366 | -523.1 | -491.3 | |
| 29.75 | -3.00 | 27.31 | -3.00 | -6.88 | 100.74 | -57.48 | 96.06 | 0.8440 | 568.7 | 999999 | |
| 0.00 | 2.21 | 0.00 | 2.02 | -4.19 | 100.94 | -57.28 | 92.86 | 0.8423 | -627.0 | -405.5 | |
| 0.00 | 1.70 | 0.00 | 1.59 | -8.06 | 100.10 | -58.12 | 97.46 | 0.8501 | -467.0 | -310.5 | |
| 0.00 | 3.65 | 0.00 | 3.44 | -8.82 | 99.85 | -58.36 | 98.35 | 0.8524 | 339.0 | 256.4 | |
| 10.79 | 374.91 | 10.38 | 368.29 | -10.34 | 99.13 | -59.08 | 100.09 | 0.8593 | 1055.9 | 110.4 | |
| 36.80 | -15.00 | 35.97 | -15.00 | -11.16 | 98.63 | -59.59 | 101.01 | 0.8640 | 710.0 | 999999 | |
| 18.44 | -15.00 | 17.98 | -15.00 | -9.99 | 98.65 | -59.57 | 99.66 | 0.8634 | 651.8 | 999999 | |
| 0.00 | 2.46 | 0.00 | 2.34 | -6.19 | 99.51 | -58.71 | 95.25 | 0.8552 | -256.0 | -132.5 | |
| 0.00 | 1.02 | 0.00 | 0.99 | -8.75 | 98.94 | -59.27 | 98.23 | 0.8605 | 539.0 | 470.9 | |
| 1.61 | -3.00 | 1.54 | -3.00 | -7.10 | 99.27 | -58.94 | 96.31 | 0.8574 | 236.1 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.66 | -8.65 | 98.79 | -59.43 | 98.11 | 0.8619 | 251.0 | 185.6 | |
| 3.14 | 52.53 | 2.99 | 50.20 | -5.36 | 99.42 | -58.79 | 94.27 | 0.8561 | -893.5 | -321.5 | |
| 1.95 | -15.00 | 1.93 | -15.00 | -10.48 | 98.20 | -60.02 | 100.20 | 0.8675 | 464.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.25 | -8.94 | 98.48 | -59.74 | 98.43 | 0.8647 | 389.0 | 345.3 | |
| 3.31 | -22.00 | 3.18 | -22.00 | -5.61 | 99.15 | -59.07 | 94.57 | 0.8585 | 132.7 | 999999 | |
| 1.19 | 29.75 | 1.15 | 29.31 | -6.25 | 98.98 | -59.24 | 95.32 | 0.8600 | -458.4 | -413.9 | |
| 0.00 | 1.27 | 0.00 | 1.24 | -6.57 | 98.80 | -59.42 | 95.69 | 0.8616 | -653.0 | -589.6 | |
| 7.56 | -15.00 | 7.56 | -15.00 | -10.22 | 97.79 | -60.42 | 99.89 | 0.8709 | 270.7 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.18 | -8.86 | 98.08 | -60.14 | 98.33 | 0.8681 | -258.0 | -268.9 | |
| 0.00 | 1.70 | 0.00 | 1.66 | -5.72 | 98.43 | -59.79 | 94.71 | 0.8649 | 71.0 | 15.4 | |
| 1.19 | -22.00 | 1.17 | -22.00 | -5.28 | 98.44 | -59.78 | 94.19 | 0.8648 | -322.8 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.93 | -7.27 | 97.81 | -60.40 | 96.49 | 0.8701 | 221.0 | 104.5 | |
| 2.04 | -26.00 | 2.04 | -26.00 | -6.85 | 97.72 | -60.49 | 96.01 | 0.8709 | -592.0 | 999999 | |
| 7.73 | 12.32 | 8.46 | 13.48 | -13.72 | 95.17 | -63.05 | 103.73 | 0.8933 | 384.7 | 229.3 | |
| 0.00 | 1.27 | 0.00 | 1.33 | -9.73 | 96.39 | -61.83 | 99.28 | 0.8824 | 175.0 | 188.4 | |
| 1.61 | 2.72 | 1.72 | 2.89 | -10.27 | 95.82 | -62.40 | 99.87 | 0.8871 | 145.8 | 41.9 | |
| 0.00 | 1.27 | 0.00 | 1.30 | -5.54 | 97.06 | -61.15 | 94.51 | 0.8765 | -458.0 | -459.6 | |
| 1.02 | 6.71 | 1.09 | 7.13 | -9.78 | 95.72 | -62.50 | 99.33 | 0.8877 | -391.5 | -8.3 | |
| 0.76 | 137.52 | 0.79 | 151.12 | -5.49 | 96.70 | -61.52 | 94.46 | 0.8796 | -468.0 | -220.5 | |
| 0.00 | 1.27 | 0.00 | 1.33 | -6.78 | 96.43 | -61.78 | 95.93 | 0.8817 | -558.0 | -419.5 | |
| 3.31 | -39.00 | 3.44 | -39.00 | -5.19 | 96.62 | -61.59 | 94.12 | 0.8802 | 175.1 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.24 | -5.80 | 96.51 | -61.70 | 94.82 | 0.8811 | -175.0 | -124.4 | |
| 0.00 | 3.99 | 0.00 | 4.28 | -7.84 | 95.59 | -62.62 | 97.13 | 0.8885 | -442.0 | -286.9 | |
| 1.78 | -39.00 | 1.89 | -39.00 | -5.83 | 95.93 | -62.28 | 94.86 | 0.8858 | -401.6 | 999999 | |
| 0.00 | 2.38 | 0.00 | 2.79 | -13.53 | 93.09 | -65.13 | 103.40 | 0.9085 | -428.0 | -370.4 | |
| 0.00 | 1.70 | 0.00 | 1.92 | -10.23 | 94.01 | -64.21 | 99.79 | 0.9010 | -369.0 | -296.2 | |
| 7.31 | -39.00 | 7.92 | -39.00 | -5.80 | 95.22 | -62.99 | 94.83 | 0.8915 | -541.7 | 999999 | |
| 0.00 | 4.50 | 0.00 | 5.52 | -14.17 | 91.99 | -66.23 | 104.04 | 0.9164 | -634.0 | -544.7 | |
| 9.77 | 60.09 | 10.76 | 66.31 | -6.93 | 94.77 | -63.45 | 96.11 | 0.8950 | -803.8 | -443.7 | |
| 0.42 | 5.35 | 0.52 | 6.53 | -13.60 | 92.09 | -66.13 | 103.42 | 0.9156 | -605.2 | -544.6 | |
| 2.38 | 13.68 | 2.66 | 15.29 | -7.84 | 94.39 | -63.83 | 97.12 | 0.8979 | -526.8 | -384.3 | |
| 0.42 | 1.10 | 0.48 | 1.25 | -8.77 | 94.04 | -64.18 | 98.16 | 0.9006 | 33.8 | 17.6 | |
| 0.00 | 0.76 | 0.00 | 0.95 | -14.00 | 91.63 | -66.59 | 103.84 | 0.9188 | -469.0 | -443.4 | |
| 0.00 | 1.87 | 0.00 | 2.24 | -12.17 | 92.53 | -65.69 | 101.88 | 0.9121 | -365.0 | -308.3 | |
| 0.00 | 0.85 | 0.00 | 0.97 | -9.35 | 93.63 | -64.58 | 98.79 | 0.9037 | -284.0 | -277.7 | |
| 3.14 | 12.24 | 3.59 | 13.95 | -8.34 | 93.76 | -64.46 | 97.68 | 0.9027 | -541.6 | -472.7 | |
| 6.37 | 54.48 | 7.55 | 64.30 | -10.92 | 92.73 | -65.48 | 100.51 | 0.9104 | -794.8 | -520.9 | |
| 0.85 | -51.00 | 0.97 | -51.00 | -7.84 | 93.84 | -64.38 | 97.12 | 0.9020 | -546.9 | 999999 | |
| 8.92 | -49.00 | 10.08 | -49.00 | -6.87 | 94.04 | -64.18 | 96.04 | 0.9006 | -479.6 | 999999 | |
| 3.74 | 81.59 | 4.75 | 104.97 | -13.42 | 91.02 | -67.19 | 103.19 | 0.9226 | -851.5 | -282.2 | |
| 0.00 | 1.02 | 0.00 | 1.22 | -10.48 | 92.48 | -65.74 | 100.03 | 0.9122 | -518.0 | -454.3 | |
| 0.42 | 49.38 | 0.50 | 59.60 | -8.84 | 93.03 | -65.19 | 98.22 | 0.9080 | -726.6 | -323.5 | |
| 3.82 | -62.00 | 4.49 | -62.00 | -8.63 | 92.96 | -65.26 | 97.99 | 0.9086 | -716.2 | 999999 | |
| 9.09 | -39.00 | 10.43 | -39.00 | -6.40 | 93.60 | -64.62 | 95.52 | 0.9039 | -454.6 | 999999 | |
| 8.33 | -39.00 | 9.55 | -39.00 | -5.84 | 93.66 | -64.56 | 94.90 | 0.9035 | -428.5 | 999999 | |
| 0.00 | 10.45 | 0.00 | 13.15 | -12.41 | 91.27 | -66.95 | 102.09 | 0.9208 | -557.0 | -579.4 | |
| 2.72 | -60.00 | 3.48 | -60.00 | -13.11 | 90.81 | -67.41 | 102.84 | 0.9240 | -751.9 | 999999 | |
| 6.29 | -60.00 | 8.16 | -60.00 | -13.43 | 90.54 | -67.68 | 103.17 | 0.9258 | -388.1 | 999999 | |
| 0.00 | 4.42 | 0.00 | 5.54 | -11.90 | 91.30 | -66.92 | 101.54 | 0.9205 | -657.0 | -527.5 | |
| 0.85 | -60.00 | 1.10 | -60.00 | -12.88 | 90.53 | -67.68 | 102.58 | 0.9257 | -575.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.98 | -12.22 | 90.58 | -67.64 | 101.87 | 0.9253 | -530.0 | -423.9 | |
| 2.21 | 7.82 | 2.84 | 10.01 | -11.92 | 90.65 | -67.56 | 101.55 | 0.9247 | -652.5 | -559.2 | |
| 0.51 | 1.53 | 0.66 | 1.99 | -12.36 | 90.42 | -67.80 | 102.02 | 0.9263 | -393.7 | -355.9 | |
| 3.82 | -62.00 | 4.69 | -62.00 | -9.10 | 91.83 | -66.39 | 98.50 | 0.9165 | -597.4 | 999999 | |
| 2.12 | -62.00 | 2.63 | -62.00 | -9.42 | 91.63 | -66.59 | 98.85 | 0.9179 | -598.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 1.37 | -13.41 | 89.64 | -68.57 | 103.12 | 0.9314 | 46.0 | 30.1 | |
| 0.00 | 0.42 | 0.00 | 0.53 | -9.95 | 91.34 | -66.88 | 99.42 | 0.9199 | -331.0 | -302.0 | |
| 0.00 | 1.78 | 0.00 | 2.22 | -9.56 | 91.42 | -66.79 | 99.00 | 0.9193 | -367.0 | -391.7 | |
| 0.00 | 4.50 | 0.00 | 5.82 | -11.26 | 90.59 | -67.63 | 100.83 | 0.9251 | -701.0 | -598.3 | |
| 0.42 | 1.27 | 0.57 | 1.71 | -12.60 | 89.71 | -68.51 | 102.25 | 0.9308 | -178.4 | -143.2 | |
| 0.00 | 1.36 | 0.00 | 1.70 | -8.90 | 91.29 | -66.92 | 98.27 | 0.9202 | -254.0 | -219.1 | |
| 0.00 | 0.85 | 0.00 | 1.08 | -9.45 | 91.00 | -67.21 | 98.87 | 0.9222 | -225.0 | -184.7 | |
| 0.00 | 0.59 | 0.00 | 0.75 | -9.10 | 91.14 | -67.08 | 98.49 | 0.9212 | -97.0 | -131.6 | |
| 3.06 | 29.07 | 4.08 | 39.02 | -11.85 | 89.80 | -68.42 | 101.45 | 0.9302 | -534.3 | -424.4 | |
| 1.19 | 4.42 | 1.50 | 5.58 | -8.26 | 91.14 | -67.08 | 97.58 | 0.9212 | 122.4 | 11.8 | |
| 1.36 | -84.00 | 1.82 | -84.00 | -11.33 | 89.74 | -68.48 | 100.89 | 0.9305 | -634.1 | 999999 | |
| 4.42 | -84.00 | 5.89 | -84.00 | -10.91 | 89.78 | -68.43 | 100.44 | 0.9302 | -546.2 | 999999 | |
| 4.67 | -84.00 | 6.39 | -84.00 | -11.76 | 89.26 | -68.96 | 101.34 | 0.9335 | -233.0 | 999999 | |
| 1.61 | 4.50 | 2.20 | 6.14 | -10.83 | 89.32 | -68.89 | 100.35 | 0.9330 | -96.4 | -127.8 | |
| 0.25 | -89.00 | 0.35 | -89.00 | -10.62 | 89.34 | -68.87 | 100.12 | 0.9329 | -283.0 | 999999 | |
| 0.00 | 1.10 | 0.00 | 1.53 | -11.38 | 88.95 | -69.27 | 100.93 | 0.9354 | -54.0 | -25.5 | |
| 0.00 | 1.36 | 0.00 | 1.87 | -9.98 | 89.14 | -69.07 | 99.43 | 0.9341 | -266.0 | -199.0 | |
| 0.00 | 1.87 | 0.00 | 2.55 | -9.36 | 89.26 | -68.96 | 98.77 | 0.9334 | -166.0 | -129.8 | |
| 0.76 | 9.77 | 1.08 | 13.86 | -10.40 | 88.59 | -69.62 | 99.88 | 0.9375 | -181.8 | 46.8 | |
| 1.19 | -94.00 | 1.68 | -94.00 | -10.16 | 88.54 | -69.68 | 99.62 | 0.9378 | -184.7 | 999999 | |
| 0.00 | 6.46 | 0.00 | 8.79 | -8.37 | 89.32 | -68.89 | 97.71 | 0.9330 | 77.0 | 99.3 | |
| 0.00 | 2.72 | 0.00 | 3.75 | -9.13 | 89.01 | -69.20 | 98.53 | 0.9349 | 257.0 | 187.5 | |
| 0.76 | -94.00 | 1.09 | -94.00 | -10.32 | 88.28 | -69.94 | 99.80 | 0.9393 | 174.8 | 999999 | |
| 7.56 | 12.58 | 10.87 | 18.07 | -9.95 | 88.11 | -70.11 | 99.40 | 0.9403 | 340.0 | 260.7 | |
| 0.00 | 0.76 | 0.00 | 1.07 | -8.69 | 88.60 | -69.62 | 98.06 | 0.9374 | -283.0 | -233.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
