SDO HMI 2014-01-03 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 466.84 | 2293.88 | 422.31 | 2071.98 | -8.70 | 98.23 | -56.70 | 98.23 | 0.8344 | 241.0 | 14.6 | |
|
previous
or next observation for the same group /

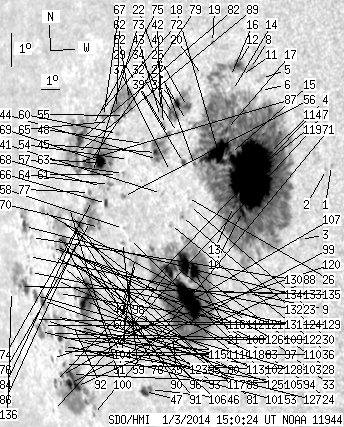

back to the solar disc SDO HMI 2014-01-03 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.27 | -7.56 | 106.50 | -48.43 | 97.19 | 0.7499 | 640.0 | 450.0 | |
| 0.00 | 1.95 | 0.00 | 1.46 | -7.67 | 106.26 | -48.67 | 97.32 | 0.7527 | 490.0 | 485.0 | |
| 0.00 | 0.93 | 0.00 | 0.72 | -9.69 | 104.69 | -50.24 | 99.86 | 0.7714 | -384.0 | -276.4 | |
| 2.04 | 1108.02 | 1.61 | 900.29 | -7.06 | 103.71 | -51.22 | 96.40 | 0.7809 | 1450.9 | 241.4 | |
| 0.00 | 3.91 | 0.00 | 3.09 | -4.86 | 103.62 | -51.31 | 93.58 | 0.7816 | -291.0 | -307.7 | |
| 0.00 | 0.59 | 0.00 | 0.47 | -5.21 | 103.53 | -51.40 | 94.04 | 0.7825 | -84.0 | -20.7 | |
| 168.46 | -4.00 | 136.00 | -4.00 | -7.66 | 102.69 | -52.24 | 97.14 | 0.7920 | 932.1 | 999999 | |
| 0.00 | 2.97 | 0.00 | 2.37 | -4.54 | 103.12 | -51.81 | 93.18 | 0.7870 | -698.0 | -548.7 | |
| 0.51 | 1.53 | 0.42 | 1.27 | -11.17 | 101.76 | -53.17 | 101.48 | 0.8035 | -480.5 | -414.7 | |
| 4.25 | -4.00 | 3.48 | -4.00 | -8.73 | 102.09 | -52.84 | 98.46 | 0.7987 | 705.9 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.89 | -4.73 | 102.67 | -52.26 | 93.43 | 0.7918 | 454.0 | 401.5 | |
| 2.80 | -4.00 | 2.27 | -4.00 | -4.40 | 102.51 | -52.42 | 93.01 | 0.7936 | -552.8 | 999999 | |
| 0.85 | -4.00 | 0.70 | -4.00 | -8.57 | 101.67 | -53.26 | 98.23 | 0.8029 | 170.6 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.97 | -5.15 | 102.18 | -52.75 | 93.96 | 0.7970 | -194.0 | -154.6 | |
| 1.95 | -4.00 | 1.61 | -4.00 | -7.00 | 101.81 | -53.11 | 96.28 | 0.8009 | 698.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.69 | -4.73 | 102.13 | -52.80 | 93.44 | 0.7975 | 202.0 | 161.8 | |
| 1.44 | -4.00 | 1.19 | -4.00 | -6.28 | 101.73 | -53.20 | 95.38 | 0.8017 | 545.4 | 999999 | |
| 35.85 | -4.00 | 29.94 | -4.00 | -6.94 | 101.22 | -53.71 | 96.19 | 0.8070 | 512.7 | 999999 | |
| 0.34 | 1.27 | 0.28 | 1.06 | -3.69 | 101.34 | -53.59 | 92.15 | 0.8059 | -491.2 | -429.3 | |
| 0.00 | 1.36 | 0.00 | 1.15 | -4.64 | 100.74 | -54.19 | 93.34 | 0.8119 | -329.0 | -424.2 | |
| 13.76 | 410.57 | 12.09 | 367.69 | -10.39 | 99.22 | -55.71 | 100.33 | 0.8282 | 1070.8 | 132.1 | |
| 0.76 | -4.00 | 0.66 | -4.00 | -7.24 | 99.94 | -54.99 | 96.53 | 0.8201 | 217.9 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.67 | -8.43 | 99.44 | -55.49 | 97.97 | 0.8253 | 455.0 | 453.7 | |
| 41.20 | -21.00 | 36.78 | -21.00 | -11.20 | 98.66 | -56.27 | 101.27 | 0.8340 | 713.0 | 999999 | |
| 3.31 | 44.60 | 2.86 | 38.82 | -5.51 | 99.85 | -55.07 | 94.42 | 0.8208 | -377.7 | -188.7 | |
| 0.00 | 0.68 | 0.00 | 0.59 | -8.19 | 99.38 | -55.55 | 97.68 | 0.8258 | 416.0 | 406.8 | |
| 0.00 | 1.19 | 0.00 | 1.03 | -5.92 | 99.74 | -55.19 | 94.92 | 0.8219 | -344.0 | -205.1 | |
| 20.90 | -21.00 | 18.60 | -21.00 | -10.13 | 98.70 | -56.23 | 99.98 | 0.8331 | 713.2 | 999999 | |
| 2.38 | 3.31 | 2.08 | 2.89 | -7.15 | 99.38 | -55.55 | 96.41 | 0.8256 | 309.8 | 174.8 | |
| 0.34 | 2.63 | 0.30 | 2.32 | -8.74 | 98.94 | -55.99 | 98.32 | 0.8302 | 686.0 | 493.4 | |
| 4.25 | -25.00 | 3.71 | -25.00 | -5.40 | 99.35 | -55.58 | 94.29 | 0.8258 | -739.8 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.79 | -6.25 | 99.22 | -55.71 | 95.32 | 0.8271 | 48.0 | -39.5 | |
| 3.99 | -21.00 | 3.60 | -21.00 | -10.19 | 98.19 | -56.74 | 100.03 | 0.8379 | 454.2 | 999999 | |
| 6.03 | -25.00 | 5.30 | -25.00 | -5.71 | 99.09 | -55.84 | 94.67 | 0.8283 | 440.6 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.88 | -12.28 | 97.43 | -57.50 | 102.46 | 0.8462 | -364.0 | -306.1 | |
| 0.00 | 1.95 | 0.00 | 1.75 | -8.94 | 98.29 | -56.63 | 98.54 | 0.8365 | 342.0 | 316.3 | |
| 0.00 | 0.51 | 0.00 | 0.45 | -7.38 | 98.64 | -56.29 | 96.68 | 0.8328 | 166.0 | 158.7 | |
| 8.24 | -21.00 | 7.50 | -21.00 | -10.29 | 97.83 | -57.10 | 100.13 | 0.8414 | 288.7 | 999999 | |
| 1.95 | 36.53 | 1.73 | 32.85 | -6.29 | 98.73 | -56.20 | 95.36 | 0.8318 | 4.5 | -492.3 | |
| 0.00 | 2.72 | 0.00 | 2.43 | -5.98 | 98.51 | -56.42 | 94.99 | 0.8339 | 129.0 | 90.4 | |
| 0.00 | 1.44 | 0.00 | 1.31 | -8.01 | 98.02 | -56.91 | 97.41 | 0.8388 | 312.0 | 307.0 | |
| 0.00 | 1.70 | 0.00 | 1.52 | -5.59 | 98.41 | -56.52 | 94.52 | 0.8349 | -386.0 | -148.9 | |
| 0.00 | 0.85 | 0.00 | 0.76 | -5.74 | 98.39 | -56.54 | 94.70 | 0.8351 | 253.0 | 158.1 | |
| 1.44 | -39.00 | 1.31 | -39.00 | -7.00 | 98.01 | -56.92 | 96.20 | 0.8388 | -562.2 | 999999 | |
| 3.23 | -39.00 | 2.92 | -39.00 | -6.79 | 97.99 | -56.94 | 95.95 | 0.8389 | -866.1 | 999999 | |
| 1.70 | 10.79 | 1.66 | 10.59 | -13.76 | 95.58 | -59.35 | 104.04 | 0.8634 | 625.3 | 358.2 | |
| 4.50 | -46.00 | 4.44 | -46.00 | -13.80 | 95.20 | -59.73 | 104.06 | 0.8667 | 408.1 | 999999 | |
| 0.00 | 4.84 | 0.00 | 4.46 | -6.49 | 97.33 | -57.60 | 95.59 | 0.8451 | -476.0 | -495.6 | |
| 0.59 | 8.67 | 0.57 | 8.30 | -9.97 | 96.10 | -58.83 | 99.66 | 0.8569 | 366.6 | 89.6 | |
| 0.34 | -49.00 | 0.32 | -49.00 | -9.82 | 96.09 | -58.84 | 99.49 | 0.8570 | 430.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.23 | -10.28 | 95.71 | -59.22 | 100.01 | 0.8604 | 140.0 | 162.5 | |
| 6.12 | 46.98 | 5.72 | 44.42 | -5.16 | 96.76 | -58.17 | 94.02 | 0.8504 | 328.9 | -55.6 | |
| 0.00 | 0.59 | 0.00 | 0.57 | -9.27 | 95.89 | -59.04 | 98.84 | 0.8586 | 260.0 | 175.6 | |
| 0.00 | 0.59 | 0.00 | 0.56 | -6.92 | 96.40 | -58.53 | 96.09 | 0.8537 | -470.0 | -400.4 | |
| 0.85 | -52.00 | 0.80 | -52.00 | -5.61 | 96.41 | -58.52 | 94.56 | 0.8536 | 201.2 | 999999 | |
| 1.02 | 2.55 | 0.98 | 2.44 | -7.99 | 95.87 | -59.06 | 97.34 | 0.8585 | 92.7 | 20.4 | |
| 0.00 | 1.95 | 0.00 | 1.87 | -7.31 | 96.02 | -58.90 | 96.56 | 0.8570 | 180.0 | 95.0 | |
| 0.00 | 0.76 | 0.00 | 0.74 | -8.93 | 95.63 | -59.30 | 98.44 | 0.8608 | 239.0 | 183.8 | |
| 0.34 | 1.53 | 0.33 | 1.48 | -9.34 | 95.46 | -59.47 | 98.91 | 0.8624 | 182.8 | 66.8 | |
| 0.00 | 1.61 | 0.00 | 1.55 | -6.12 | 95.91 | -59.02 | 95.16 | 0.8580 | -379.0 | -365.1 | |
| 0.00 | 0.93 | 0.00 | 0.90 | -7.33 | 95.67 | -59.26 | 96.57 | 0.8602 | -438.0 | -405.0 | |
| 7.39 | -52.00 | 7.07 | -52.00 | -5.38 | 95.98 | -58.95 | 94.30 | 0.8574 | -336.5 | 999999 | |
| 1.27 | 144.67 | 1.24 | 146.32 | -6.98 | 95.33 | -59.60 | 96.16 | 0.8631 | -764.8 | -335.2 | |
| 1.19 | 4.67 | 1.16 | 4.58 | -7.60 | 95.14 | -59.79 | 96.88 | 0.8649 | -227.6 | -259.1 | |
| 0.00 | 2.29 | 0.00 | 2.22 | -5.75 | 95.51 | -59.42 | 94.73 | 0.8616 | -502.0 | -400.4 | |
| 2.46 | 4.33 | 2.44 | 4.29 | -8.15 | 94.82 | -60.11 | 97.51 | 0.8677 | -551.7 | -529.2 | |
| 1.36 | 4.25 | 1.33 | 4.15 | -5.58 | 95.19 | -59.74 | 94.54 | 0.8644 | -422.2 | -386.4 | |
| 0.00 | 3.65 | 0.00 | 3.63 | -7.63 | 94.65 | -60.28 | 96.91 | 0.8691 | -450.0 | -431.8 | |
| 10.28 | -63.00 | 10.19 | -63.00 | -6.89 | 94.70 | -60.23 | 96.06 | 0.8687 | -788.0 | 999999 | |
| 0.68 | 40.78 | 0.69 | 41.57 | -8.83 | 94.21 | -60.71 | 98.28 | 0.8730 | 173.9 | -376.1 | |
| 0.42 | 1.27 | 0.47 | 1.40 | -14.32 | 91.68 | -63.25 | 104.38 | 0.8951 | -369.8 | -365.5 | |
| 0.00 | 0.85 | 0.00 | 0.85 | -5.64 | 94.58 | -60.35 | 94.61 | 0.8697 | -455.0 | -385.5 | |
| 1.44 | -63.00 | 1.45 | -63.00 | -7.19 | 94.20 | -60.73 | 96.40 | 0.8729 | -583.5 | 999999 | |
| 2.46 | -70.00 | 2.50 | -70.00 | -8.02 | 94.00 | -60.93 | 97.34 | 0.8746 | -601.8 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.93 | -5.81 | 94.49 | -60.44 | 94.81 | 0.8705 | -474.0 | -434.9 | |
| 7.90 | -70.00 | 8.08 | -70.00 | -8.63 | 93.71 | -61.22 | 98.04 | 0.8771 | -584.0 | 999999 | |
| 1.10 | -70.00 | 1.12 | -70.00 | -7.77 | 93.88 | -61.05 | 97.06 | 0.8756 | -675.2 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.62 | -9.68 | 93.33 | -61.60 | 99.23 | 0.8804 | -328.0 | -363.3 | |
| 6.71 | -63.00 | 6.81 | -63.00 | -6.92 | 94.02 | -60.91 | 96.08 | 0.8744 | -559.7 | 999999 | |
| 9.17 | 70.08 | 9.75 | 74.35 | -10.93 | 92.58 | -62.35 | 100.62 | 0.8868 | -921.9 | -536.6 | |
| 0.00 | 1.44 | 0.00 | 1.53 | -10.04 | 92.70 | -62.23 | 99.62 | 0.8856 | -613.0 | -531.7 | |
| 7.31 | -63.00 | 7.49 | -63.00 | -6.19 | 93.68 | -61.25 | 95.25 | 0.8773 | -692.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.74 | -12.10 | 91.85 | -63.08 | 101.90 | 0.8929 | -576.0 | -572.8 | |
| 4.25 | 9.77 | 4.44 | 10.23 | -8.68 | 93.00 | -61.93 | 98.08 | 0.8830 | -713.7 | -591.5 | |
| 0.00 | 0.76 | 0.00 | 0.83 | -11.68 | 91.95 | -62.98 | 101.44 | 0.8920 | -558.0 | -566.6 | |
| 0.00 | 1.10 | 0.00 | 1.16 | -9.09 | 92.82 | -62.11 | 98.54 | 0.8845 | -690.0 | -565.5 | |
| 2.04 | -63.00 | 2.11 | -63.00 | -6.85 | 93.35 | -61.58 | 96.01 | 0.8800 | -419.8 | 999999 | |
| 4.50 | 110.69 | 5.07 | 125.82 | -13.44 | 90.95 | -63.98 | 103.35 | 0.9002 | -855.5 | -334.9 | |
| 1.70 | -63.00 | 1.76 | -63.00 | -6.59 | 93.34 | -61.58 | 95.71 | 0.8801 | -373.0 | 999999 | |
| 0.34 | -84.00 | 0.36 | -84.00 | -8.79 | 92.71 | -62.21 | 98.20 | 0.8853 | -580.2 | 999999 | |
| 0.51 | 2.38 | 0.54 | 2.54 | -9.43 | 92.38 | -62.54 | 98.91 | 0.8880 | -618.3 | -516.7 | |
| 0.00 | 1.19 | 0.00 | 1.31 | -11.60 | 91.51 | -63.41 | 101.33 | 0.8953 | -541.0 | -473.1 | |
| 0.00 | 1.10 | 0.00 | 1.19 | -10.10 | 92.09 | -62.84 | 99.66 | 0.8905 | -566.0 | -524.5 | |
| 2.55 | -88.00 | 2.89 | -88.00 | -13.07 | 90.78 | -64.15 | 102.93 | 0.9013 | -810.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.45 | -8.66 | 92.49 | -62.44 | 98.05 | 0.8871 | -342.0 | -286.3 | |
| 0.00 | 3.82 | 0.00 | 4.05 | -8.36 | 92.58 | -62.35 | 97.72 | 0.8863 | -205.0 | -177.1 | |
| 0.00 | 1.10 | 0.00 | 1.24 | -12.50 | 90.98 | -63.95 | 102.31 | 0.8996 | -705.0 | -634.9 | |
| 0.00 | 0.85 | 0.00 | 0.92 | -9.71 | 92.09 | -62.84 | 99.23 | 0.8904 | -557.0 | -538.3 | |
| 4.08 | -88.00 | 4.67 | -88.00 | -13.32 | 90.51 | -64.41 | 103.20 | 0.9033 | -563.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.54 | -8.15 | 92.51 | -62.42 | 97.48 | 0.8869 | -282.0 | -246.4 | |
| 0.00 | 7.56 | 0.00 | 8.49 | -12.23 | 90.97 | -63.96 | 102.01 | 0.8996 | -726.0 | -584.3 | |
| 0.00 | 1.27 | 0.00 | 1.42 | -11.70 | 91.20 | -63.73 | 101.43 | 0.8977 | -528.0 | -490.4 | |
| 0.93 | -88.00 | 1.07 | -88.00 | -12.75 | 90.44 | -64.48 | 102.56 | 0.9036 | -549.3 | 999999 | |
| 3.91 | 11.72 | 4.26 | 12.81 | -9.10 | 91.83 | -63.10 | 98.53 | 0.8923 | -633.3 | -501.7 | |
| 0.00 | 0.34 | 0.00 | 0.39 | -12.21 | 90.62 | -64.31 | 101.98 | 0.9022 | -458.0 | -504.0 | |
| 0.00 | 1.19 | 0.00 | 1.31 | -9.86 | 91.51 | -63.42 | 99.38 | 0.8950 | -610.0 | -527.8 | |
| 1.44 | -88.00 | 1.68 | -88.00 | -13.06 | 90.08 | -64.85 | 102.89 | 0.9064 | -381.1 | 999999 | |
| 2.38 | -104.00 | 2.61 | -104.00 | -9.36 | 91.61 | -63.32 | 98.82 | 0.8941 | -619.6 | 999999 | |
| 1.95 | 10.36 | 2.23 | 11.80 | -11.97 | 90.52 | -64.41 | 101.70 | 0.9028 | -654.9 | -607.5 | |
| 0.59 | 1.78 | 0.68 | 2.05 | -12.35 | 90.35 | -64.58 | 102.12 | 0.9042 | -462.7 | -420.9 | |
| 0.00 | 18.09 | 0.00 | 19.74 | -8.50 | 91.75 | -63.18 | 97.86 | 0.8929 | -217.0 | -215.0 | |
| 0.00 | 0.68 | 0.00 | 0.76 | -10.64 | 90.94 | -63.99 | 100.24 | 0.8994 | -557.0 | -509.0 | |
| 0.00 | 1.02 | 0.00 | 1.15 | -10.25 | 90.95 | -63.97 | 99.80 | 0.8992 | -487.0 | -479.0 | |
| 1.02 | -88.00 | 1.21 | -88.00 | -13.21 | 89.56 | -65.37 | 103.03 | 0.9101 | -98.4 | 999999 | |
| 1.19 | 5.78 | 1.36 | 6.59 | -11.30 | 90.46 | -64.47 | 100.96 | 0.9031 | -732.6 | -614.1 | |
| 0.00 | 2.80 | 0.00 | 3.12 | -9.25 | 91.24 | -63.69 | 98.69 | 0.8969 | -311.0 | -267.2 | |
| 0.00 | 1.19 | 0.00 | 1.32 | -8.92 | 91.28 | -63.65 | 98.33 | 0.8966 | -367.0 | -288.6 | |
| 0.00 | 1.27 | 0.00 | 1.43 | -9.53 | 91.01 | -63.92 | 99.01 | 0.8987 | -172.0 | -212.3 | |
| 0.00 | 0.76 | 0.00 | 0.93 | -14.06 | 88.95 | -65.98 | 103.93 | 0.9147 | -259.0 | -218.4 | |
| 0.59 | 1.61 | 0.70 | 1.90 | -12.53 | 89.69 | -65.24 | 102.28 | 0.9090 | -198.1 | -112.4 | |
| 0.00 | 0.34 | 0.00 | 0.38 | -9.26 | 90.96 | -63.97 | 98.70 | 0.8990 | -233.0 | -206.0 | |
| 0.00 | 3.99 | 0.00 | 4.66 | -11.78 | 89.89 | -65.04 | 101.47 | 0.9074 | -604.0 | -499.8 | |
| 1.02 | 3.40 | 1.20 | 3.97 | -11.38 | 89.71 | -65.22 | 101.02 | 0.9086 | -530.8 | -517.5 | |
| 0.00 | 2.80 | 0.00 | 3.32 | -11.52 | 89.50 | -65.43 | 101.17 | 0.9101 | -569.0 | -448.2 | |
| 3.82 | 14.27 | 4.48 | 16.82 | -10.79 | 89.75 | -65.18 | 100.37 | 0.9082 | -549.4 | -348.7 | |
| 0.00 | 2.89 | 0.00 | 3.27 | -8.18 | 90.69 | -64.24 | 97.49 | 0.9010 | -28.0 | -40.1 | |
| 5.44 | 7.99 | 6.51 | 9.57 | -11.69 | 89.21 | -65.72 | 101.34 | 0.9122 | -281.8 | -111.9 | |
| 3.57 | -125.00 | 4.25 | -125.00 | -10.61 | 89.31 | -65.61 | 100.17 | 0.9113 | -275.4 | 999999 | |
| 0.68 | 1.53 | 0.82 | 1.85 | -11.31 | 88.93 | -66.00 | 100.92 | 0.9141 | -110.1 | -66.9 | |
| 0.00 | 1.70 | 0.00 | 1.99 | -8.90 | 89.68 | -65.25 | 98.28 | 0.9085 | -304.0 | -214.6 | |
| 0.51 | 2.29 | 0.61 | 2.73 | -9.92 | 89.23 | -65.70 | 99.40 | 0.9118 | -244.5 | -212.9 | |
| 0.00 | 0.93 | 0.00 | 1.11 | -9.44 | 89.27 | -65.66 | 98.88 | 0.9115 | -177.0 | -134.3 | |
| 5.78 | 29.90 | 7.04 | 36.87 | -10.31 | 88.70 | -66.23 | 99.82 | 0.9155 | -283.0 | 190.0 | |
| 4.25 | 13.85 | 5.05 | 16.45 | -8.55 | 89.29 | -65.64 | 97.90 | 0.9112 | -126.8 | 36.8 | |
| 0.93 | -133.00 | 1.16 | -133.00 | -10.29 | 88.33 | -66.60 | 99.79 | 0.9181 | 151.4 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.76 | -10.40 | 87.58 | -67.35 | 99.90 | 0.9231 | 107.0 | 80.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
