SDO HMI 2014-01-04 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.78 | 61.53 | 10.92 | 36.99 | -12.93 | 116.75 | -33.21 | 108.16 | 0.5636 | 335.3 | 156.5 | |
|
previous
or next observation for the same group /

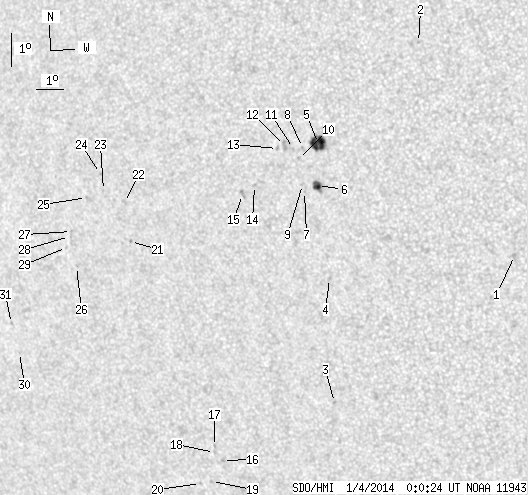

back to the solar disc SDO HMI 2014-01-04 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.08 | -14.61 | 125.42 | -24.54 | 116.50 | 0.4510 | 864.0 | 664.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -8.19 | 122.84 | -27.12 | 101.37 | 0.4621 | 776.0 | 599.8 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -18.89 | 118.43 | -31.53 | 119.15 | 0.5687 | 840.0 | 651.8 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -15.13 | 118.96 | -31.00 | 113.11 | 0.5427 | 827.0 | 617.6 | |
| 14.36 | 17.92 | 8.34 | 10.41 | -11.09 | 119.14 | -30.82 | 105.84 | 0.5247 | 998.1 | 691.1 | |
| 4.42 | 7.48 | 2.58 | 4.36 | -12.33 | 118.95 | -31.01 | 108.08 | 0.5316 | 995.9 | 752.5 | |
| 0.00 | 0.42 | 0.00 | 0.25 | -12.50 | 118.47 | -31.49 | 108.17 | 0.5389 | 628.0 | 567.0 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -11.19 | 118.57 | -31.39 | 105.81 | 0.5332 | 578.0 | 509.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -12.29 | 118.43 | -31.54 | 107.77 | 0.5388 | 410.0 | 362.9 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -11.51 | 118.39 | -31.57 | 106.33 | 0.5368 | 582.0 | 409.7 | |
| 0.00 | 0.93 | 0.00 | 0.55 | -11.21 | 118.25 | -31.71 | 105.73 | 0.5379 | 577.0 | 505.0 | |
| 0.00 | 4.33 | 0.00 | 2.55 | -11.11 | 117.94 | -32.02 | 105.44 | 0.5419 | 601.0 | 564.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -11.19 | 117.68 | -32.28 | 105.49 | 0.5458 | 621.0 | 527.5 | |
| 0.00 | 1.53 | 0.00 | 0.91 | -12.26 | 116.71 | -33.25 | 107.04 | 0.5626 | -878.0 | -690.8 | |
| 0.00 | 3.14 | 0.00 | 1.89 | -12.52 | 116.24 | -33.72 | 107.31 | 0.5699 | -747.0 | -668.2 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -20.53 | 113.80 | -36.16 | 118.96 | 0.6339 | 827.0 | 735.4 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -20.09 | 113.61 | -36.35 | 118.21 | 0.6340 | 577.0 | 425.3 | |
| 0.00 | 1.10 | 0.00 | 0.71 | -20.27 | 113.56 | -36.40 | 118.46 | 0.6355 | 562.0 | 442.8 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -21.16 | 113.19 | -36.77 | 119.56 | 0.6441 | 519.0 | 518.2 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -21.20 | 112.74 | -37.22 | 119.39 | 0.6496 | 519.0 | 387.3 | |
| 0.00 | 1.10 | 0.00 | 0.70 | -13.78 | 111.83 | -38.14 | 107.84 | 0.6324 | -703.0 | -522.0 | |
| 0.00 | 1.95 | 0.00 | 1.24 | -12.60 | 111.81 | -38.15 | 106.01 | 0.6295 | -657.0 | -422.3 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -12.22 | 111.07 | -38.89 | 105.20 | 0.6382 | -597.0 | -535.6 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -11.71 | 111.04 | -38.92 | 104.41 | 0.6375 | -555.0 | -525.0 | |
| 0.00 | 0.93 | 0.00 | 0.61 | -12.40 | 110.37 | -39.59 | 105.31 | 0.6477 | -582.0 | -450.1 | |
| 0.00 | 0.93 | 0.00 | 0.62 | -14.44 | 109.56 | -40.40 | 108.16 | 0.6629 | -722.0 | -637.3 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -13.39 | 109.58 | -40.38 | 106.60 | 0.6600 | -704.0 | -572.3 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -13.54 | 109.47 | -40.49 | 106.79 | 0.6617 | -333.0 | -401.4 | |
| 0.00 | 0.93 | 0.00 | 0.62 | -13.86 | 109.29 | -40.68 | 107.22 | 0.6648 | -318.0 | -286.0 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -16.94 | 106.57 | -43.39 | 110.84 | 0.7056 | -633.0 | -572.1 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -16.05 | 106.48 | -43.48 | 109.58 | 0.7042 | -389.0 | -411.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
