SDO HMI 2014-01-04 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.53 | 52.92 | 8.19 | 30.81 | -13.01 | 116.48 | -30.20 | 109.52 | 0.5221 | 336.2 | 234.7 | |
|
previous
or next observation for the same group /

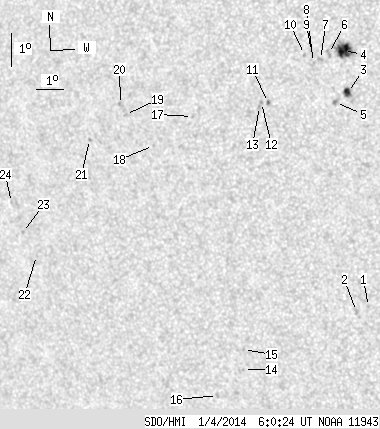

back to the solar disc SDO HMI 2014-01-04 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.49 | -18.73 | 118.91 | -27.77 | 121.55 | 0.5200 | 711.0 | 525.7 | |
| 0.00 | 1.87 | 0.00 | 1.09 | -18.87 | 118.46 | -28.22 | 121.43 | 0.5266 | 848.0 | 672.6 | |
| 3.23 | 5.10 | 1.82 | 2.88 | -12.26 | 119.13 | -27.55 | 109.58 | 0.4817 | 1056.5 | 783.1 | |
| 10.96 | 17.76 | 6.17 | 9.99 | -11.01 | 119.13 | -27.55 | 107.04 | 0.4768 | 1075.4 | 733.7 | |
| 0.00 | 2.29 | 0.00 | 1.30 | -12.55 | 118.69 | -27.99 | 109.91 | 0.4893 | 846.0 | 677.1 | |
| 0.00 | 2.97 | 0.00 | 1.68 | -11.09 | 118.62 | -28.07 | 106.95 | 0.4847 | 781.0 | 573.6 | |
| 0.00 | 2.12 | 0.00 | 1.21 | -11.26 | 118.33 | -28.36 | 107.15 | 0.4895 | 754.0 | 506.9 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -11.34 | 118.08 | -28.61 | 107.20 | 0.4934 | 793.0 | 525.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -11.01 | 118.04 | -28.64 | 106.53 | 0.4928 | 784.0 | 635.7 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -11.09 | 117.79 | -28.89 | 106.59 | 0.4967 | 702.0 | 564.3 | |
| 0.34 | 1.53 | 0.20 | 0.89 | -12.48 | 116.38 | -30.30 | 108.61 | 0.5219 | -907.0 | -721.7 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -12.48 | 116.13 | -30.55 | 108.48 | 0.5254 | -876.0 | -708.6 | |
| 0.00 | 1.10 | 0.00 | 0.64 | -12.59 | 116.05 | -30.63 | 108.66 | 0.5270 | -690.0 | -567.8 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -20.52 | 113.99 | -32.69 | 120.95 | 0.5921 | 537.0 | 534.9 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -19.91 | 114.14 | -32.54 | 120.09 | 0.5868 | 775.0 | 552.9 | |
| 0.00 | 2.04 | 0.00 | 1.27 | -21.29 | 112.81 | -33.87 | 121.38 | 0.6105 | 490.0 | 427.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -12.82 | 113.63 | -33.05 | 108.03 | 0.5615 | 542.0 | 387.5 | |
| 0.00 | 0.93 | 0.00 | 0.57 | -13.63 | 112.07 | -34.61 | 108.81 | 0.5854 | -708.0 | -559.2 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -12.67 | 111.19 | -35.49 | 106.89 | 0.5942 | -726.0 | -640.3 | |
| 0.00 | 2.21 | 0.00 | 1.36 | -12.37 | 111.06 | -35.63 | 106.35 | 0.5952 | -672.0 | -531.2 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -13.37 | 109.72 | -36.96 | 107.54 | 0.6158 | -543.0 | -454.6 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -16.78 | 106.91 | -39.77 | 111.77 | 0.6618 | -365.0 | -336.9 | |
| 0.00 | 1.19 | 0.00 | 0.79 | -16.06 | 106.53 | -40.15 | 110.59 | 0.6643 | -586.0 | -385.9 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -15.15 | 106.31 | -40.38 | 109.16 | 0.6643 | -717.0 | -620.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
