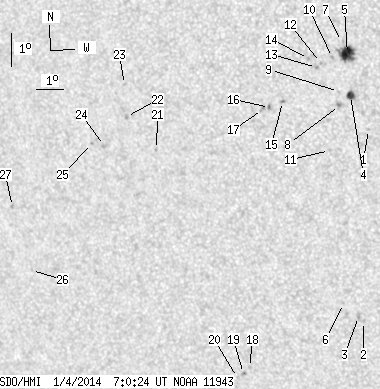

SDO HMI 2014-01-04 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.57 | 60.63 | 9.29 | 35.08 | -13.18 | 116.63 | -29.51 | 110.22 | 0.5135 | 374.4 | 150.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-04 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.48 | -13.28 | 119.63 | -26.51 | 112.25 | 0.4714 | 703.0 | 574.7 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -19.07 | 118.58 | -27.55 | 122.32 | 0.5194 | 720.0 | 618.1 | |
| 0.00 | 3.06 | 0.00 | 1.77 | -18.92 | 118.44 | -27.70 | 121.93 | 0.5202 | 847.0 | 664.7 | |
| 3.74 | 5.35 | 2.10 | 3.01 | -12.25 | 119.14 | -27.00 | 109.86 | 0.4737 | 1041.8 | 766.5 | |
| 12.83 | 19.63 | 7.19 | 11.00 | -11.00 | 119.17 | -26.97 | 107.30 | 0.4682 | 1076.9 | 702.0 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -18.51 | 117.98 | -28.16 | 120.85 | 0.5233 | 606.0 | 456.2 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -10.64 | 119.00 | -27.14 | 106.46 | 0.4694 | 333.0 | 417.2 | |
| 0.00 | 2.55 | 0.00 | 1.44 | -12.54 | 118.73 | -27.41 | 110.21 | 0.4808 | 887.0 | 679.0 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -12.12 | 118.74 | -27.39 | 109.37 | 0.4788 | 555.0 | 454.8 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -11.10 | 118.65 | -27.49 | 107.25 | 0.4762 | 712.0 | 496.9 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -13.87 | 118.22 | -27.92 | 112.53 | 0.4941 | 476.0 | 322.9 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -11.24 | 118.23 | -27.91 | 107.33 | 0.4829 | 668.0 | 602.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -11.39 | 118.08 | -28.06 | 107.55 | 0.4857 | 755.0 | 609.2 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -11.11 | 117.83 | -28.31 | 106.88 | 0.4882 | 718.0 | 576.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -12.36 | 116.79 | -29.35 | 108.84 | 0.5079 | -856.0 | -698.1 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -12.53 | 116.32 | -29.82 | 108.92 | 0.5152 | -862.0 | -762.2 | |
| 0.00 | 2.55 | 0.00 | 1.48 | -12.58 | 116.07 | -30.07 | 108.90 | 0.5190 | -807.0 | -676.2 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -20.36 | 114.20 | -31.94 | 121.19 | 0.5820 | 777.0 | 631.4 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -20.54 | 113.93 | -32.21 | 121.29 | 0.5863 | 841.0 | 711.9 | |
| 0.00 | 0.93 | 0.00 | 0.57 | -20.66 | 113.68 | -32.46 | 121.30 | 0.5900 | 556.0 | 432.0 | |
| 0.00 | 1.10 | 0.00 | 0.67 | -13.66 | 112.11 | -34.02 | 109.07 | 0.5775 | -667.0 | -580.2 | |
| 0.00 | 2.29 | 0.00 | 1.40 | -12.63 | 111.18 | -34.96 | 107.00 | 0.5869 | -792.0 | -651.0 | |
| 0.00 | 1.10 | 0.00 | 0.67 | -11.68 | 111.25 | -34.89 | 105.42 | 0.5833 | -723.0 | -542.7 | |
| 0.00 | 2.72 | 0.00 | 1.68 | -13.47 | 110.22 | -35.92 | 108.05 | 0.6023 | -728.0 | -587.7 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -13.39 | 109.74 | -36.40 | 107.76 | 0.6084 | -601.0 | -517.0 | |
| 0.00 | 0.93 | 0.00 | 0.61 | -17.12 | 106.60 | -39.53 | 112.36 | 0.6601 | -565.0 | -394.9 | |
| 0.00 | 1.53 | 0.00 | 1.00 | -15.17 | 106.32 | -39.82 | 109.37 | 0.6575 | -645.0 | -584.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
