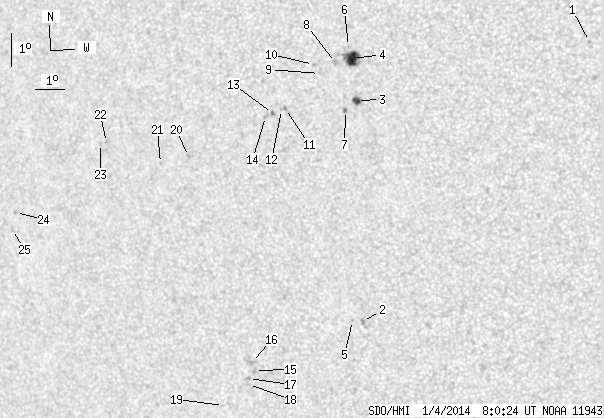

SDO HMI 2014-01-04 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.04 | 61.64 | 8.41 | 35.62 | -13.70 | 116.49 | -29.10 | 111.28 | 0.5098 | 336.5 | 236.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-04 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.58 | -10.67 | 126.90 | -18.69 | 112.36 | 0.3420 | 902.0 | 728.0 | |
| 0.00 | 2.29 | 0.00 | 1.32 | -18.91 | 118.42 | -27.17 | 122.34 | 0.5134 | 812.0 | 708.8 | |
| 3.57 | 5.27 | 2.00 | 2.95 | -12.24 | 119.17 | -26.43 | 110.17 | 0.4653 | 1043.5 | 746.8 | |
| 10.71 | 20.65 | 5.97 | 11.51 | -10.99 | 119.16 | -26.43 | 107.55 | 0.4602 | 1079.3 | 689.3 | |
| 0.00 | 0.93 | 0.00 | 0.54 | -18.87 | 118.08 | -27.52 | 121.99 | 0.5175 | 643.0 | 478.0 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -10.63 | 119.06 | -26.53 | 106.73 | 0.4603 | 542.0 | 421.9 | |
| 0.42 | 1.36 | 0.24 | 0.76 | -12.53 | 118.76 | -26.83 | 110.52 | 0.4724 | 850.0 | 725.0 | |
| 0.00 | 3.40 | 0.00 | 1.90 | -11.09 | 118.58 | -27.01 | 107.46 | 0.4692 | 774.0 | 593.2 | |
| 0.00 | 0.76 | 0.00 | 0.43 | -11.41 | 118.01 | -27.59 | 107.81 | 0.4788 | 524.0 | 448.4 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -11.13 | 117.83 | -27.76 | 107.17 | 0.4804 | 622.0 | 507.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -12.41 | 116.72 | -28.87 | 109.17 | 0.5012 | -734.0 | -622.2 | |
| 0.00 | 0.93 | 0.00 | 0.54 | -12.44 | 116.58 | -29.01 | 109.14 | 0.5033 | -633.0 | -534.7 | |
| 0.34 | 1.44 | 0.20 | 0.83 | -12.55 | 116.26 | -29.34 | 109.19 | 0.5084 | -931.8 | -791.5 | |
| 0.00 | 2.29 | 0.00 | 1.32 | -12.63 | 116.00 | -29.59 | 109.22 | 0.5123 | -675.0 | -617.3 | |
| 0.00 | 2.46 | 0.00 | 1.49 | -20.30 | 114.26 | -31.33 | 121.49 | 0.5742 | 688.0 | 480.3 | |
| 0.00 | 3.65 | 0.00 | 2.21 | -20.05 | 114.20 | -31.39 | 121.06 | 0.5734 | 596.0 | 437.0 | |
| 0.00 | 1.70 | 0.00 | 1.03 | -20.54 | 113.98 | -31.61 | 121.68 | 0.5790 | 889.0 | 744.8 | |
| 0.00 | 0.76 | 0.00 | 0.46 | -20.72 | 113.94 | -31.65 | 121.94 | 0.5806 | 565.0 | 483.7 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -21.34 | 112.85 | -32.74 | 122.16 | 0.5973 | 632.0 | 555.9 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -13.74 | 113.12 | -32.47 | 109.88 | 0.5568 | -884.0 | -706.1 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -13.92 | 112.07 | -33.52 | 109.72 | 0.5716 | -719.0 | -548.5 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -13.23 | 110.20 | -35.39 | 107.83 | 0.5945 | -766.0 | -673.8 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -13.25 | 109.97 | -35.62 | 107.78 | 0.5976 | -562.0 | -472.2 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -15.20 | 106.32 | -39.27 | 109.59 | 0.6507 | -687.0 | -650.5 | |
| 0.00 | 2.80 | 0.00 | 1.83 | -15.70 | 106.09 | -39.50 | 110.26 | 0.6551 | -425.0 | -271.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
