SDO HMI 2014-01-04 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.94 | 67.82 | 8.28 | 38.69 | -13.56 | 116.26 | -27.70 | 111.95 | 0.4893 | 357.3 | 211.1 | |
|
previous
or next observation for the same group /

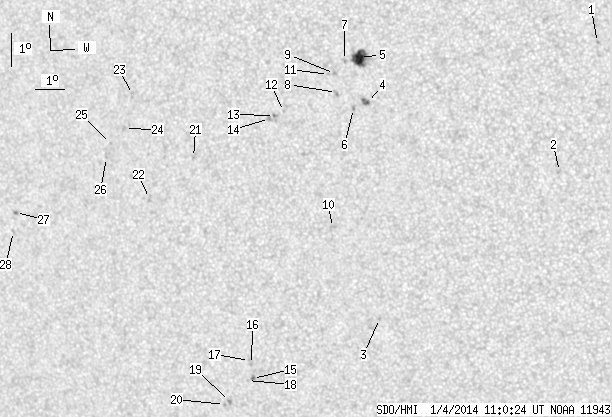

back to the solar disc SDO HMI 2014-01-04 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.49 | -10.67 | 126.85 | -17.11 | 114.04 | 0.3180 | 853.0 | 746.5 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -14.50 | 125.36 | -18.60 | 122.32 | 0.3670 | 836.0 | 682.2 | |
| 0.00 | 1.10 | 0.00 | 0.63 | -18.81 | 118.85 | -25.10 | 124.00 | 0.4864 | 838.0 | 676.7 | |
| 0.93 | 4.42 | 0.52 | 2.44 | -12.29 | 119.30 | -24.65 | 111.40 | 0.4396 | 1075.5 | 896.6 | |
| 13.17 | 20.65 | 7.24 | 11.35 | -10.95 | 119.17 | -24.79 | 108.35 | 0.4356 | 1056.1 | 678.7 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -12.46 | 118.82 | -25.14 | 111.43 | 0.4475 | 836.0 | 639.0 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -11.02 | 118.66 | -25.29 | 108.23 | 0.4434 | 794.0 | 567.1 | |
| 0.00 | 2.21 | 0.00 | 1.23 | -11.97 | 118.30 | -25.65 | 110.05 | 0.4528 | 793.0 | 595.6 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -11.40 | 118.29 | -25.66 | 108.83 | 0.4505 | 879.0 | 723.8 | |
| 0.00 | 3.40 | 0.00 | 1.92 | -16.01 | 117.67 | -26.29 | 117.76 | 0.4831 | 600.0 | 518.0 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -11.42 | 118.09 | -25.87 | 108.77 | 0.4536 | 659.0 | 568.3 | |
| 0.00 | 0.93 | 0.00 | 0.53 | -12.48 | 116.46 | -27.50 | 110.03 | 0.4819 | -847.0 | -634.8 | |
| 0.00 | 1.10 | 0.00 | 0.63 | -12.60 | 116.13 | -27.82 | 110.07 | 0.4869 | -881.0 | -763.9 | |
| 0.00 | 3.06 | 0.00 | 1.74 | -12.68 | 115.95 | -28.00 | 110.13 | 0.4899 | -733.0 | -591.8 | |
| 0.42 | 1.61 | 0.25 | 0.96 | -20.53 | 114.04 | -29.92 | 122.87 | 0.5583 | 863.2 | 782.0 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -20.09 | 114.10 | -29.86 | 122.21 | 0.5548 | 783.0 | 654.3 | |
| 0.00 | 0.93 | 0.00 | 0.56 | -19.97 | 114.05 | -29.91 | 121.97 | 0.5546 | 619.0 | 530.0 | |
| 0.00 | 0.59 | 0.00 | 0.36 | -20.58 | 113.85 | -30.11 | 122.81 | 0.5610 | 613.0 | 474.7 | |
| 0.00 | 2.04 | 0.00 | 1.23 | -21.21 | 113.04 | -30.91 | 123.22 | 0.5747 | 888.0 | 732.9 | |
| 0.00 | 1.10 | 0.00 | 0.67 | -21.30 | 112.84 | -31.12 | 123.20 | 0.5777 | 648.0 | 538.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -13.77 | 113.16 | -30.79 | 110.71 | 0.5337 | -825.0 | -686.0 | |
| 0.00 | 3.06 | 0.00 | 1.83 | -14.95 | 111.40 | -32.56 | 111.90 | 0.5626 | -698.0 | -583.1 | |
| 0.00 | 2.63 | 0.00 | 1.56 | -11.82 | 111.27 | -32.69 | 106.39 | 0.5532 | -558.0 | -537.0 | |
| 0.00 | 2.29 | 0.00 | 1.37 | -12.82 | 110.83 | -33.12 | 107.99 | 0.5624 | -322.0 | -352.7 | |
| 0.00 | 0.93 | 0.00 | 0.56 | -13.25 | 110.26 | -33.70 | 108.50 | 0.5717 | -813.0 | -686.5 | |
| 0.00 | 0.76 | 0.00 | 0.46 | -13.67 | 110.05 | -33.91 | 109.12 | 0.5760 | -587.0 | -514.3 | |
| 0.42 | 1.95 | 0.27 | 1.24 | -15.20 | 106.34 | -37.62 | 110.16 | 0.6298 | -762.0 | -611.6 | |
| 0.00 | 1.78 | 0.00 | 1.14 | -15.76 | 106.13 | -37.82 | 110.96 | 0.6343 | -445.0 | -325.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
