SDO HMI 2014-01-04 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.27 | 48.23 | 7.80 | 27.04 | -13.23 | 116.95 | -25.91 | 112.44 | 0.4624 | 515.2 | 290.9 | |
|
previous
or next observation for the same group /

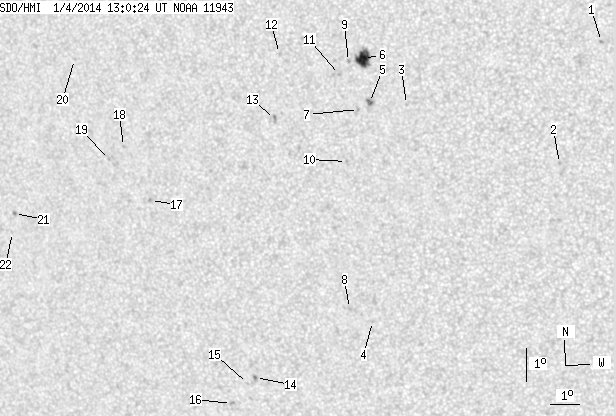

back to the solar disc SDO HMI 2014-01-04 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.79 | -10.60 | 126.82 | -16.04 | 115.14 | 0.3014 | 798.0 | 642.9 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -14.22 | 125.25 | -17.61 | 122.96 | 0.3511 | 936.0 | 756.4 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -12.35 | 120.47 | -22.38 | 113.24 | 0.4066 | 797.0 | 598.4 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -18.86 | 118.54 | -24.32 | 124.86 | 0.4769 | 679.0 | 594.6 | |
| 0.00 | 2.89 | 0.00 | 1.58 | -12.26 | 119.27 | -23.59 | 112.09 | 0.4239 | 1205.0 | 978.1 | |
| 13.85 | 18.35 | 7.55 | 10.00 | -10.95 | 119.19 | -23.67 | 109.05 | 0.4187 | 1052.2 | 680.7 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -12.46 | 118.89 | -23.97 | 112.25 | 0.4305 | 789.0 | 618.2 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -18.45 | 117.82 | -25.04 | 123.40 | 0.4829 | 772.0 | 642.2 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -11.02 | 118.69 | -24.17 | 108.90 | 0.4266 | 769.0 | 544.2 | |
| 0.00 | 0.59 | 0.00 | 0.33 | -14.00 | 118.32 | -24.54 | 115.14 | 0.4470 | 695.0 | 483.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -11.40 | 118.36 | -24.50 | 109.54 | 0.4332 | 858.0 | 752.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -10.73 | 116.43 | -26.43 | 106.97 | 0.4592 | 740.0 | 503.0 | |
| 0.00 | 2.80 | 0.00 | 1.57 | -12.69 | 116.05 | -26.81 | 110.83 | 0.4727 | -827.0 | -684.0 | |
| 0.42 | 2.21 | 0.25 | 1.30 | -20.47 | 114.15 | -28.71 | 123.71 | 0.5431 | 891.0 | 758.0 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -20.65 | 113.83 | -29.03 | 123.74 | 0.5483 | 631.0 | 446.0 | |
| 0.00 | 1.87 | 0.00 | 1.12 | -21.25 | 113.12 | -29.74 | 124.14 | 0.5609 | 913.0 | 733.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -14.98 | 111.41 | -31.45 | 112.53 | 0.5478 | -816.0 | -703.0 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -13.34 | 110.71 | -32.15 | 109.29 | 0.5508 | -730.0 | -555.2 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -13.71 | 110.15 | -32.71 | 109.70 | 0.5599 | -633.0 | -542.1 | |
| 0.00 | 1.10 | 0.00 | 0.66 | -10.69 | 109.31 | -33.54 | 104.11 | 0.5621 | -600.0 | -421.5 | |
| 0.00 | 1.70 | 0.00 | 1.07 | -15.21 | 106.35 | -36.51 | 110.59 | 0.6156 | -794.0 | -694.5 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -15.78 | 106.16 | -36.70 | 111.41 | 0.6201 | -401.0 | -332.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
